JGBP33DEM3CC DOOR & DRAWER PARTS

JGBP33DEM3CC DOOR & DRAWER PARTS

Written by

in

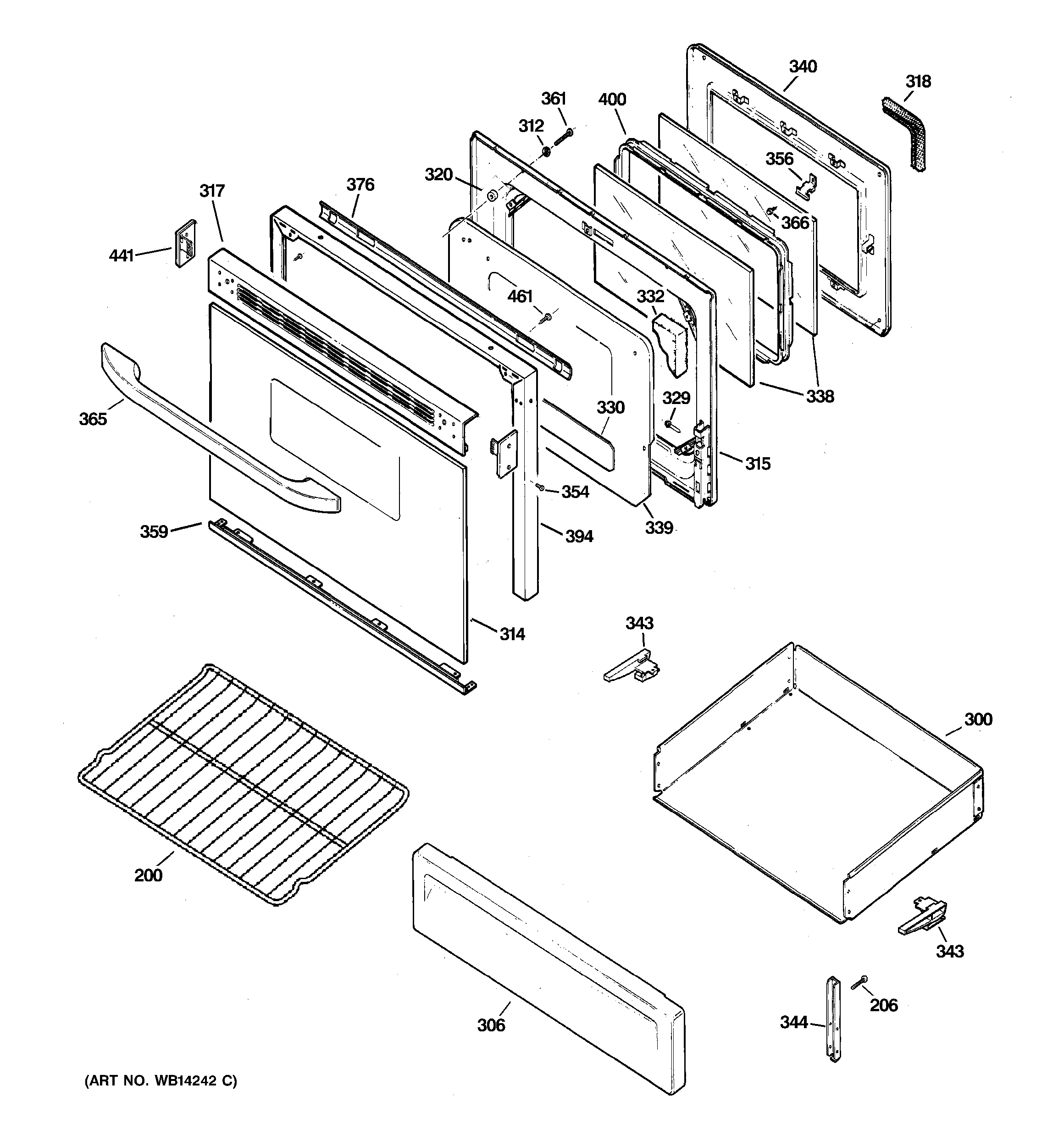

JGBP33DEM3CC DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
206WB01K10091 GE Oven Screw
300GEN WB58K10004
306WB55K10001 GE Oven Drawer Panel (Black)
306GEN WB36K10164
306WB36K10033 GE Oven Drawer Panel (White)
312WB1X119D GE Oven Range Washer
314WB57K10110 GE Oven Glass Door
314GEN WB57K10112
314WB57K10109 GE Oven Glass Door
315GEN WB55K10042
317WB36K10212 GE Top Door Trim (Bisque)
317WB7K403 GE Oven Top Door Trim
317GEN WB07K0400
317WB35K10041 GE Oven Reflector
318GEN WB04K10029
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0025
332GEN WB35K0024
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
354WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
354WB1K66 GE Screw
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
359TRIM BOTTOM ASM
359WB07K10232 GE Oven Bottom Trim Assembly
359WB07K10269 GE Oven Bottom Trim Assembly
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
365WB15T10176 GE Oven Handle (White)
365GEN WB15T10164
365WB15T10161 GE Oven Black Door Handle
366WB1X536 GE Oven Screw
376WB35K23 GE Heater Deflector
394GEN WB07K10103
394GEN WB07K10130
394GEN WB07K10104
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7182
441GEN WB07X7187
441GEN WB07K10129
441GEN WB07K10128
441WB7X7188 GE Oven Left Endcap
441GEN WB07X7181
461WB01K10012 GE Oven Screw 8-22 PL 1HX
