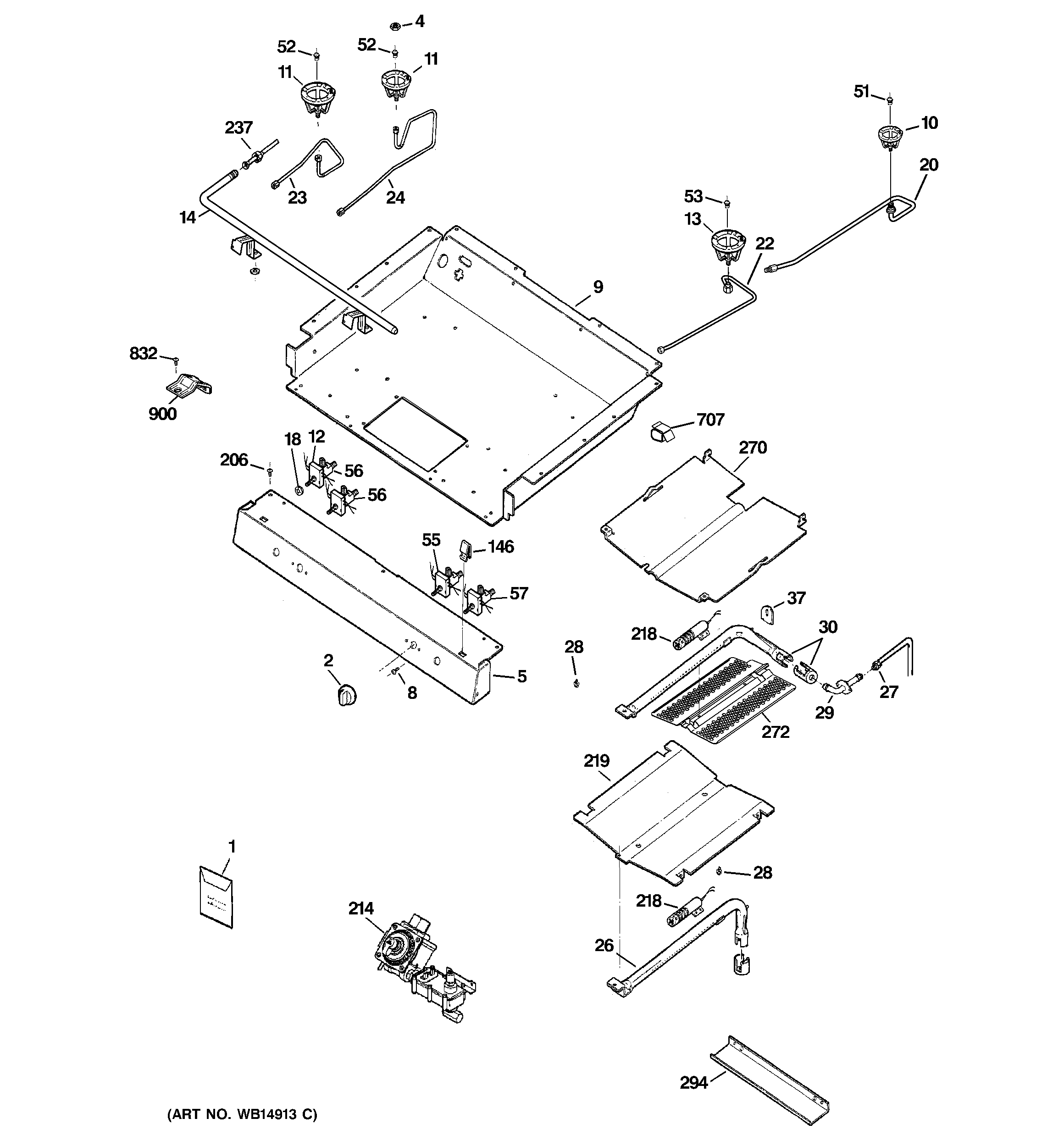

JGBP33DEM6WW GAS & BURNER PARTS

Products

PositionProduct
1GEN 49-85165
1GEN WB28K10558
1GEN 31-21331
1GEN 31-21393
1GEN WB02K0101
2GEN WB03K10225
2WB03K10218 GE Oven Control Knob
2WB03K10216 GE Oven Manifold Knob
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10673
5GEN WB36K10668
5GEN WB36K10674
8WB01K10002 GE Oven Screw 8-32
9WB63K10190 GE Burner Box Assembly
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10074
13WB02K10362 GE Oven CKT Bracket MDM & L
14WB28K10457 GE Oven Manifold Pipe
18WB2K24 GE Oven Valve Cover
20WB28K10187 GE Oven Rear Orifice Holder
22FRONT ORIFICE HOLDER NG
23WB28K10190 GE Oven Left Front Orifice
24WB28K10188 GE Oven Rear Orifice H R 150N 9500
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10067
37WB34K14 GE Igniter Cover
51WB28K10031 GE Oven Orifice
52WB28K10032 GE Oven LP Orifice
53WB28K10023 GE Oven Orifice
55VALVE BURNER 270 RR
56VALVE BURNER 270
57WB21K10099 GE Oven Burner Valve
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10039 GE Oven Valve Control Assembly Nor. D
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237GEN WB28K10587
237WB28X25364 GE Oven Manifold Supply Tube
270WB49K10025 GE Range Deflector
272WB49K10045 GE Broil Shield
294GEN WB63K10040
294WB63K10054 GE Terminal Cover
707WB02K10267 GE Wire Clip
832WB01K10043 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
