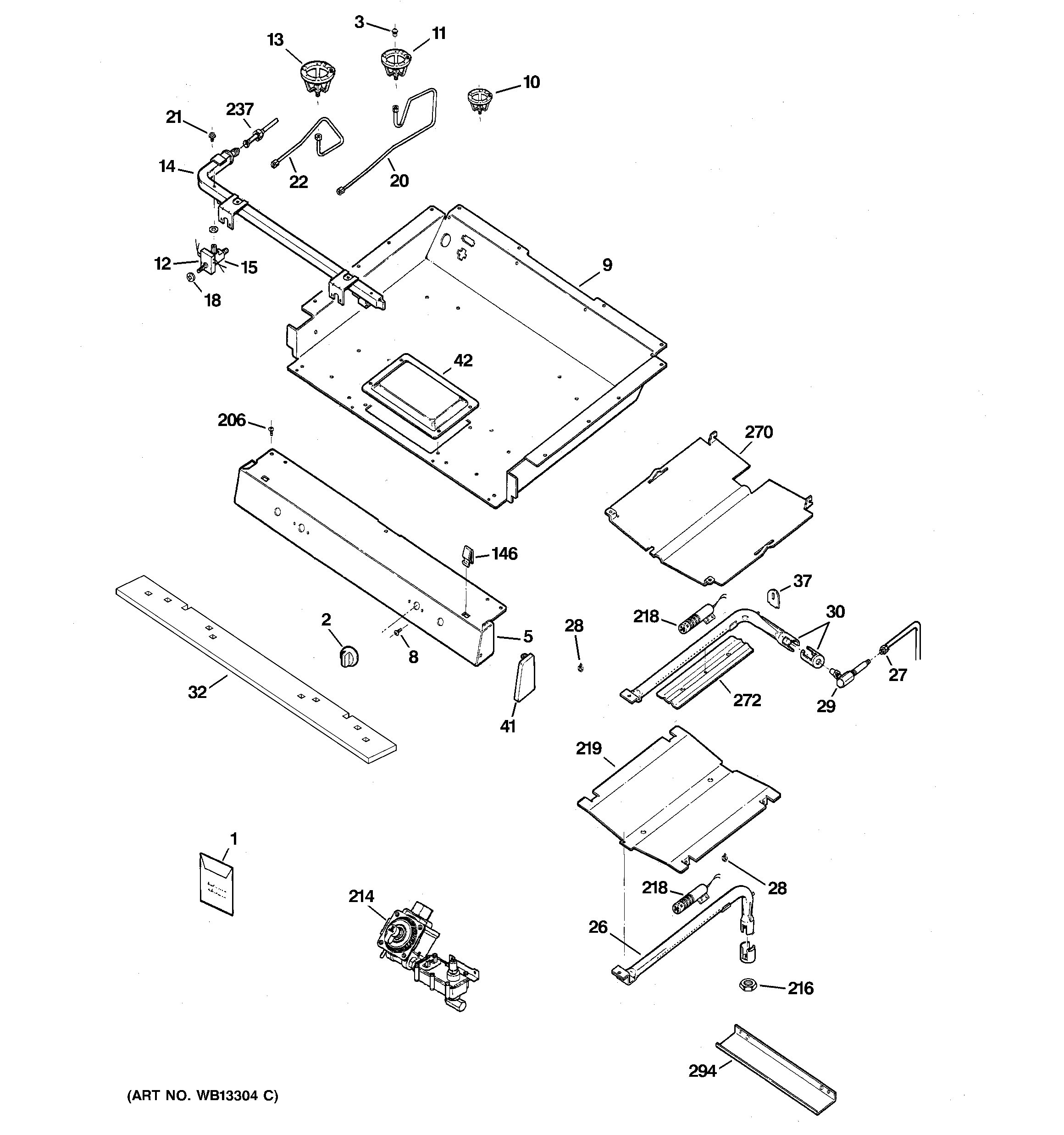

JGBP33SEH2SS GAS & BURNER PARTS

JGBP33SEH2SS GAS & BURNER PARTS

Written by

in

JGBP33SEH2SS GAS & BURNER PARTS

Products

PositionProduct
1GEN WB28K10164
1GEN 49-85069
1GEN 31-21116
1GEN WB02K0101
2WB03K10141 GE Oven Mini Valve Knob
3ORIFICE-NG MED 1.50MM
3WB28K10032 GE Oven LP Orifice
3WB28K10031 GE Oven Orifice
3WB28K10029 GE Oven Natural Gas Orifice
3WB28K10023 GE Oven Orifice
3GEN WB28K10034
5GEN WB36K10351
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
10GEN WB02K10007
11GEN WB02K10006
12GEN WB24K10023
12GEN WB24K10024
13GEN WB02K10008
14GEN WB28K10028
15GEN WB21K10014
15GEN WB21K10015
15GEN WB21K10016
18WB2K24 GE Oven Valve Cover
20GEN WB28K10027
20GEN WB28K10026
21WB1K83 GE Oven Screw
22WB28K10025 GE Gas Range Burner Tube
22WB28K10024 GE Oven Burner Tube
26GEN WB16K0022
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K0030
30GEN WB16K10008
32INSULATION BURNER BOX
37WB34K14 GE Igniter Cover
41GEN WB07K10096
41GEN WB07K10095
42GEN WB63K0022
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K10051 GE Oven Control Valve Assembly SIC D.
216GEN WB01K0006
218WB2X9154 GE Oven Igniter with 8" Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294GEN WB63K10040
