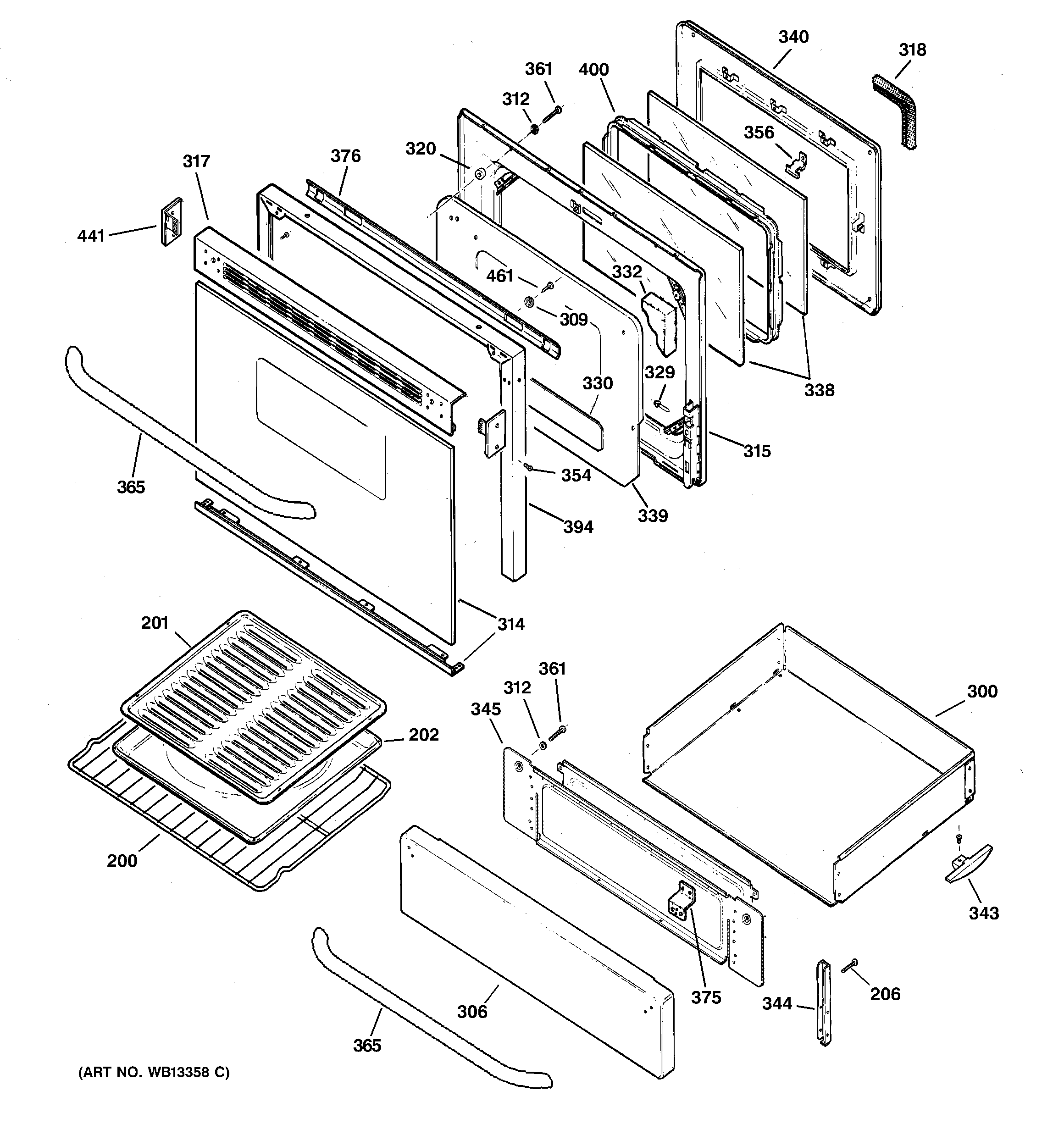

JGBP33SEH4SS DOOR & DRAWER PARTS

JGBP33SEH4SS DOOR & DRAWER PARTS

Written by

in

JGBP33SEH4SS DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
202WB48X10056 GE Broil Pan Set, Large Porcelain
206WR01X10065 GE Screw
300GEN WB58K10004
306GEN WB55K10016
309WASHER
312WB1X119D GE Oven Range Washer
314GEN WB57K10091
314GEN WB57K10100
315GEN WB55K0025
317GEN WB35K0033
317GEN WB07K10199
318WB4K1 GE Oven Gasket Door
320GEN WB02K0002
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0024
332GEN WB35K0025
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345COVER DRAWER
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
361WB01K10047 GE Drawer Screw 10-32 HXW 9/16
361GEN WB01T10070
365GEN WB15T10105
375CLIP WINDOW
376WB35K23 GE Heater Deflector
394GEN WB07K0265
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7181
441GEN WB07X7182
461WB1K63 GE Oven Screw
