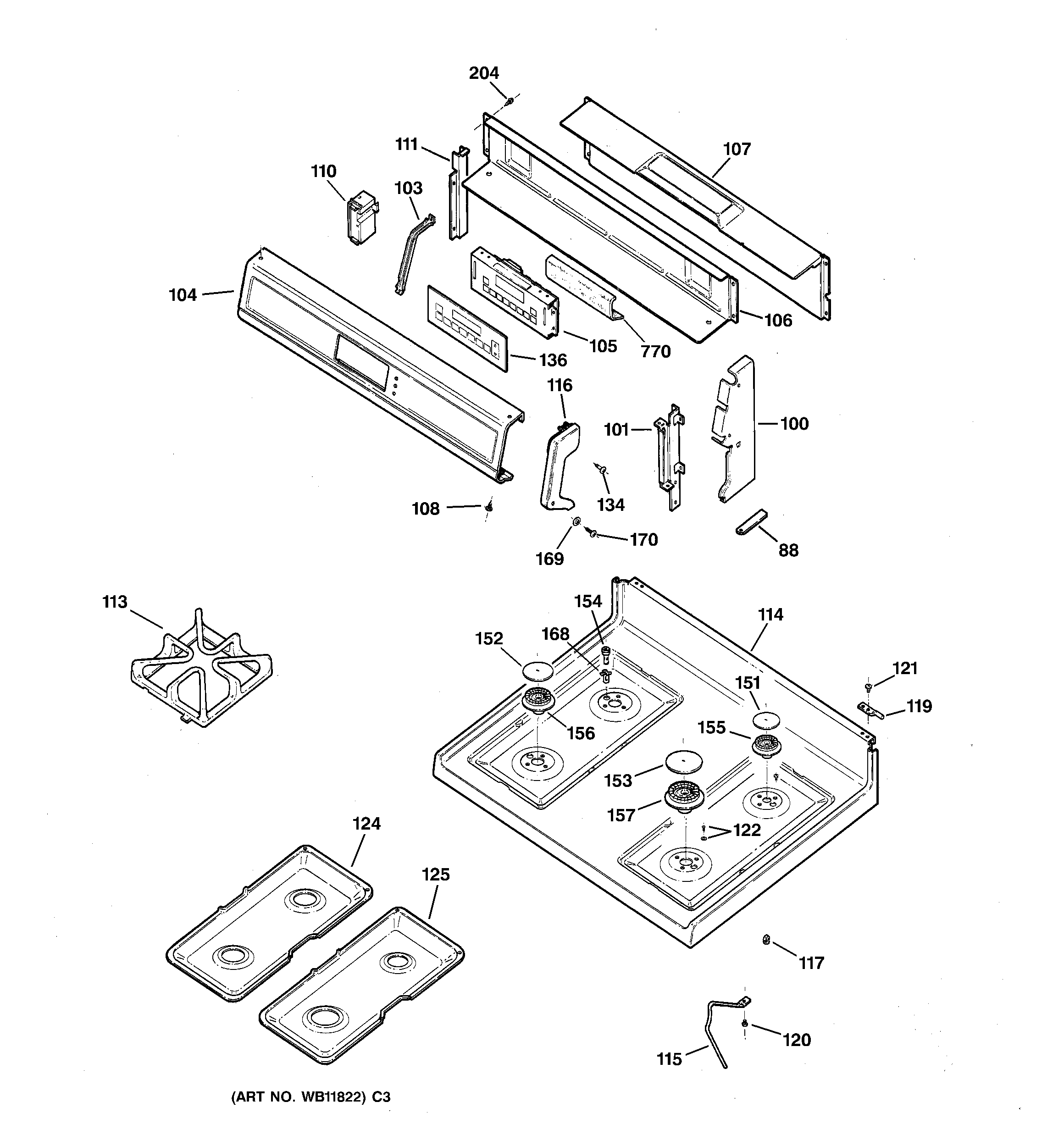

JGBP35AEA2AA CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K10009
100GEN WB07K10008
101GEN WB37K0018
101GEN WB37K0017
103GEN WB02K10005
104GEN WB36K10094
105GEN WB27K10008
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10008
108WB1X5364 GE Oven Mounting Screw
110GEN WB13K0025
110WB18K10035 GE Oven Wire Harness
111GEN WB34K0005
113WB31K10044 GE Oven Burner Grate Taupe
115WB2K91 GE Oven Top Support
116GEN WB07K10011
116GEN WB07K10012
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122GEN WB01K10008
124DOUBLE TAUPE PORC PAN LEFT SIDE-GAS
125DOUBLE TAUPE PORC PAN RIGHT SIDE-GAS
134GEN WB01K10010
136GEN WB27K10009
151CAP-BURNER SMALL TAUPE
152CAP-BURNER MED TAUPE
153WB29X36765 GE Large Cap Burner Taupe Rep
154GEN WB13K10003
155GEN WB16K10006
156BURNER
157GEN WB16K10007
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB01K0057
170SCREW (AD)
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770GEN WB35K10004
