JGBP35GXA2WW CONTROL PANEL & COOKTOP

JGBP35GXA2WW CONTROL PANEL & COOKTOP

Written by

in

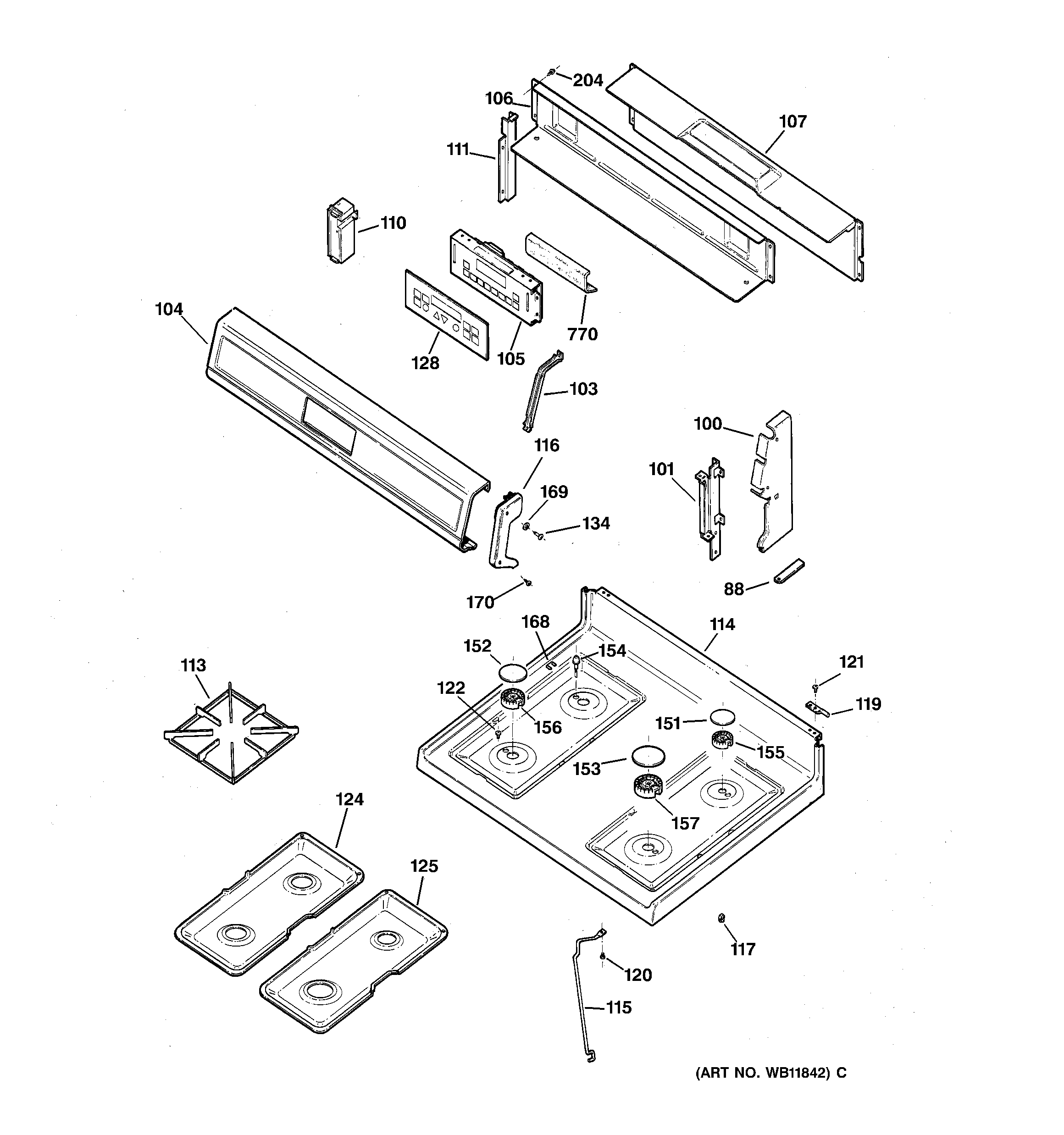

JGBP35GXA2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K10001
100GEN WB07K10002
101GEN WB37K0017
101GEN WB37K0018
103GEN WB02K10005
104GEN WB36K10098
105GEN WB27K10008
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10008
110HARNESS HV
110GEN WB13K0025
111GEN WB34K0005
113WB31K10045 GE Oven Grate Gray
114GEN WB62K10035
115WB2K91 GE Oven Top Support
116WB07K10005 GE Oven Right Endcap
116GEN WB23K0001
116WB07K10007 GE Oven Endcap Left
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122WB1K84 GE Oven Screw and
124GEN WB34K10026
125GEN WB34K10025
128GEN WB27K10011
134GEN WB01K10004
151GEN WB29K0042
152GEN WB29K0045
153GEN WB29K10011
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
156BURNER HEAD-MED
157GEN WB16K10012
168ELECTRODE CLIP
169GEN WB01K0057
170GEN WB01X5874
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
770GEN WB35K10004
