JGBP35GXA3WW DOOR & DRAWER PARTS

JGBP35GXA3WW DOOR & DRAWER PARTS

Written by

in

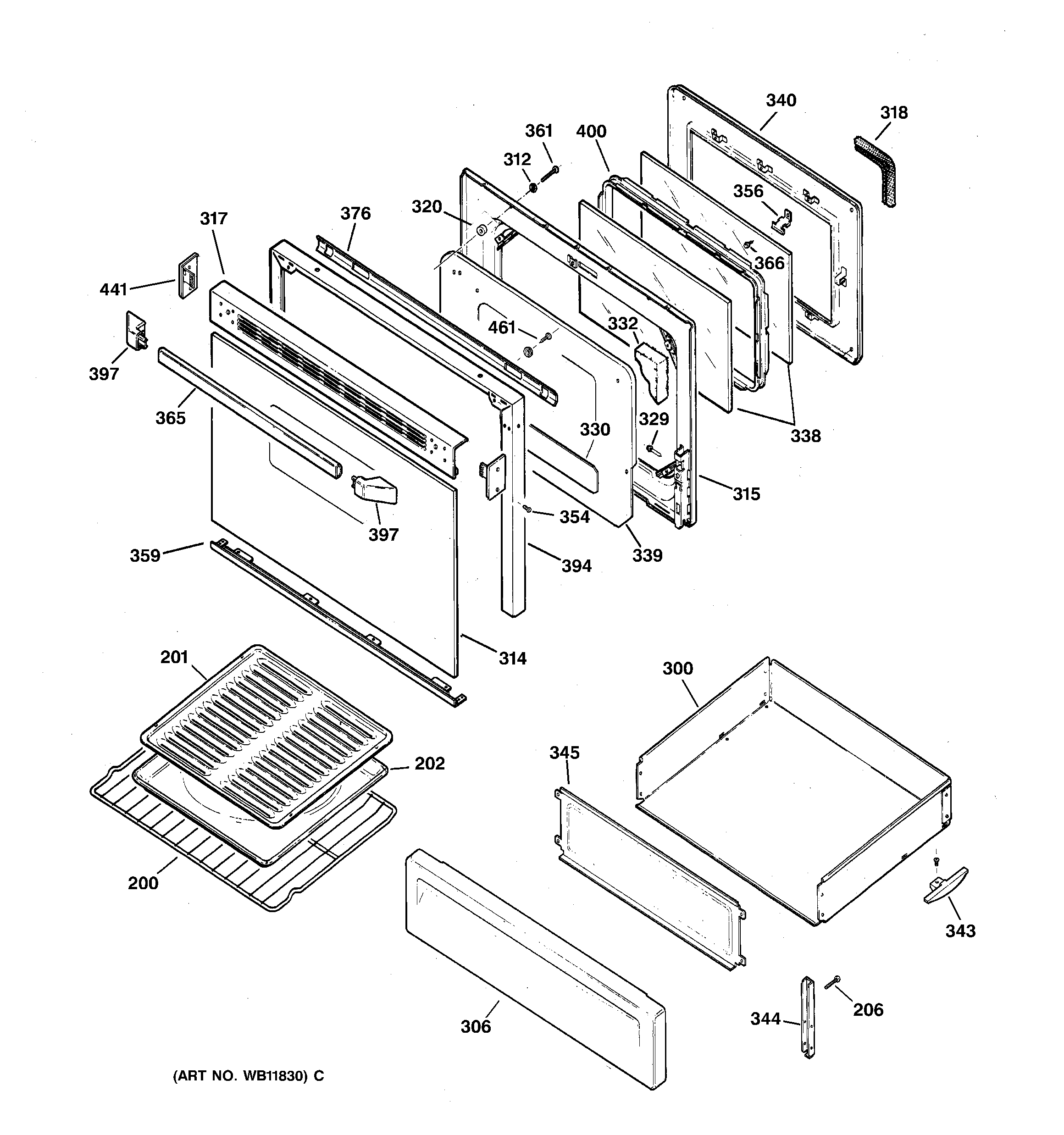

JGBP35GXA3WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
206WR01X10065 GE Screw
300GEN WB58K10001
306WB36K10033 GE Oven Drawer Panel (White)
312WB1X119D GE Oven Range Washer
314PAD
314WB57K5 GE Oven White Glass Door
315GEN WB55K0025
317GEN WB07K0400
318WB4K1 GE Oven Gasket Door
320GEN WB02K0084
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
330GEN WB35K0033
332GEN WB35K0025
332GEN WB35K0024
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345GEN WB35K10007
354WB1K66 GE Screw
356GEN WB02K0056
359TRIM BOTTOM ASM
361WB1K63 GE Oven Screw
361GEN WB01K0069
365WB15X10048 GE Oven Door Handle White
366WB1X536 GE Oven Screw
376WB35K23 GE Heater Deflector
394GEN WB07K10103
397WB07K10043 GE Oven Door Handle End Cap
400WB34K10087 GE Oven Window Spacer Assembly
441GEN WB07X7187
441WB7X7188 GE Oven Left Endcap
461WB1K67 GE Oven Screw 8-22
