JGBP35GXH4WW CONTROL PANEL & COOKTOP

JGBP35GXH4WW CONTROL PANEL & COOKTOP

Written by

in

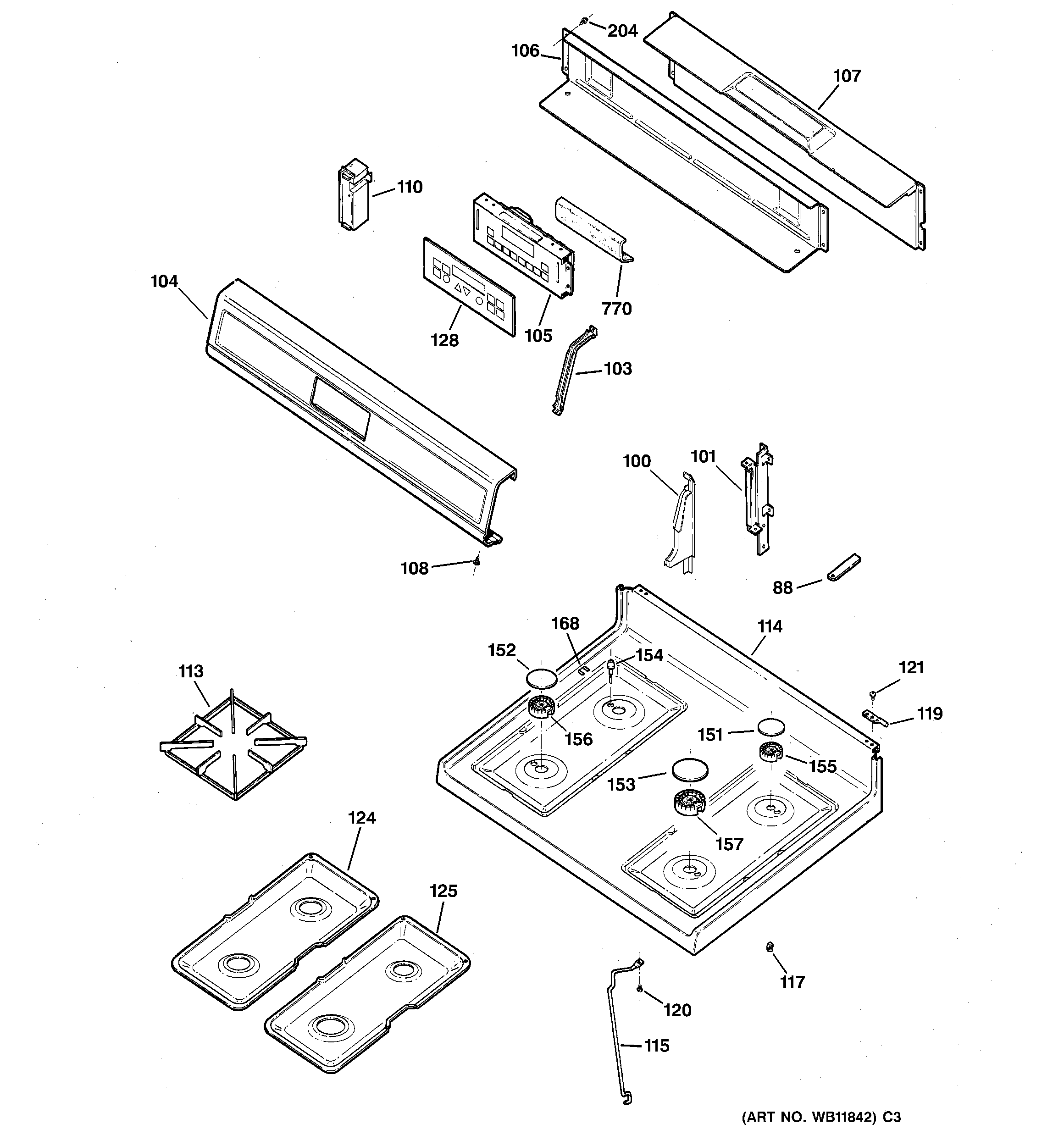

JGBP35GXH4WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K10098
88GEN WB02K0062
100WB07K10196 GE Oven Left End Support (White)
100WB07K10195 GE Oven Right White End Support
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
103WB02K10074 GE Oven Control Bracket
104TRIM CONTROL
105WB27K10148 GE Oven Control Board
106WB34K10003 GE Upper Back Oven Cover
107GEN WB34K10062
108WB01K10030 GE Screw Assembly
108GEN WB01X5874
108WB01T10016 GE Oven Screw 8-18 AB Hex
110HARNESS HV
110WB13X42446 GE Spark Module Replacement Kit
110GEN WB18K10027
113WB31K10045 GE Oven Grate Gray
114GEN WB62K10035
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
124GEN WB34K10026
125GEN WB34K10025
128GEN WB27K10180
151GEN WB29K0042
152GEN WB29K0045
153GEN WB29K10011
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
156BURNER HEAD-MED
157GEN WB16K10012
168ELECTRODE CLIP
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770GEN WB35K10004
