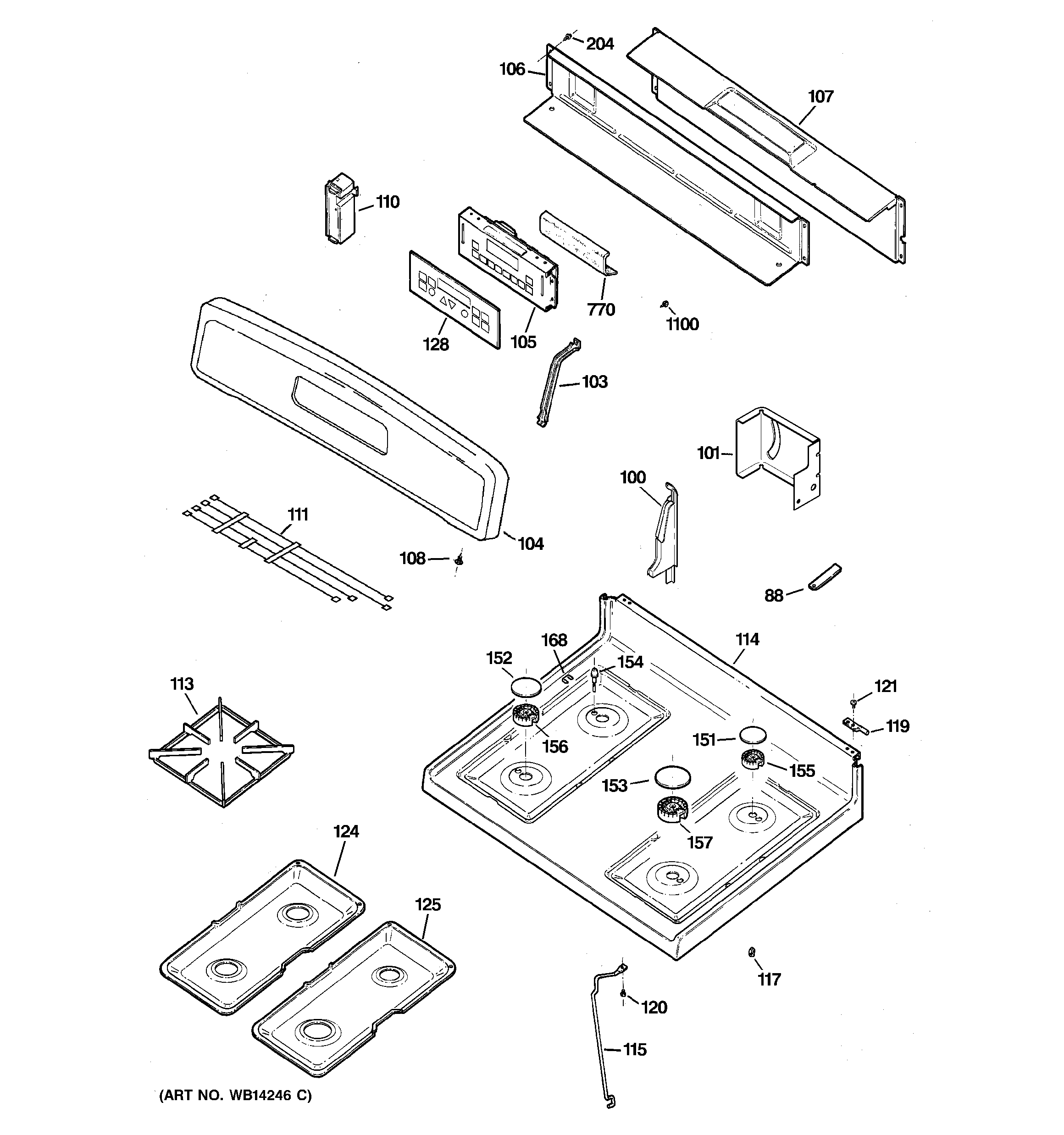

JGBP35GXM2WW CONTROL PANEL & COOKTOP

JGBP35GXM2WW CONTROL PANEL & COOKTOP

Written by

in

JGBP35GXM2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
88GEN WB02K10098
100GEN WB07K10265
100GEN WB07K10266
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103GEN WB02K10155
104GEN WB36K10653
105WB27K10355 GE Oven Electronic Control Board
106GEN WB34K10093
107GEN WB34K10094
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5874
110WB13K10029 GE Oven Spark Module
111HARNESS HV
113WB31K10045 GE Oven Grate Gray
114GEN WB62K10035
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
124GEN WB34K10026
125GEN WB34K10025
128WB27K10265 GE Overlay T09-B
151GEN WB29K0042
152GEN WB29K0045
153GEN WB29K10011
154GEN WB13K10014
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
156BURNER HEAD-MED
157GEN WB16K10012
168ELECTRODE CLIP
168WB01K10112 GE Range Oven Electrode Clip
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
1100WB01T10016 GE Oven Screw 8-18 AB Hex
