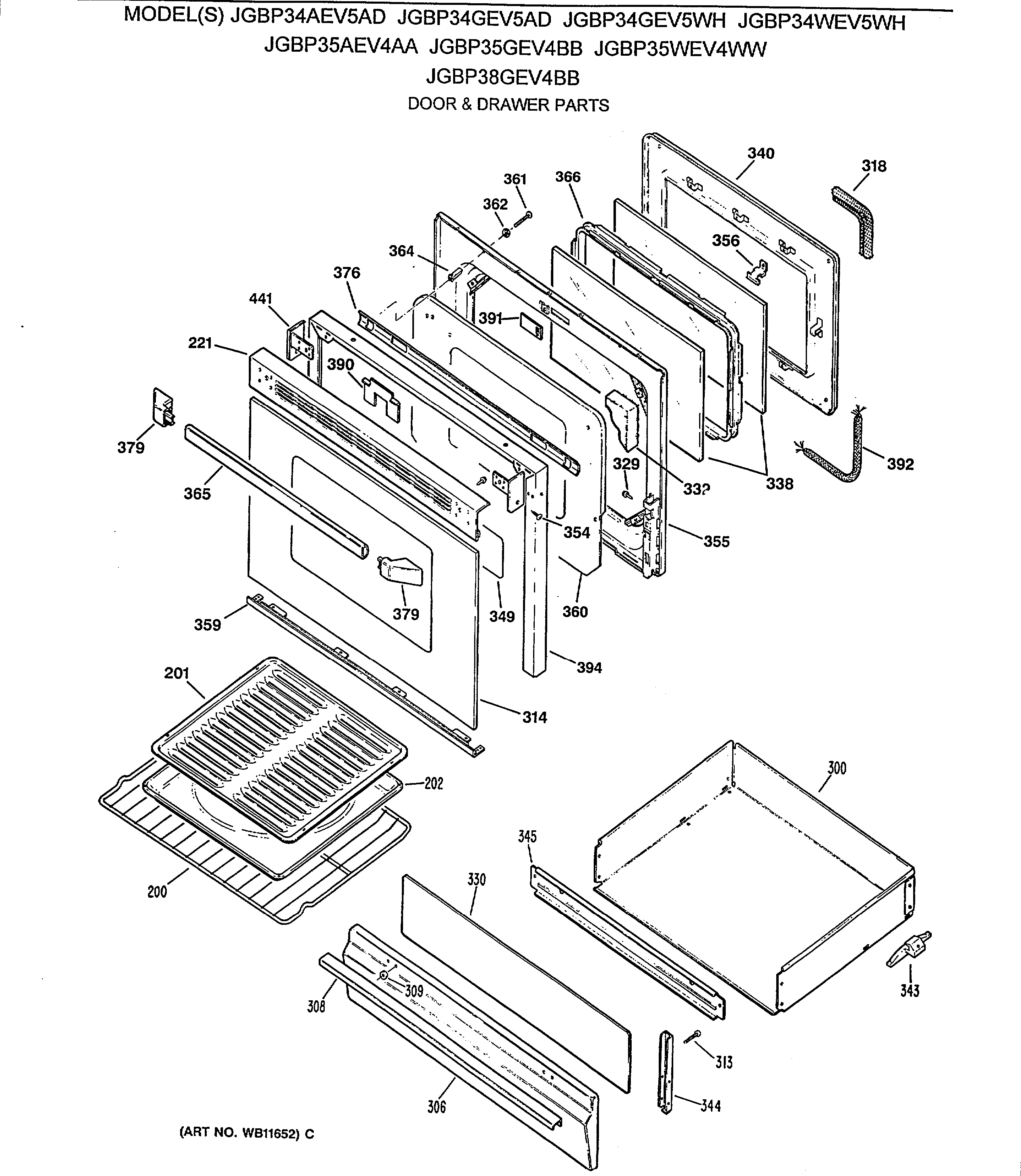

JGBP35WEV4WW DOOR & DRAWER PARTS

JGBP35WEV4WW DOOR & DRAWER PARTS

Written by

in

JGBP35WEV4WW DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
201GEN WB48K0002
202GEN WB49K0002
221TRIM VENT (WH)
300GEN WB39K0021
306WB56X21199 GE Oven Drawer Panel
308GEN WB15K0017
309WASHER
313GEN WB01K0016
314WB57K5 GE Oven White Glass Door
318WB4K1 GE Oven Gasket Door
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K0024
332GEN WB35K0025
338CRYSTAL WINDOW
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345GEN WB39K0022
349GEN WB35K0033
354WB1K66 GE Screw
356GEN WB02K0069
359TRIM BOTTOM ASM
360WB56K12 GE Oven Insulation Guard
361GEN WB01K0069
362WB1X119D GE Oven Range Washer
364GEN WB02K0084
365HANDLE DOOR (WH)
366WB34K10087 GE Oven Window Spacer Assembly
376WB35K23 GE Heater Deflector
390GEN WB34K0025
391GEN WB34K0026
392GEN WB04K0003
394TRIM DOOR (WH)
441GEN WB07X7187
441WB7X7188 GE Oven Left Endcap
