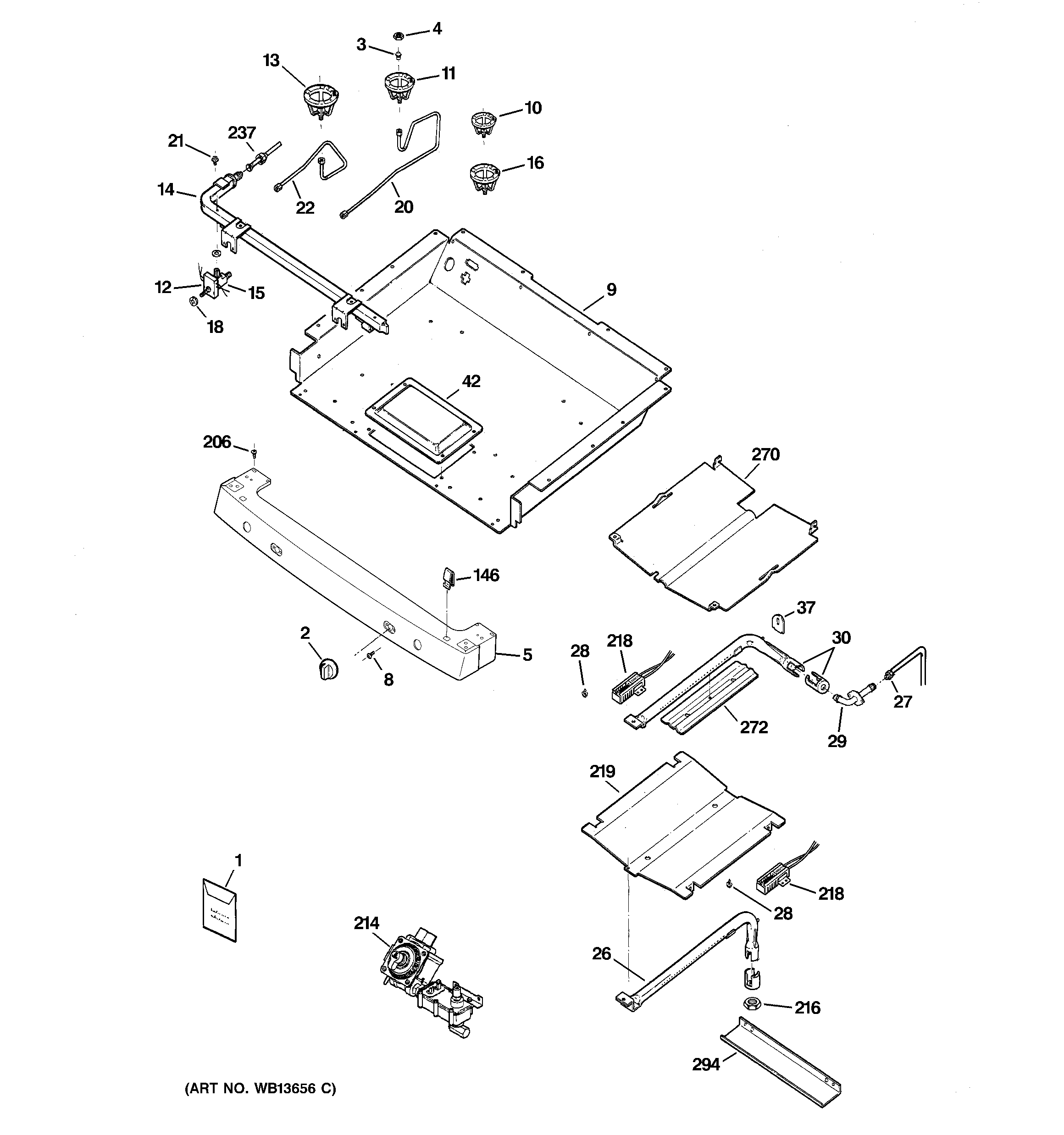

JGBP36BEJ2BB GAS & BURNER PARTS

JGBP36BEJ2BB GAS & BURNER PARTS

Written by

in

JGBP36BEJ2BB GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21215
1GEN 49-85080
1GEN WB28K10303
2WB03K10141 GE Oven Mini Valve Knob
3WB28K10215 GE Oven Orifice
3WB28K10214 GE Oven Orifice
3ORIFICE SPUD LP RF
3WB28K10031 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10475
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10027
12GEN WB24K10002
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10243
15WB21K12 GE Oven Burner Control Valve
15GEN WB21K0020
15GEN WB21K0021
15GEN WB21K10017
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
20GEN WB28K10211
20GEN WB28K10212
21WB1K83 GE Oven Screw
22GEN WB28K10210
22GEN WB28K10209
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10004
37WB34K14 GE Igniter Cover
42GEN WB63K0022
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K10041 GE Oven Safety Valve and Regulator Assembly
216GEN WB01K0006
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294GEN WB63K10040
