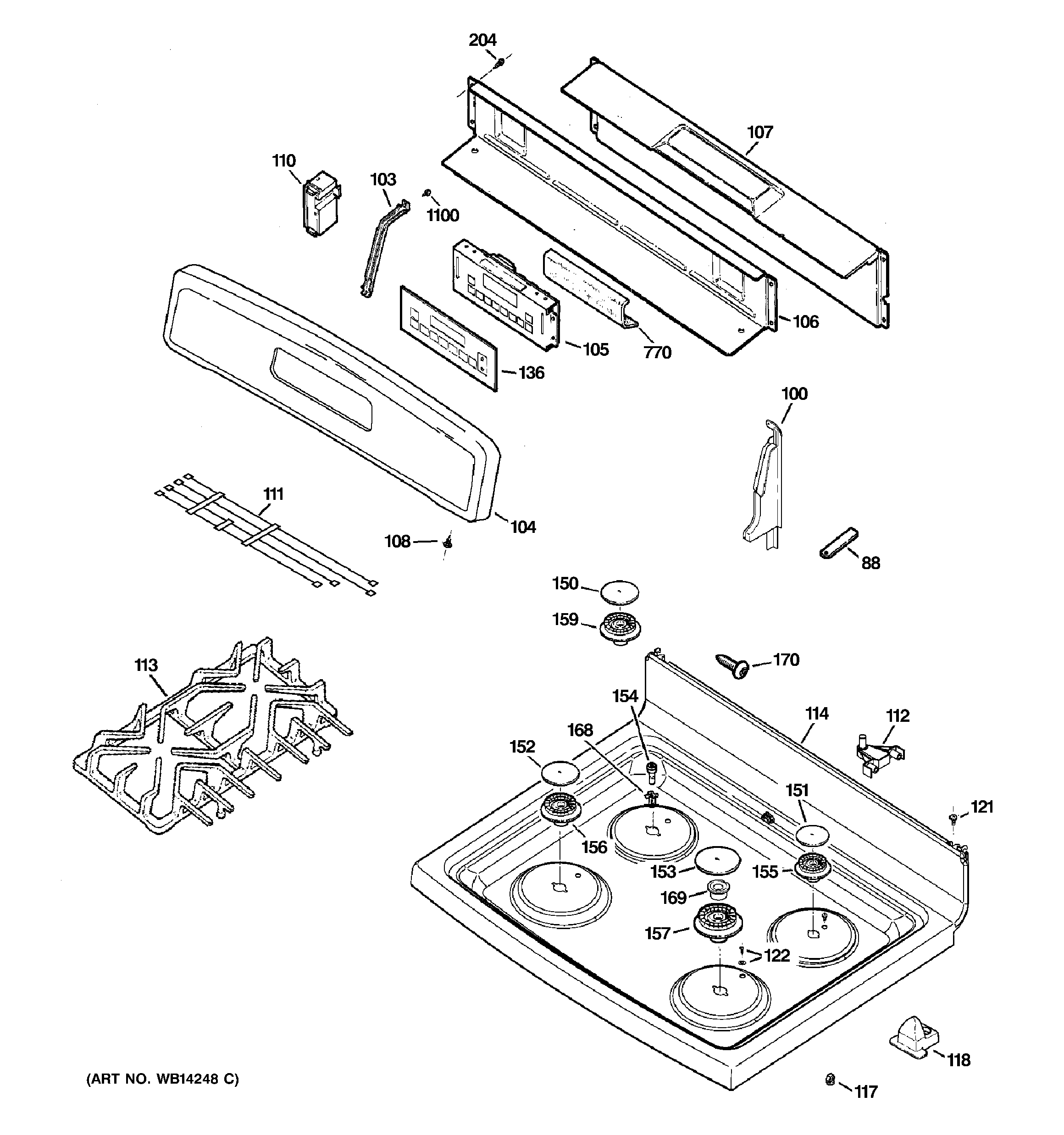

JGBP36DEM1WW CONTROL PANEL & COOKTOP

JGBP36DEM1WW CONTROL PANEL & COOKTOP

Written by

in

JGBP36DEM1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
88GEN WB02K0085
100GEN WB07K10252
100GEN WB07K10251
103GEN WB02K10155
104GEN WB36K10653
105WB27K10355 GE Oven Electronic Control Board
106GEN WB34K10092
107GEN WB34K10091
108WB1X5364 GE Oven Mounting Screw
110GEN WB18K10027
110WB13X42446 GE Spark Module Replacement Kit
111GEN WB18K10023
112WB14K10003 GE Range Top Hinge
113GRATE CAST (DD) RT
113GRATE CAST (DD) LF
114GEN WB62K10091
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
121WB1K5119 GE Oven Screw
122GEN WB01K10008
150WB29K10004 GE Oven Gray Burner Cap
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
152WB29K10007 GE Oven Burner Cap, Left
153GEN WB28K10223
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10046
170GEN WB01X5874
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
770WB35K10040 GE Oven Insulation Control
1100WB01T10016 GE Oven Screw 8-18 AB Hex
