JGBP36DEM2CC CONTROL PANEL & COOKTOP

JGBP36DEM2CC CONTROL PANEL & COOKTOP

Written by

in

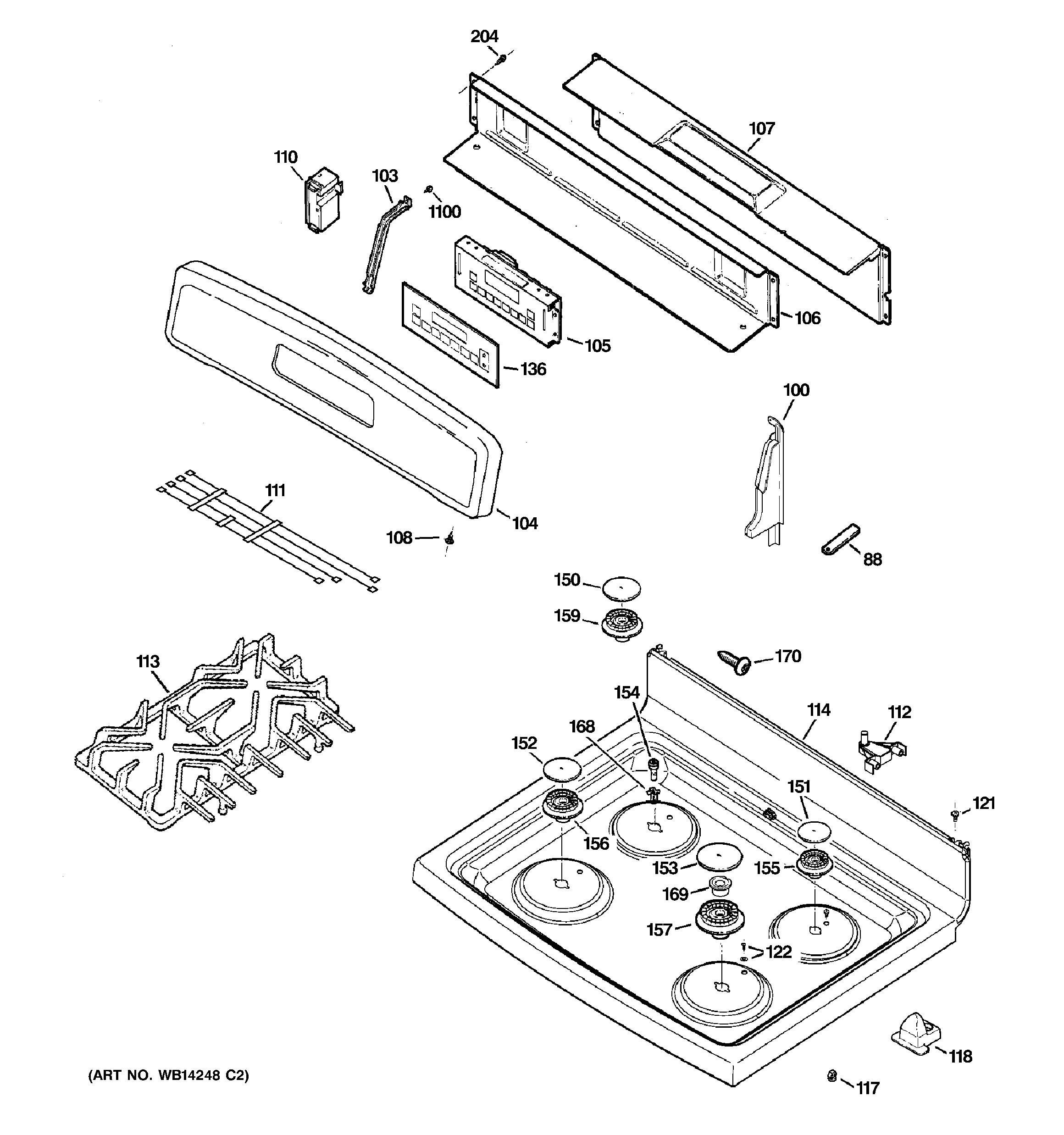

JGBP36DEM2CC CONTROL PANEL & COOKTOP

Products

PositionProduct
88WB2K64 GE Oven Felt Pad Black
88GEN WB02K0085
88GEN WB02K0062
100GEN WB07K10251
100GEN WB07K10247
100GEN WB07K10252
100GEN WB07K10282
100GEN WB07K10283
100GEN WB07K10246
103GEN WB02K10155
104GEN WB36K10651
104GEN WB36K10653
104GEN WB36K10672
105WB27K10355 GE Oven Electronic Control Board
106GEN WB34K10092
107GEN WB34K10091
108WB1X5364 GE Oven Mounting Screw
110WB13K10029 GE Oven Spark Module
111WB18K10035 GE Oven Wire Harness
112WB14K10003 GE Range Top Hinge
113GRATE CAST (DD) LF
113GRATE CAST (DD) RT
113GRATE CAST (DD) LF
113GRATE CAST (DD) RT
113GRATE CAST (DD) LF
113GRATE CAST (DD) RT
114GEN WB62K10087
114GEN WB62K10090
114GEN WB62K10091
117WB14K10004 GE Oven Pin Locator
118GEN WB14K10005
121WB1K5119 GE Oven Screw
122GEN WB01K10008
136GEN WB27K10275
136WB27K10265 GE Overlay T09-B
136WB27K10264 GE Oven T09-B Overlay
150CAP-BURNER MED TAUPE
150WB29K10004 GE Oven Gray Burner Cap
150WB29K10001 GE Oven Burner Cap
151WB29K10002 GE Range Oven Cooktop Small Burner Cap
151WB29K10009 GE Oven Burner Cap
151CAP-BURNER SMALL TAUPE
152WB29K10006 GE Oven Burner Cap
152WB29K10007 GE Oven Burner Cap, Left
152WB29X36765 GE Large Cap Burner Taupe Rep
153GEN WB28K10221
153GEN WB28K10223
153WB28K10213 GE Oven Burner Cap Assembly (15K)
154GEN WB13K10014
155WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
156BURNER 12K
157WB16K10062 GE Oven Surface Burner Base
159WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB16K10046
170GEN WB01X5874
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
1100WB01T10016 GE Oven Screw 8-18 AB Hex
