JGBP36DEM4WW GAS & BURNER PARTS

JGBP36DEM4WW GAS & BURNER PARTS

Written by

in

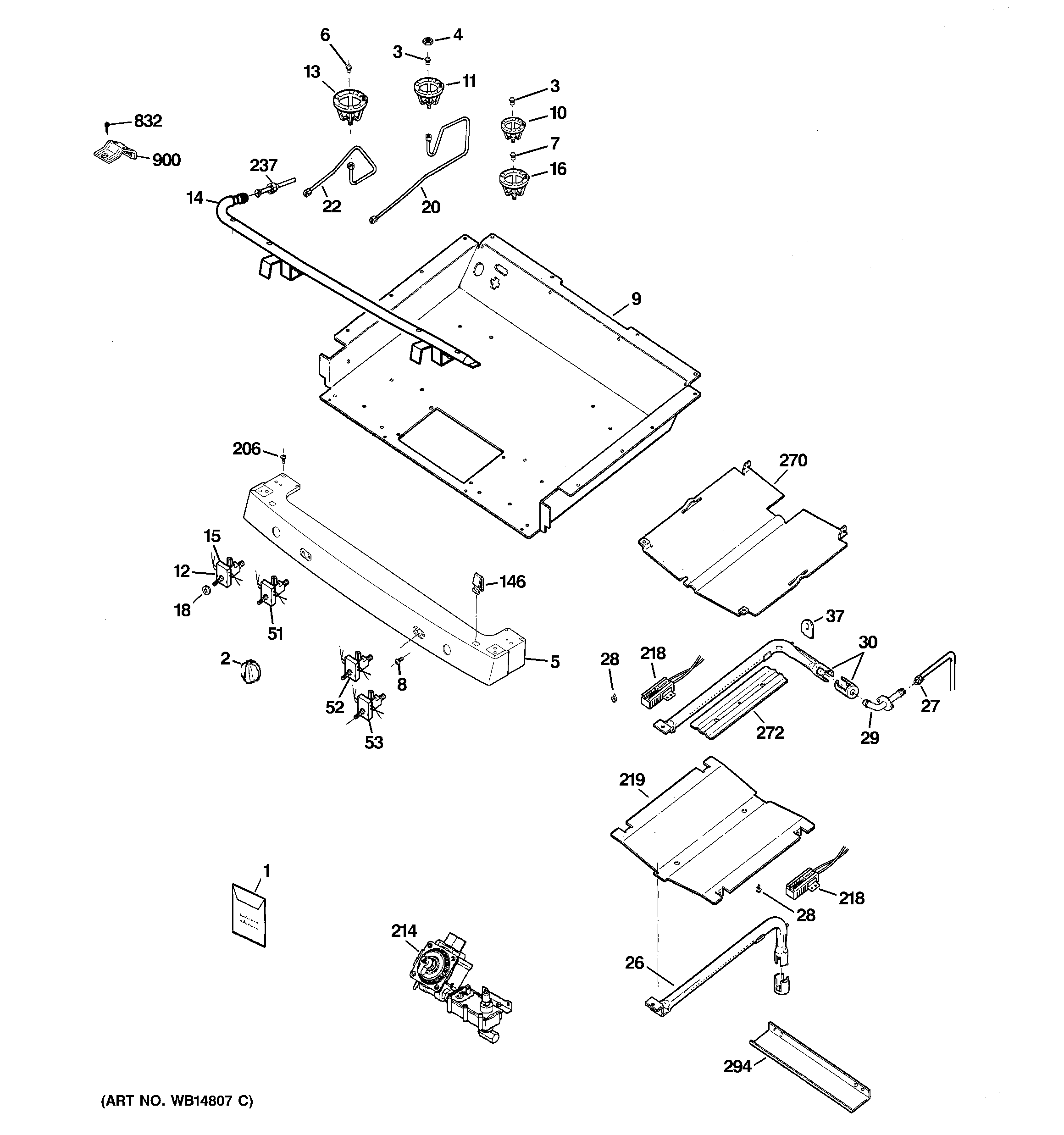

JGBP36DEM4WW GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21395
1GEN 49-85161
1GEN 31-21334
1GEN WB28K10560
2WB03K10218 GE Oven Control Knob
2GEN WB03K10225
2WB03K10216 GE Oven Manifold Knob
3WB28K10031 GE Oven Orifice
3WB28K10215 GE Oven Orifice
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10724
5GEN WB36K10728
5GEN WB36K10727
6WB28K10214 GE Oven Orifice
7ORIFICE SPUD LP RF
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10037
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10024
12GEN WB24K10023
13WB02K10362 GE Oven CKT Bracket MDM & L
14GEN WB28K10582
15WB21K10099 GE Oven Burner Valve
16WB02K10082 GE Oven Bracket XL Cooktop
18WB2K24 GE Oven Valve Cover
20GEN WB28K10212
20GEN WB28K10211
22GEN WB28K10209
22GEN WB28K10210
26WB16K10035 GE Range Oven Burner Bar with Igniter
27WB28K10168 GE Oven Burner Supply Tube
28WB1X1293 GE Oven Screw
29GEN WB28K10310
30GEN WB16K10004
37WB34K14 GE Igniter Cover
51VALVE BURNER 270
52VALVE BURNER 270 RR
53GEN WB21K10116
146GEN WB02K0052
206WB01K10091 GE Oven Screw
214WB19K10041 GE Oven Safety Valve and Regulator Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28X24772 GE Oven Gas Tube Connector
270DEFLECTOR
272WB34K10 GE Oven Broil Shield
294GEN WB63K10040
832WB01K10080 GE Oven Thermostat Screw
900WB02K10297 GE Oven Valve Bracket
