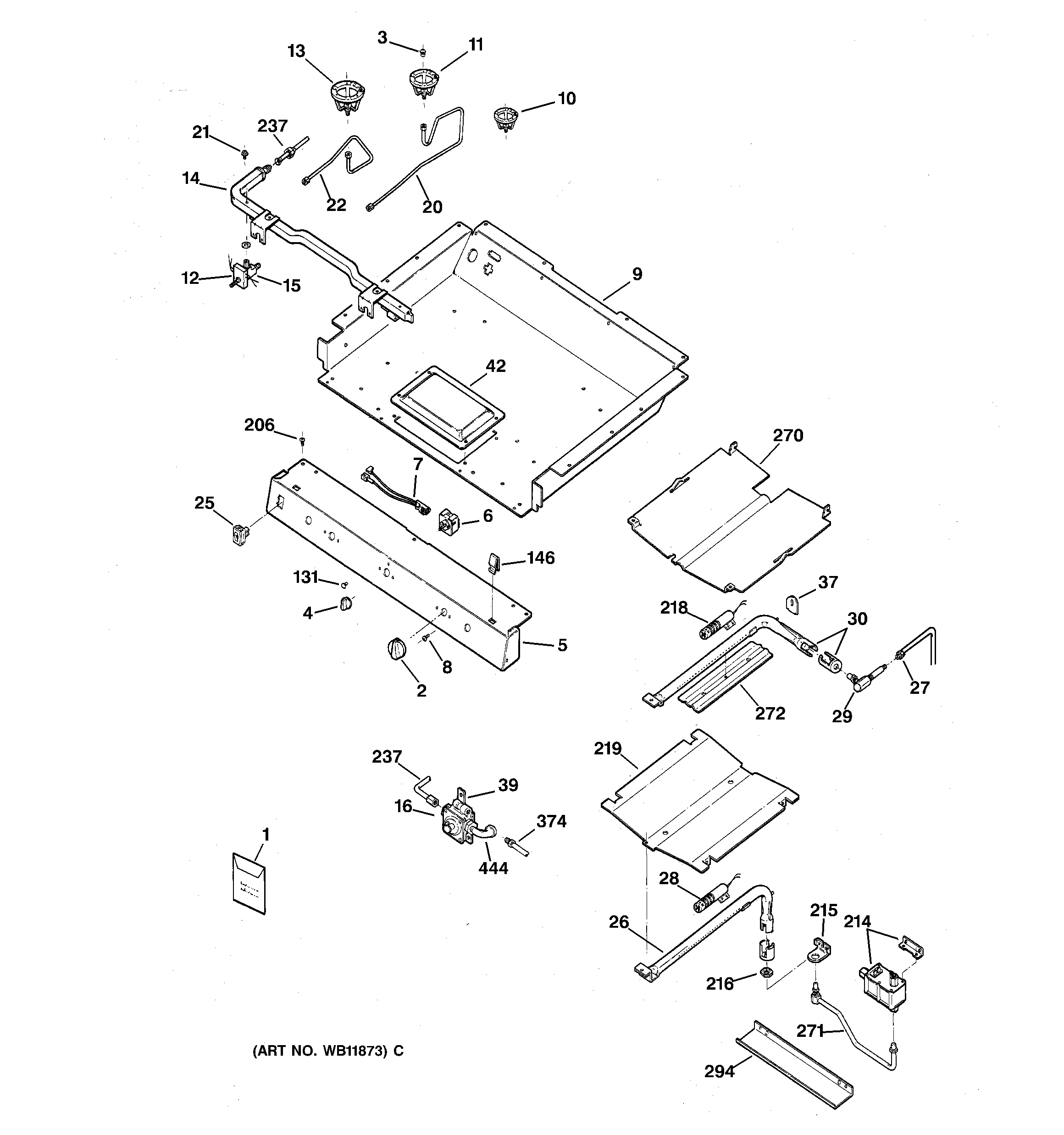

JGBP79AEB1AA BURNER PARTS

JGBP79AEB1AA BURNER PARTS

Written by

in

JGBP79AEB1AA BURNER PARTS

Products

PositionProduct
1MANUAL-USE & CARE
1WB2K20 GE Oven Bracket Assembly
1GEN WB28K10047
2GEN WB03K10042
3WB28K10029 GE Oven Natural Gas Orifice
3WB28K10023 GE Oven Orifice
3WB28K10031 GE Oven Orifice
3WB28K10032 GE Oven LP Orifice
3ORIFICE-NG MED 1.50MM
3WB28K10030 GE Oven Natural Gas Orifice
4GEN WB03K10076
5GEN WB36K10168
6GEN WB24K10006
7GEN WB25K10001
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K0023
10GEN WB02K10007
11GEN WB02K10006
12GEN WB24K10003
13GEN WB02K10008
14GEN WB28K10081
15VALVE-TOP LEFT BURNERS
15GEN WB21K0042
15WB21K12 GE Oven Burner Control Valve
16GEN WB19K10001
20GEN WB28K10026
20GEN WB28K10027
21WB1K83 GE Oven Screw
22WB28K10024 GE Oven Burner Tube
22WB28K10025 GE Gas Range Burner Tube
25GEN WB24K0020
26GEN WB16K0022
27GEN WB28K0055
28WB1X1293 GE Oven Screw
29GEN WB28K10018
29GEN WB28K10019
30GEN WB16K10008
37WB34K14 GE Igniter Cover
39GEN WB02K0088
42GEN WB63K0022
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K14 GE Oven Control Valve
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
218WB2X9154 GE Oven Igniter with 8" Leads
219OVEN DEFLECTOR
237GEN WB28K10021
270DEFLECTOR
271GEN WB28K0202
271GEN WB28K0060
272WB34K10 GE Oven Broil Shield
294GEN WB63K0019
321WB1X5731D GE Oven Nut Package of 12
374GEN WB28K0150
444GEN WB28K0061
712WB1K37 GE Oven Screw
