JGBS02PPA3WH BURNER PARTS

JGBS02PPA3WH BURNER PARTS

Written by

in

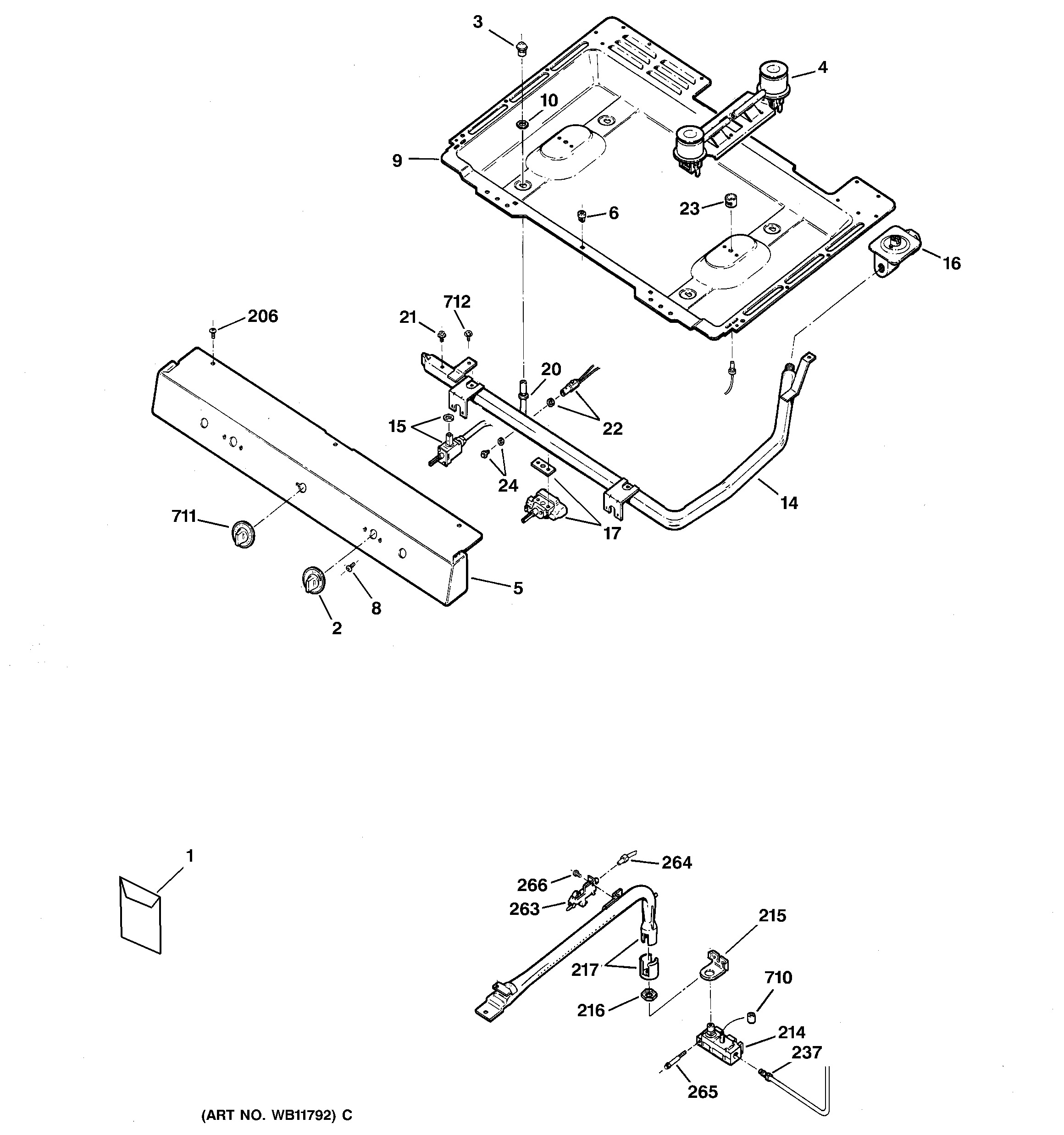

JGBS02PPA3WH BURNER PARTS

Products

PositionProduct
1WB2K20 GE Oven Bracket Assembly
1GEN 49-85027
1GEN 31-20641-1
2WB03K10035 GE Oven Top Burner Knob
3WB28K10033 GE Oven Orifice Spud
3WB28K10376 GE Oven Orifice
4WB16K10026 GE Oven Range Cooktop Double Burner
5GEN WB36K10052
6GEN WB02K0009
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10001
10GEN WB01K0004
14GEN WB28K10008
15WB21K38 GE Oven Burner Valve
16GEN WB19K0026
17GEN WB20K0002
20WB28K10009 GE Oven Burner Tube
20WB28K10010 GE Oven Front Tube Assembly
20WB28K10011 GE Oven Rear Burner Tube
20WB28K10012 GE Oven Rear Burner Tube
21WB1K83 GE Oven Screw
22GEN WB19K0005
23GEN WB02K0021
24GEN WB01K0011
206WR01X10065 GE Screw
214GEN WB19K0012
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K0017
237GEN WB28K0051
263GEN WB19K0006
264GEN WB28K0050
265GEN WB04X0366
266WB1X1293 GE Oven Screw
710GEN WB02K0051
711GEN WB03K10067
712WB1K37 GE Oven Screw
