JGBS03PV1AD 2

JGBS03PV1AD 2

Written by

in

JGBS03PV1AD 2

Products

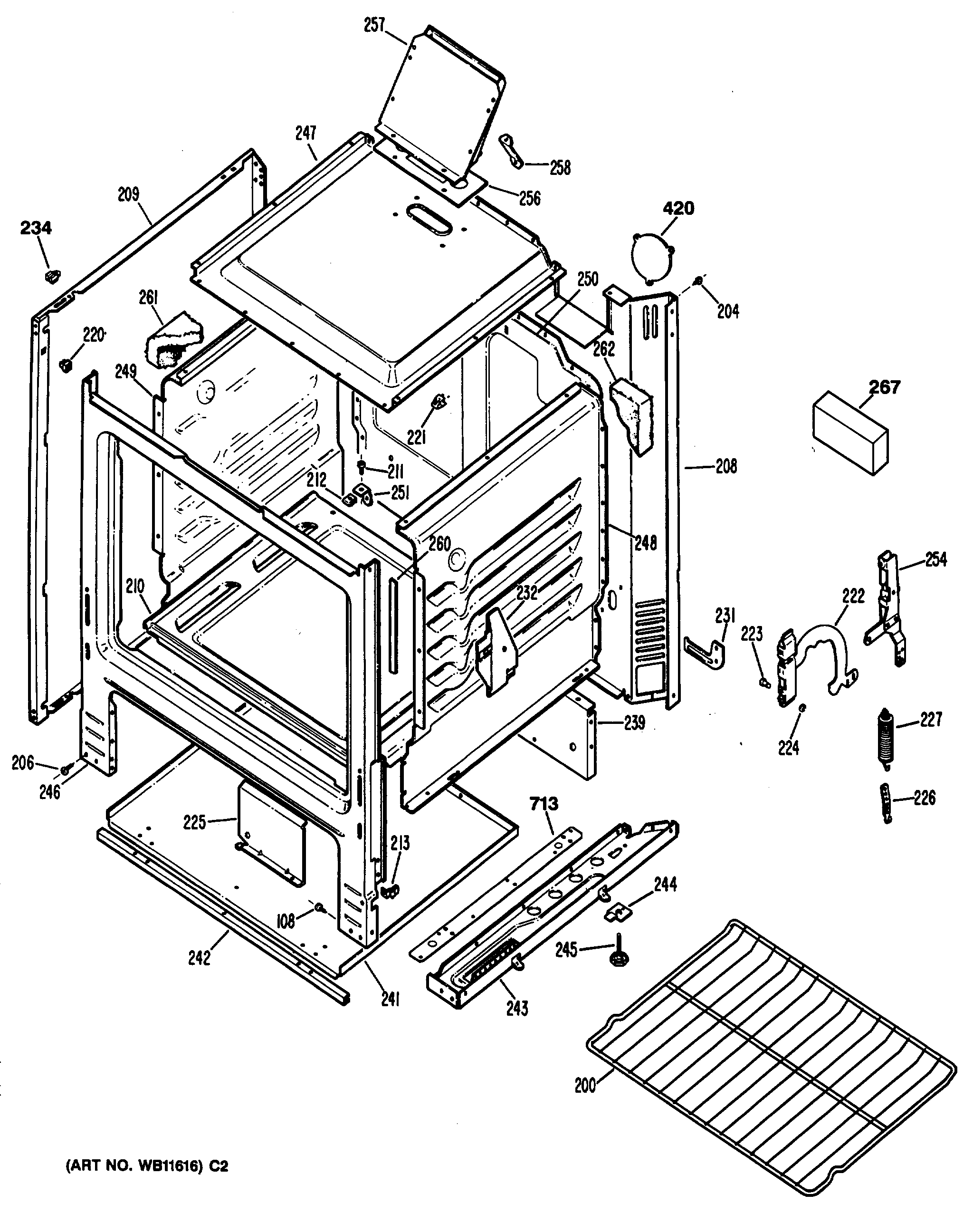

Position	Product
200	WB48T10095 GE Oven Rack
204	WZ4X345D GE Screw Package 12 C92
204	WB1K5062 GE Oven Screw
206	WR01X10065 GE Screw
208	WB63K20 GE Ran Back
209	GEN WB63K0034
210	GEN WB53K0005
211	WB1K5 GE Oven Screw 8-18 X B97
212	WB1K2 GE Oven Speednut
213	WB1K3 GE Oven Speed Nut
220	GEN WB02K0008
221	WB02K10073 GE Oven Clip Capillary
222	WB10K12 GE Oven Hinge Assembly
223	GEN WB02X6195
224	RING RETAINING
225	GEN WB34K0002
226	GEN WB02K0011
227	GEN WB09K0001
231	GEN WB02K0012
232	GEN WB34K0004
232	GEN WB34K0003
234	GEN WB02K0066
239	GEN WB63K0001
241	RANGE BOTTOM
242	GEN WB63K0005
243	GEN WB63K0006
243	GEN WB63K0007
244	GEN WB02K0001
245	GEN WB02X7701
246	GEN WB63K0031
247	GEN WB53K0001
248	GEN WB53K0002
249	GEN WB53K0003
250	GEN WB53K0010
251	WB2K3 GE Angle Support
254	GEN WB10K0014
254	GEN WB01K0053
254	GEN WB10K0013
256	GEN WB32K0001
257	GEN WB38K0004
258	GEN WB38K0003
260	WB32K2 GE Oven Gasket Seal
261	GEN WB35K0001
262	WB35K16 GE Oven Back Insulation
267	GEN WB06K0002
420	GEN WB34K0016
713	WB39K33 GE Support
