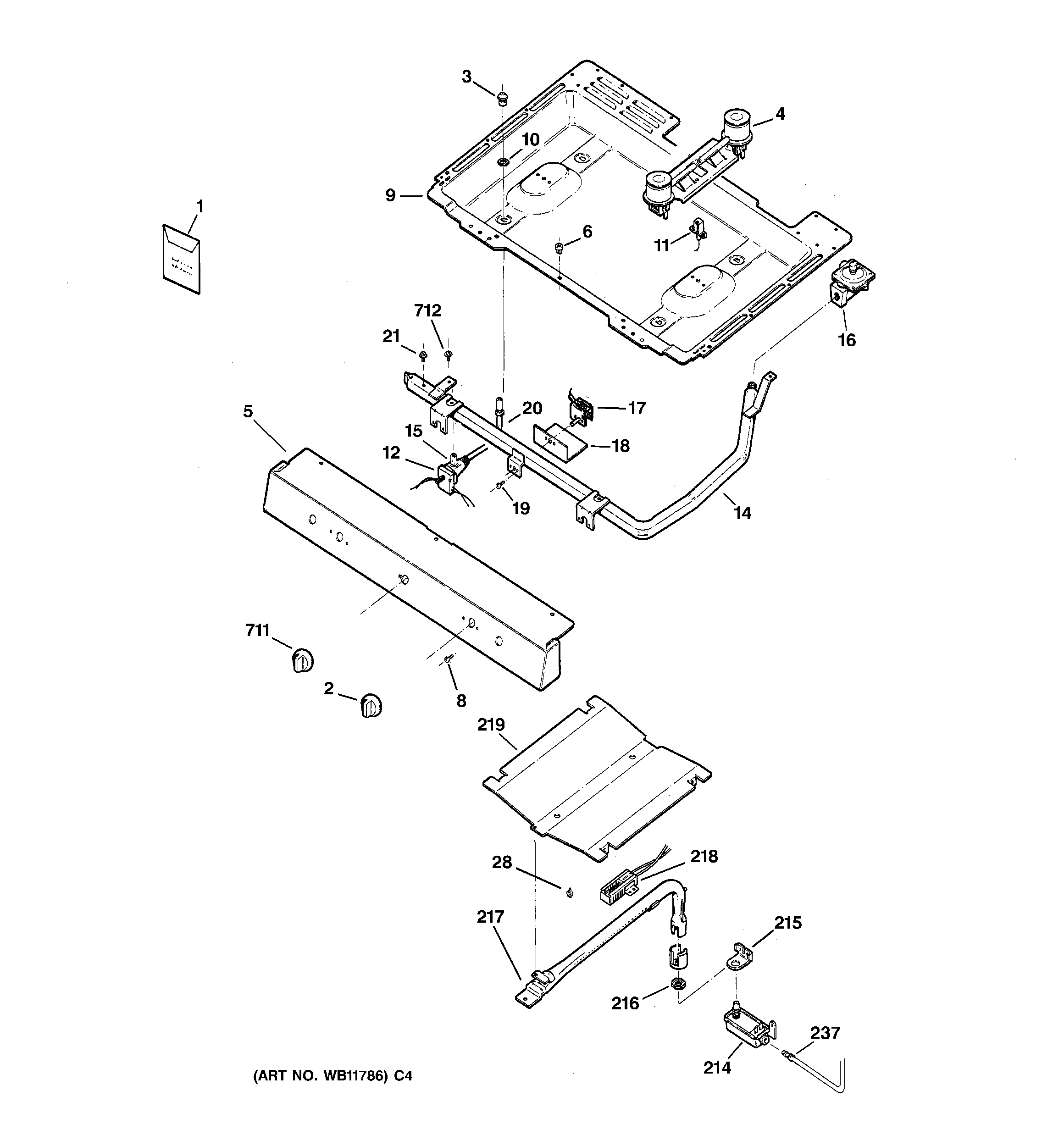

JGBS04BEA1AD GAS & BURNER PARTS

JGBS04BEA1AD GAS & BURNER PARTS

Written by

in

JGBS04BEA1AD GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-20621
1WB28K10564 GE Oven Conversion Kit Assembly
1GEN 49-5584
1WB2K20 GE Oven Bracket Assembly
2GEN WB03K10032
3WB28K10033 GE Oven Orifice Spud
3WB28K10376 GE Oven Orifice
4WB16K10026 GE Oven Range Cooktop Double Burner
5GEN WB36K10054
6GEN WB02K0009
8WB01K10002 GE Oven Screw 8-32
9GEN WB63K10001
10GEN WB01K0004
11WB18X26988 GE Oven Top Spark Electrode
12GEN WB24K10002
14GEN WB28K10013
15WB21K39 GE Oven Top Burner Valve
16PRESSURE REGULATOR
17WB20K8 GE Oven Thermostat Temperature Control
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20WB28K10011 GE Oven Rear Burner Tube
20WB28K10012 GE Oven Rear Burner Tube
20WB28K10009 GE Oven Burner Tube
20WB28K10010 GE Oven Front Tube Assembly
21WB1K83 GE Oven Screw
28WB1X1293 GE Oven Screw
214WB19K31 GE Gas Range Oven Cooktop Safety Valve
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16K10043 GE Oven Bake Burner Without Igniter
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28K147 GE Oven Tube Valve Supply
711GEN WB03K10033
712WB1K37 GE Oven Screw
