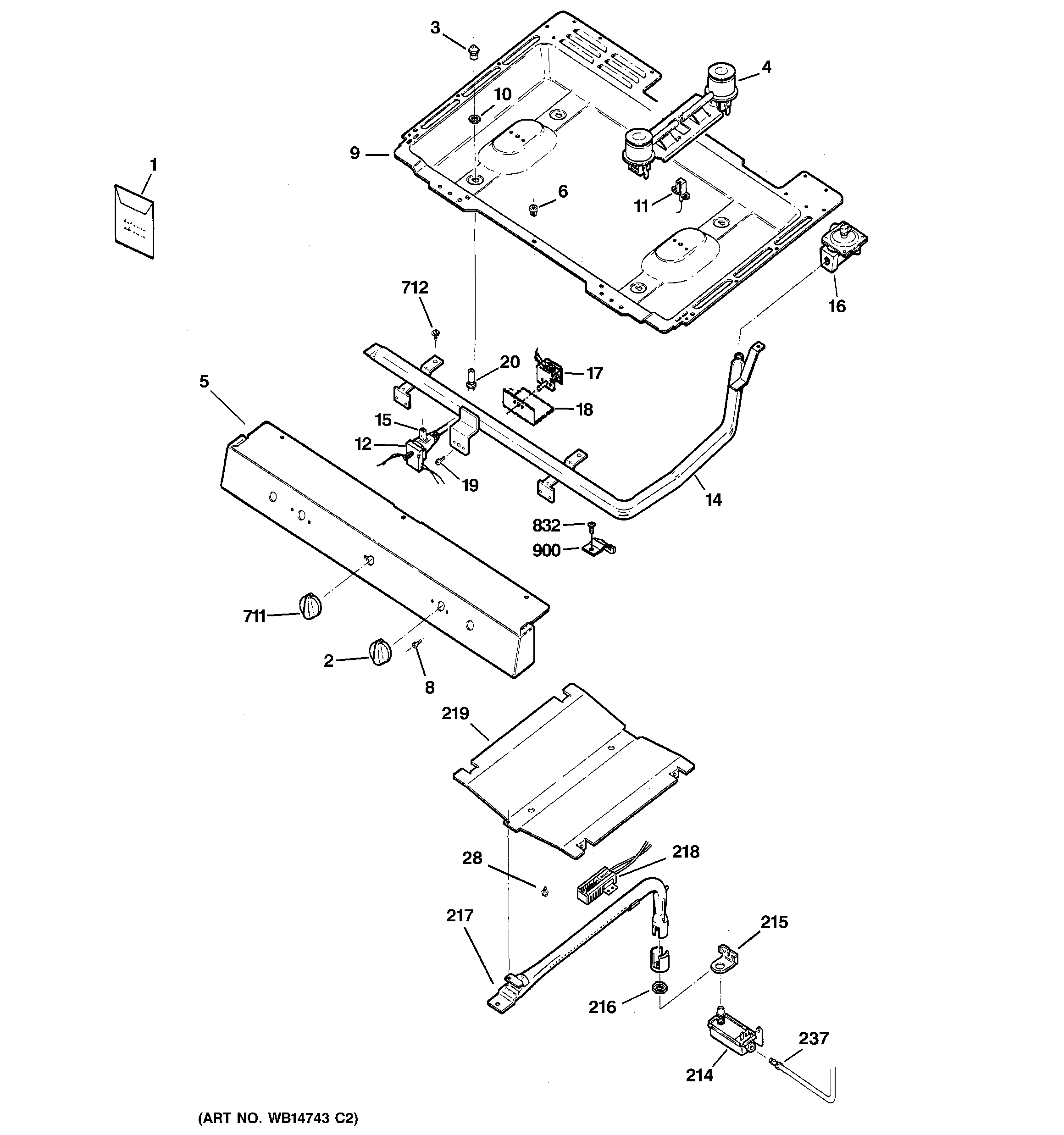

JGBS04BEM4WH GAS & BURNER PARTS

JGBS04BEM4WH GAS & BURNER PARTS

Written by

in

JGBS04BEM4WH GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21211
1GEN 49-85166
1WB28K10564 GE Oven Conversion Kit Assembly
1GEN 31-21399
2WB03K10216 GE Oven Manifold Knob
3WB28K10033 GE Oven Orifice Spud
3WB28K10376 GE Oven Orifice
4WB16K10026 GE Oven Range Cooktop Double Burner
5GEN WB36K10708
6GEN WB02K0009
8WB01K10002 GE Oven Screw 8-32
9WB64K10001 GE Oven Burner Box
10GEN WB01K0004
11WB18X26988 GE Oven Top Spark Electrode
12WB24K10065 GE Oven Burner Box Harness
14WB28K10579 GE Oven Round Manifold Pipe
15ROUND VALVE BURNER
16PRESSURE REGULATOR
17WB20K8 GE Oven Thermostat Temperature Control
18WB2K24 GE Oven Valve Cover
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20WB28K10011 GE Oven Rear Burner Tube
20WB28K10010 GE Oven Front Tube Assembly
20WB28K10009 GE Oven Burner Tube
20WB28K10012 GE Oven Rear Burner Tube
28WB1X1293 GE Oven Screw
214WB19K31 GE Gas Range Oven Cooktop Safety Valve
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10065
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237WB28K147 GE Oven Tube Valve Supply
711GEN WB03K10217
712WB1K37 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
832WB01K10043 GE Oven Screw
900WB02K10263 GE Oven Round Valve Bracket
