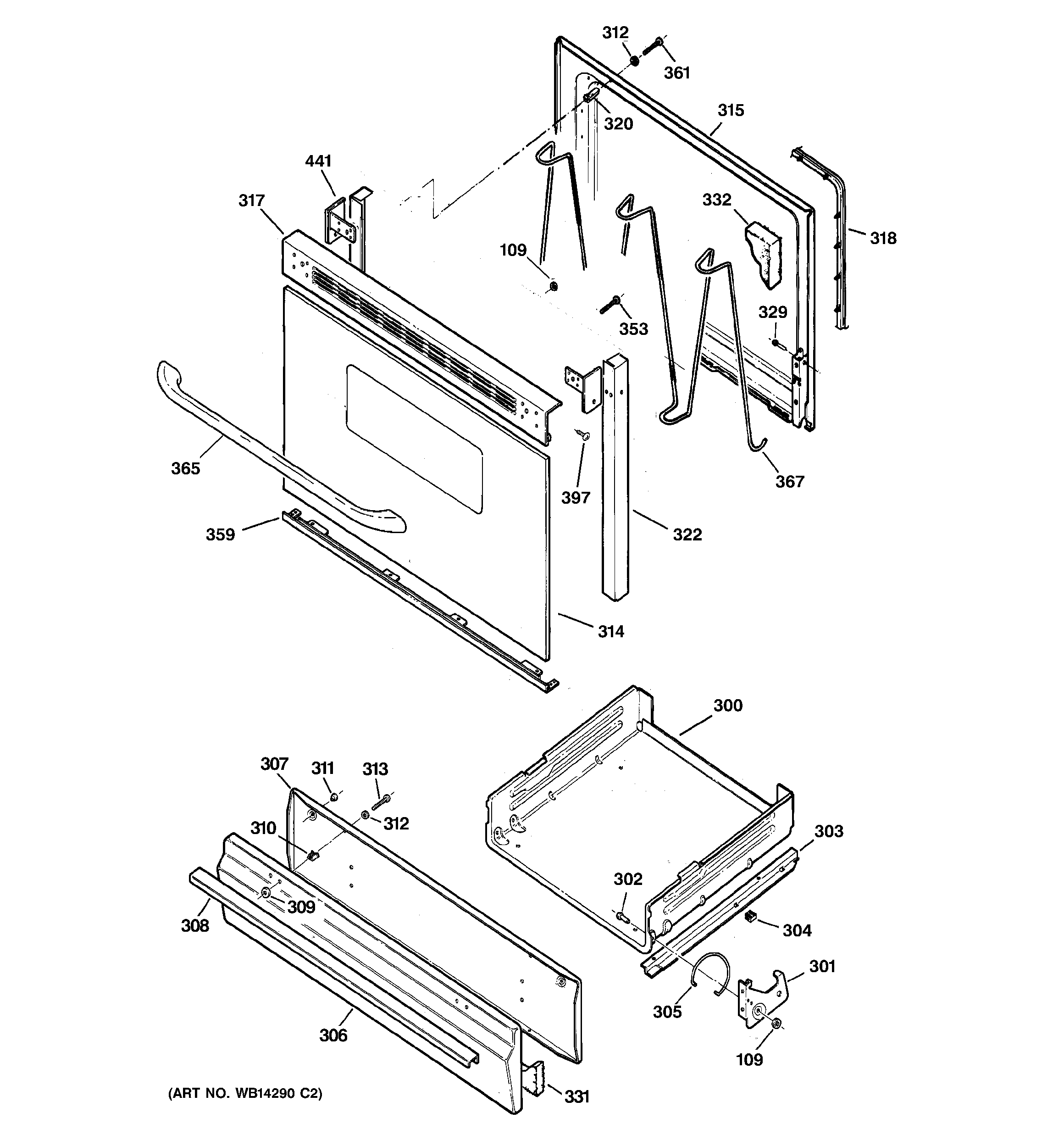

JGBS04BET2WH DOOR & DRAWER PARTS

JGBS04BET2WH DOOR & DRAWER PARTS

Written by

in

JGBS04BET2WH DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
301GEN WB10K0010
301GEN WB10K0011
302WB1K7 GE Oven Broiler Pin
302WB01K10035 GE Oven Broiler Pin
302WB01K10036 GE Washer Spring Washer
306WB56X21199 GE Oven Drawer Panel
307WB39K10042 GE Oven Drawer Liner
308WB15K10008 GE Oven Broil Handle
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
314GEN WB56K0031
315GEN WB55K10046
317WB7K403 GE Oven Top Door Trim
318WB35X29720 GE Oven Door Gasket
320WB02K10161 GE Oven Spacer
322GEN WB07K10249
322WB07K10248 GE Oven Trim Post Left
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332INSULATION DOOR
353WB1K67 GE Oven Screw 8-22
359GEN WB07K10342
359WB07K10232 GE Oven Bottom Trim Assembly
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
361WB1K63 GE Oven Screw
365WB15K10102 GE Oven Handle
367GEN WB33K0001
397WB1K62 GE Oven Door Assembly
441GEN WB07X7182
441GEN WB07X7181
