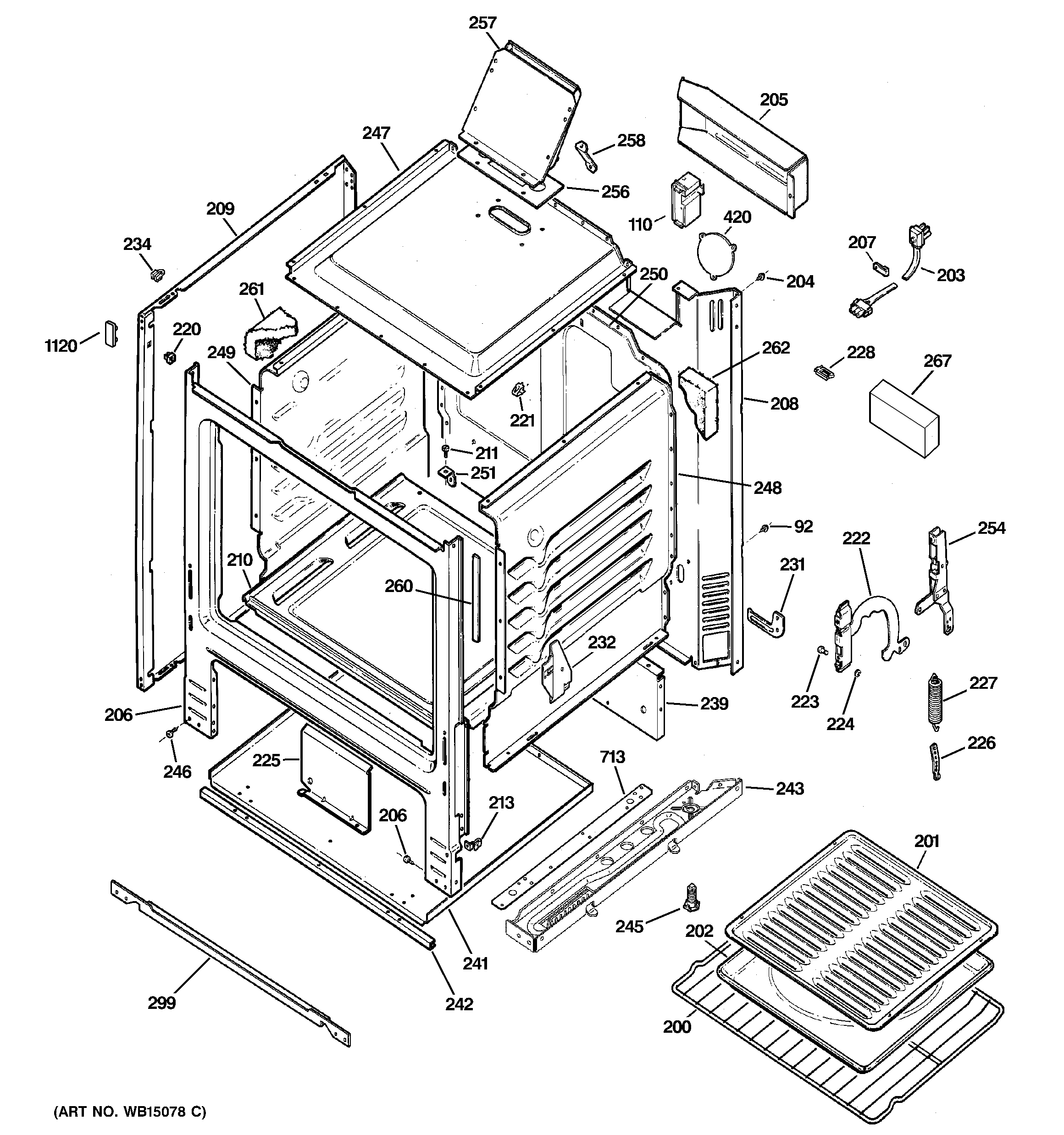

JGBS04BET3WH BODY PARTS

JGBS04BET3WH BODY PARTS

Written by

in

JGBS04BET3WH BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
110WB13X24321 GE Oven Ignition Module
200OVEN RACK
201WB48X10056 GE Broil Pan Set, Large Porcelain
203WB18K10036 GE Oven Line Cord
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
205GEN WB34K0021
207WB2K36 GE Oven Clamp Cable
208WB63K20 GE Ran Back
209WB63K10122 GE Oven Side Panel
210GEN WB35K10042
211WB1K5 GE Oven Screw 8-18 X B97
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
225GEN WB34K0002
226GEN WB02K0011
227GEN WB09K0001
228GEN WB02X7066
231GEN WB02K0012
231WB2K20 GE Oven Bracket Assembly
232GEN WB34K0004
232GEN WB34K0003
234GEN WB02K0066
239GEN WB63K0001
241WB63K10029 GE Range Bottom
242GEN WB63K0005
243WB63K10231 GE Base Support
243GEN WB63K10230
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10272
247GEN WB53K0001
248WB53K10034 GE Oven Right Side
249WB53K10035 GE Oven Left Side
250WB53K10016 GE Oven Back
251WB2K3 GE Angle Support
254SUPPORT ASM RIVET RT
254SUPPORT ASM RIVET LF
254GEN WB01K0053
256GEN WB32K0001
257GEN WB38K0004
258GEN WB38K0003
260WB32K2 GE Oven Gasket Seal
261WB35K10155 GE Oven Insulation Wrap
262WB35K10162 GE Oven Back Insulation
267GEN WB06K10002
420GEN WB34K0016
713WB39K33 GE Support
1120WB02K10179 GE Range Bumper
