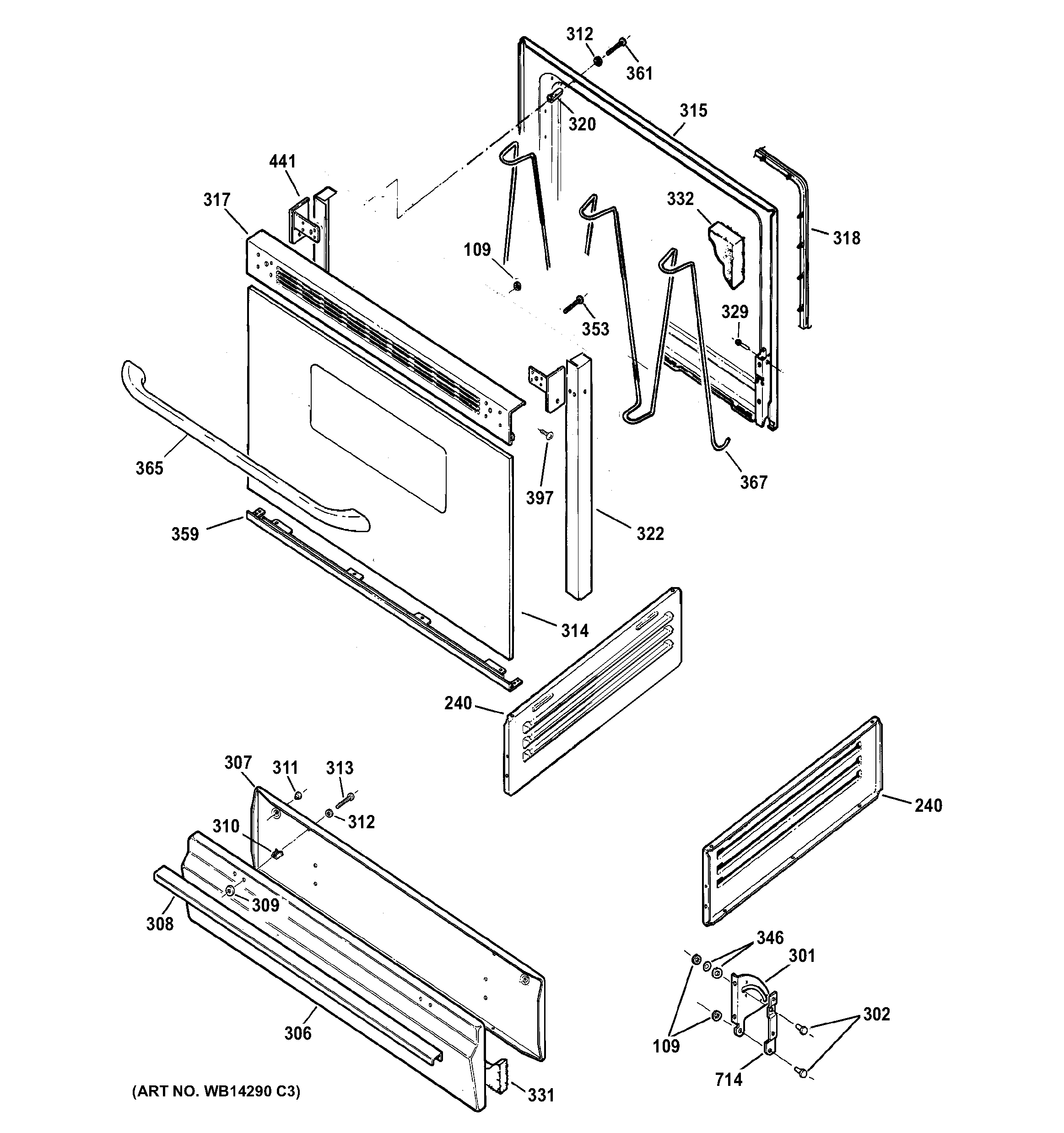

JGBS04BET3WH DOOR & DRAWER PARTS

JGBS04BET3WH DOOR & DRAWER PARTS

Written by

in

JGBS04BET3WH DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
240WB63X26890 GE Oven Broiler Panel
301GEN WB10K0010
301GEN WB10K0011
302WB01K10035 GE Oven Broiler Pin
302WB01K10036 GE Washer Spring Washer
302WB1K7 GE Oven Broiler Pin
306WB56X21199 GE Oven Drawer Panel
307WB39K10042 GE Oven Drawer Liner
308WB15K10008 GE Oven Broil Handle
309WASHER
310WB2K14 GE Oven Spacer
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
314GEN WB56K0031
315GEN WB55K10046
317WB7K403 GE Oven Top Door Trim
318WB35X29720 GE Oven Door Gasket
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332INSULATION DOOR
346GEN WB01K0038
359WB07K10232 GE Oven Bottom Trim Assembly
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
365WB15K10102 GE Oven Handle
367GEN WB33K0001
441GEN WB07X7182
441GEN WB07X7181
714WB39K34 GE Oven Broil Support Right
714WB39K35 GE Oven Left Hand Broil Support
