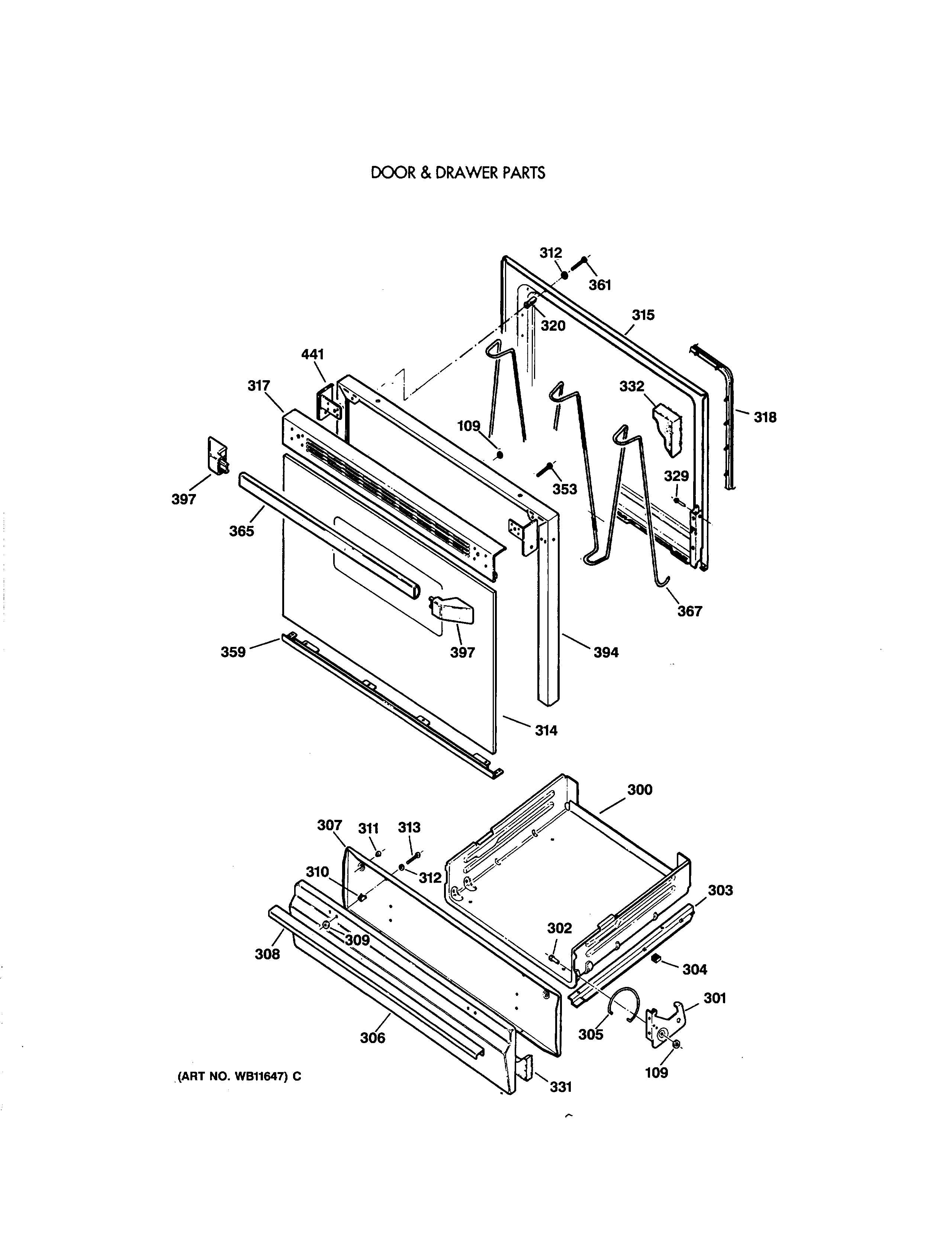

JGBS04GPV2WH DOOR & DRAWER PARTS

JGBS04GPV2WH DOOR & DRAWER PARTS

Written by

in

JGBS04GPV2WH DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K6 GE Oven Broil Hinge
301WB10K5 GE Broil Oven Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0007
303GEN WB39K0008
304WB39K9 GE Oven Broiler Slide
305GEN WB09K0002
305WB9K3 GE Oven Broil Spring
306WB56X21199 GE Oven Drawer Panel
307GEN WB39K0005
308GEN WB15K0017
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313GEN WB01K0016
314GEN WB56K0031
315GEN WB55K0028
317TRIM VENT (BK)
318WB35X29720 GE Oven Door Gasket
320GEN WB02K0084
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0004
353WB1K67 GE Oven Screw 8-22
359WB07K10232 GE Oven Bottom Trim Assembly
361GEN WB01K0069
365WB15K5076 GE Oven Door Handle
367GEN WB33K0001
394TRIM DOOR (BK)
397WB7X7183 GE Oven Black Handle Endcap
397WB1K62 GE Oven Door Assembly
441GEN WB07X7182
441GEN WB07X7181
