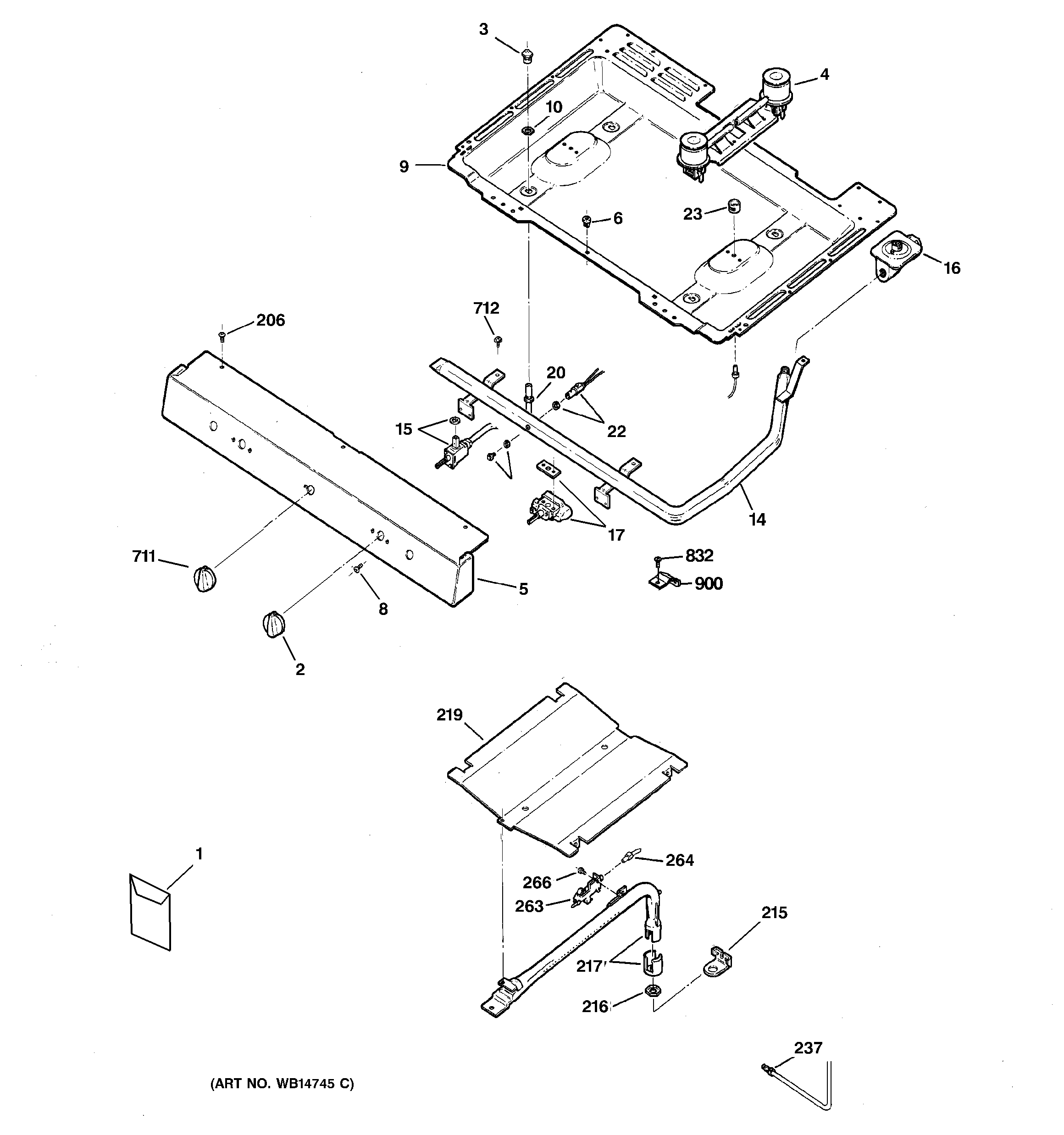

JGBS04PPM4WW GAS & BURNER PARTS

JGBS04PPM4WW GAS & BURNER PARTS

Written by

in

JGBS04PPM4WW GAS & BURNER PARTS

Products

PositionProduct
1WB28K10593 GE Oven Conversion Kit Assembly
1GEN 31-21237
1GEN 31-21402
1GEN 49-85146
2WB03K10218 GE Oven Control Knob
3WB28K10033 GE Oven Orifice Spud
3WB28K10376 GE Oven Orifice
4WB16K10026 GE Oven Range Cooktop Double Burner
5GEN WB36K10781
6GEN WB02K0009
8WB01K10002 GE Oven Screw 8-32
9WB64K10001 GE Oven Burner Box
10GEN WB01K0004
14GEN WB28K10580
15ROUND VALVE BURNER
16GEN WB19K0026
17WB20K10033 GE Oven Modulating Thermostat
17WB19K10025 GE Oven Thermocouple
20WB28K10010 GE Oven Front Tube Assembly
20WB28K10012 GE Oven Rear Burner Tube
20WB28K10009 GE Oven Burner Tube
20WB28K10011 GE Oven Rear Burner Tube
22GEN WB19K10049
23GEN WB02K0021
206WB01K10091 GE Oven Screw
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K10066
219OVEN DEFLECTOR
237WB28K10171 GE Oven Supply Tube Valve
263WB16K10061 GE Oven Burner and Pilot Assembly
263WB19K10028 GE Oven Pilot
264GEN WB28K10172
266WB1X1293 GE Oven Screw
711GEN WB03K10247
712WB1K37 GE Oven Screw
832WB01K10097 GE Range Thermostat Screw
832WB01K10043 GE Oven Screw
832WB01K10080 GE Oven Thermostat Screw
900WB02K10263 GE Oven Round Valve Bracket
900WB02K10264 GE Thermostat Bracket
