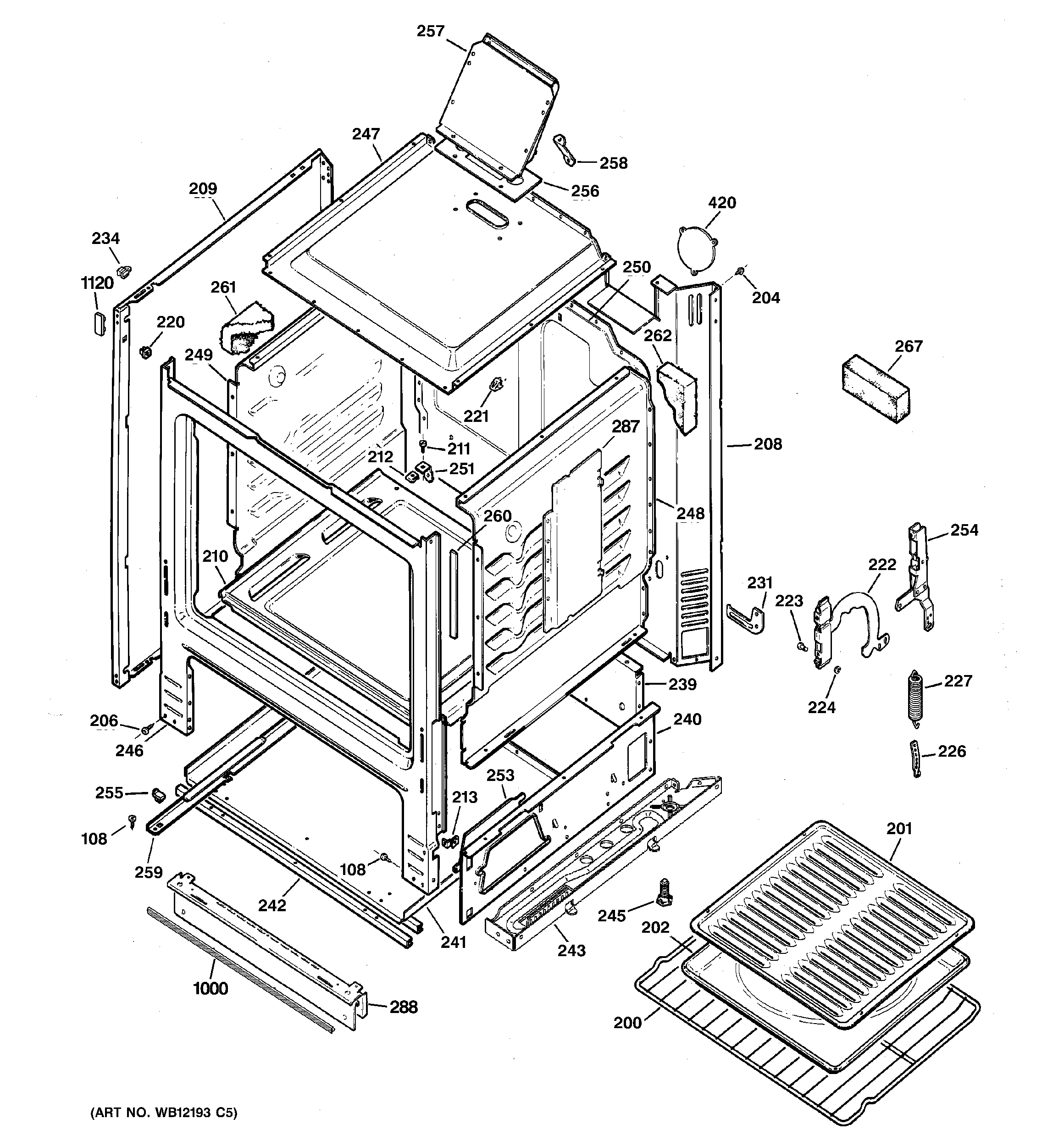

JGBS06PPM3WH BODY PARTS

JGBS06PPM3WH BODY PARTS

Written by

in

JGBS06PPM3WH BODY PARTS

Products

PositionProduct
108WB1X5364 GE Oven Mounting Screw
200WB48T10095 GE Oven Rack
201WB48X10056 GE Broil Pan Set, Large Porcelain
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
208WB63K20 GE Ran Back
209GEN WB63K10124
209WB63K10122 GE Oven Side Panel
210WB35X37973 GE Oven Bottom and Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB02K0011
227GEN WB09K0001
231GEN WB02K0012
231WB2K20 GE Oven Bracket Assembly
234GEN WB02K0066
239GEN WB63K0001
240GEN WB63K0002
240WB63K3 GE Oven Panel Side Broil
241WB63K10029 GE Range Bottom
242GEN WB63K0005
243WB63K10232 GE Oven Support Base
243WB63K10233 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10176
247GEN WB53K0001
248WB53K10034 GE Oven Right Side
249WB53K10035 GE Oven Left Side
250WB53K10016 GE Oven Back
251WB2K3 GE Angle Support
253WB2K4 GE Cover Accessory Spring
254GEN WB01K0053
254SUPPORT ASM RIVET RT
254SUPPORT ASM RIVET LF
255WB2K5 GE Oven Broiler Stop
256GEN WB32K0001
257GEN WB38K0004
258GEN WB38K0003
259GEN WB39K0002
259GEN WB39K0001
260GASKET OVEN SEAL
261WB35K10155 GE Oven Insulation Wrap
262WB35K10162 GE Oven Back Insulation
267GEN WB06K0002
287GEN WB34K0031
287WB34K30 GE Radiation Guard
288BRACE
420GEN WB34K0016
1000WB04K10021 GE Oven Front Frame Gasket
1120WB02K10179 GE Range Bumper
1120WB02K10180 GE Oven Bumper
