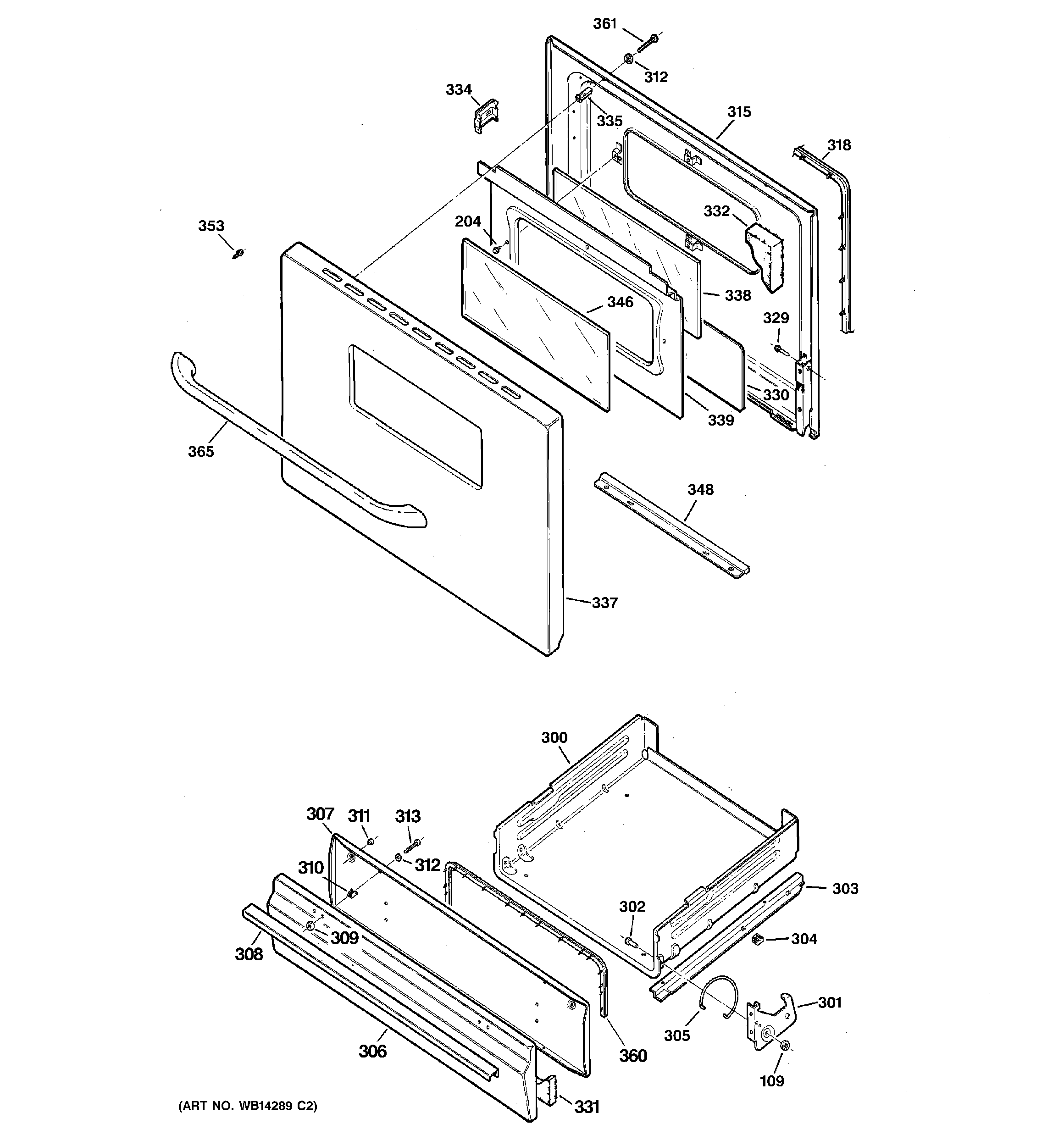

JGBS07DEM1BB DOOR & DRAWER PARTS

JGBS07DEM1BB DOOR & DRAWER PARTS

Written by

in

JGBS07DEM1BB DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB1X5364 GE Oven Mounting Screw
300WB39K6 GE Oven Broil Weld
301WB10K6 GE Oven Broil Hinge
301WB10K5 GE Broil Oven Hinge
302WB1K7 GE Oven Broiler Pin
303WB39K10029 GE Oven Broiler Pan Slide
303WB39K10030 GE Oven Broiler Pan Slide
304WB39K9 GE Oven Broiler Slide
305WB9K3 GE Oven Broil Spring
305GEN WB09K0002
306GEN WB36K10274
307GEN WB39K10031
308GEN WB15K10034
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
315GEN WB55K10043
318WB35X29720 GE Oven Door Gasket
329WB1X558D GE Oven Screw Package
330GEN WB55K0001
331GEN WB35K0003
332GEN WB35K0005
334GEN WB02K10160
335WB02K10156 GE Oven Spacer
337WB56K10046 GE Oven Door Panel
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
346WB56K25 GE Oven Wind Crystal
348GEN WB02K0050
353WB01K10012 GE Oven Screw 8-22 PL 1HX
360GEN WB04K10023
361WB02X32438 GE Door Handle Screw
365WB15T10161 GE Oven Black Door Handle
