JGBS09PEF1WW CONTROL PANEL & COOKTOP

JGBS09PEF1WW CONTROL PANEL & COOKTOP

Written by

in

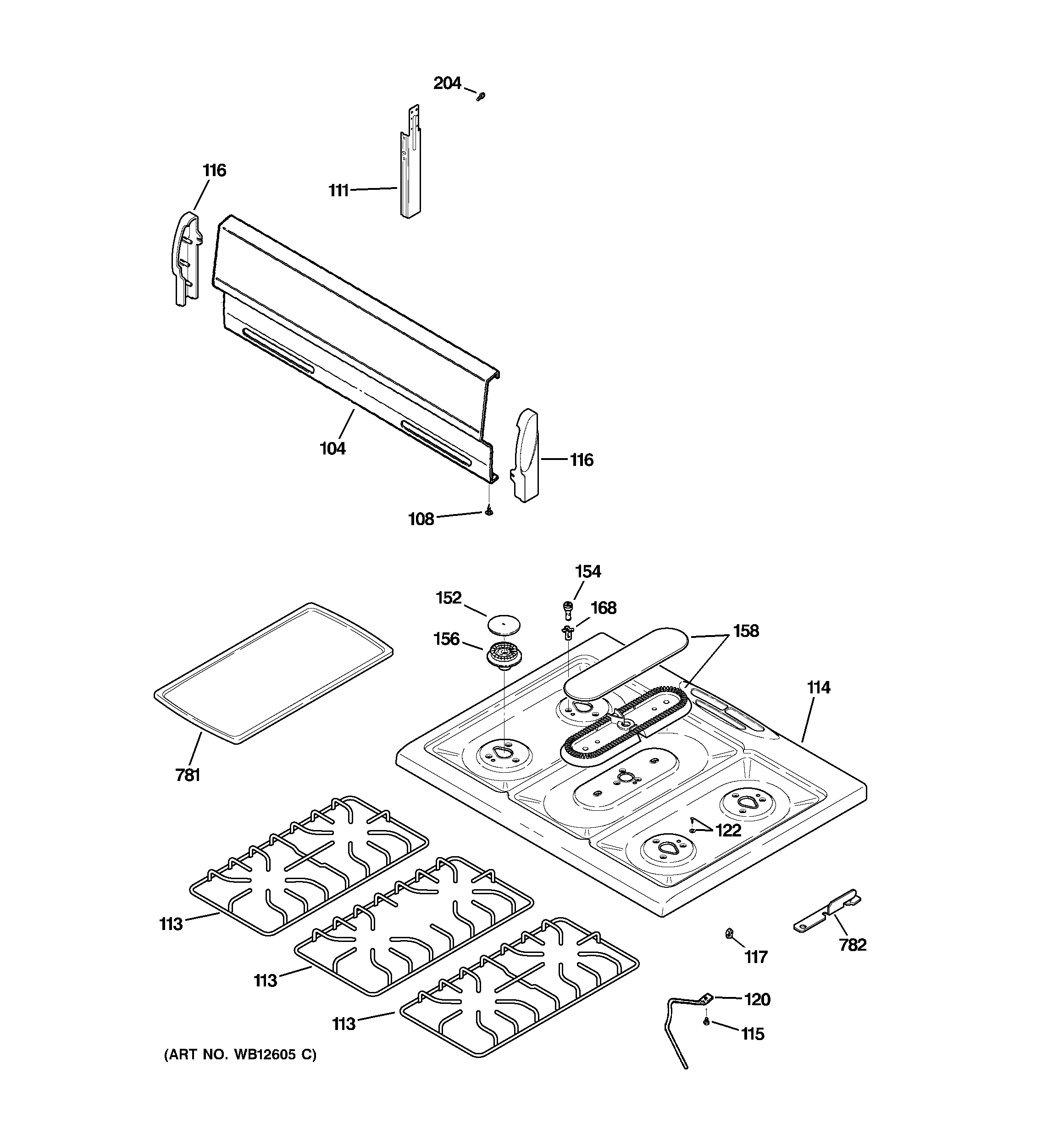

JGBS09PEF1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
104GEN WB36K10288
108WB1X5364 GE Oven Mounting Screw
111GEN WB02K0095
113GEN WB31K10069
113GEN WB31K10070
114GEN WB62K10065
115WB1K45 GE Oven Screw and Washer Assembly
116GEN WB07K0387
116GEN WB07K0386
117GEN WB02K0017
120WB2K91 GE Oven Top Support
122GEN WB01K10008
152WB29K10001 GE Oven Burner Cap
154GEN WB13K10003
156WB16K10055 GE Oven Burner Base
158CENTRAL BURNER ASM
168WB01K10112 GE Range Oven Electrode Clip
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
781GEN WB31K10068
782GEN WB02K10056
782GEN WB02K10057
