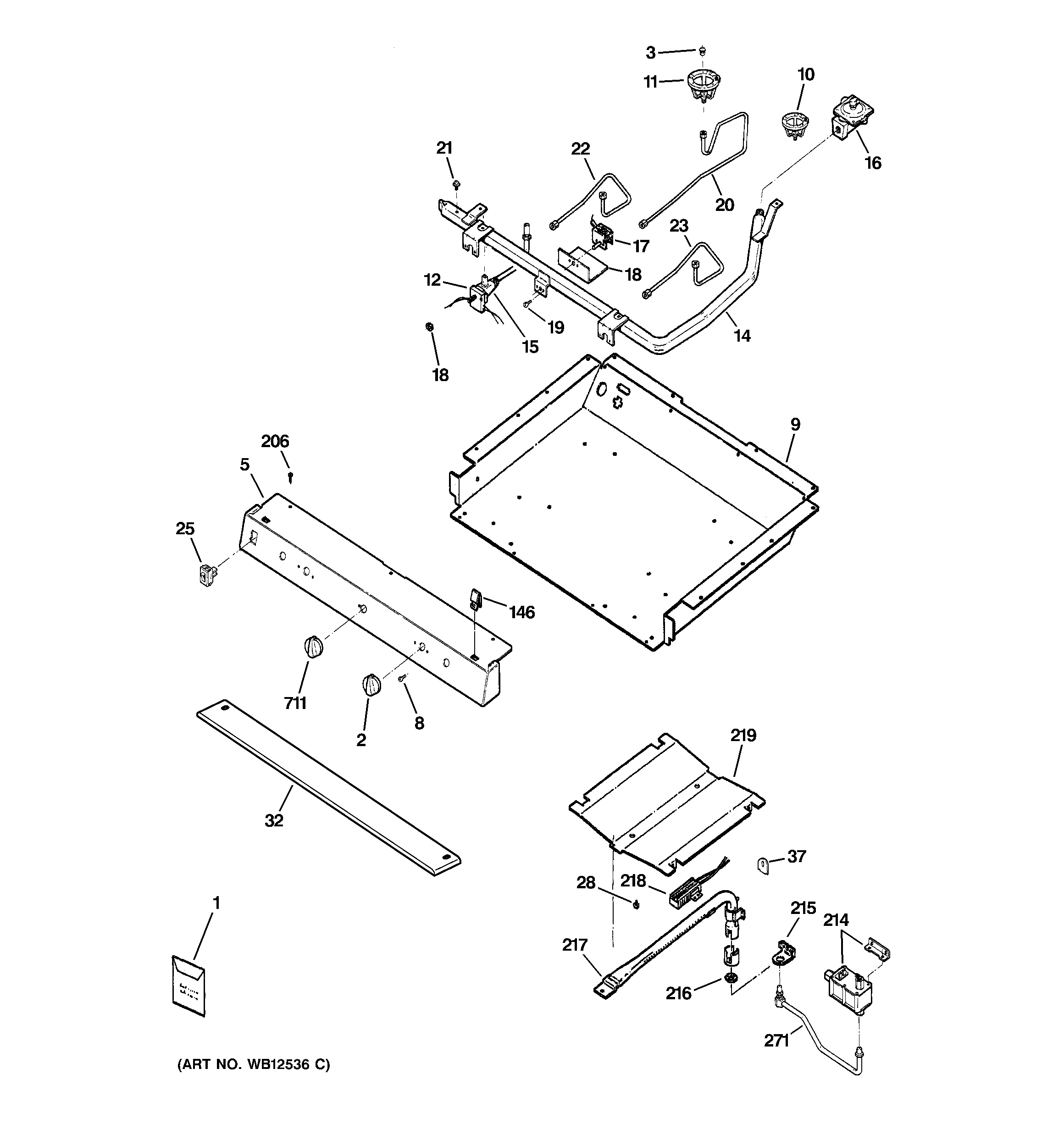

JGBS09PEF1WW GAS & BURNER PARTS

Products

Position	Product
1	GEN WB28K10112
1	WB2K20 GE Oven Bracket Assembly
1	GEN 31-20641-1
1	GEN 31-21055
1	GEN 49-85037
2	WB03K10034 GE Oven Burner Knob
3	ORIFCE-LP LG .85 MM
3	ORIFICE-LP SM .76 MM
3	GEN WB28K10121
3	ORIFICE-LP MED .81 MM
3	GEN WB28K10122
3	GEN WB28K10123
5	GEN WB36K10287
8	WB01K10029 GE Oven Screw 832 1/8
9	GEN WB63K10036
10	GEN WB02K10007
11	GEN WB02K10006
12	GEN WB18K10015
14	GEN WB28K10119
15	GEN WB21K10010
15	WB21K12 GE Oven Burner Control Valve
15	GEN WB21K0020
16	PRESSURE REGULATOR
17	WB20K8 GE Oven Thermostat Temperature Control
18	WB2K24 GE Oven Valve Cover
18	COVER THERMOSTAT
19	WB1K8 GE Oven Thermostat Screw
20	GEN WB28K10131
20	GEN WB28K10130
21	WB1K83 GE Oven Screw
22	GEN WB28K10128
22	GEN WB28K10129
23	GEN WB28K10127
25	WB24K5022 GE Oven Rocker Switch
28	WB1X1293 GE Oven Screw
32	GEN WB35K10030
37	WB34K14 GE Igniter Cover
146	GEN WB02K0052
206	WR01X10065 GE Screw
214	WB19K31 GE Gas Range Oven Cooktop Safety Valve
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	WB16K10043 GE Oven Bake Burner Without Igniter
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
271	GEN WB28K10120
711	GEN WB03K10131
