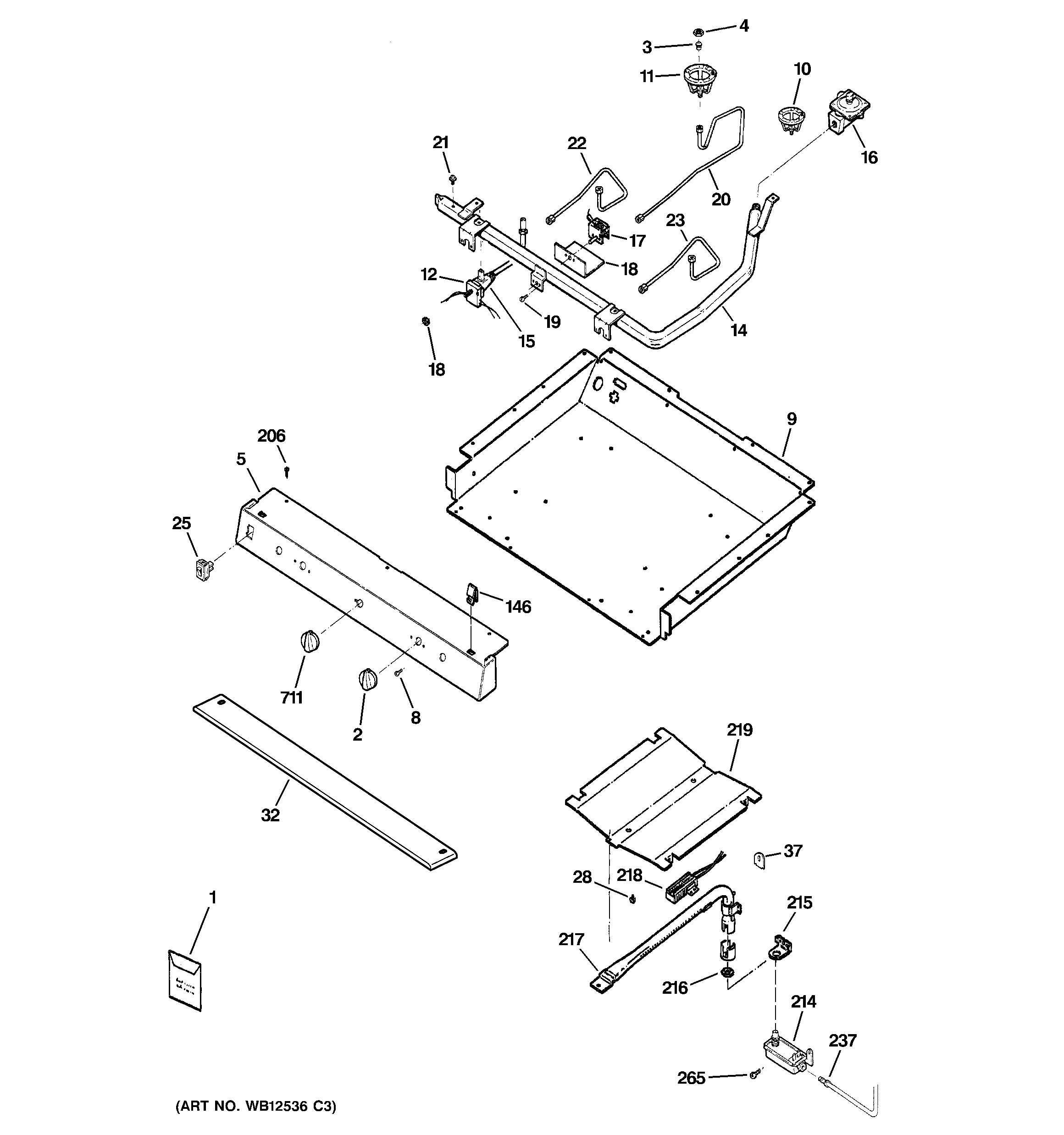

JGBS09PEH5WW GAS & BURNER PARTS

Products

Position	Product
1	GEN 31-21159
1	GEN WB28K10112
1	GEN 49-85091
2	WB03K10143 GE Oven Burner Knob
3	ORIFICE-LP MED .81 MM
3	ORIFCE-LP LG .85 MM
3	ORIFICE-LP SM .76 MM
4	WB01K10037 GE Oven Economic Nut
5	GEN WB36K10470
8	WB01K10029 GE Oven Screw 832 1/8
9	GEN WB63K10036
10	WB02K10360 GE Oven Circuit Bracket Small
11	WB02K10361 GE Oven Orifice Holder
12	GEN WB24K10023
12	GEN WB24K10024
14	GEN WB28K10248
15	GEN WB21K10039
15	GEN WB21K10038
15	GEN WB21K10049
16	PRESSURE REGULATOR
17	WB20K8 GE Oven Thermostat Temperature Control
18	WB2K24 GE Oven Valve Cover
18	COVER THERMOSTAT
19	WB1K8 GE Oven Thermostat Screw
20	REAR ORIFICE HOLDER LF
20	REAR ORIFICE HOLDER RT
21	WB1K83 GE Oven Screw
22	FRONT ORIFICE HOLDER LF
22	FRONT ORIFICE HOLDER RT
23	GEN WB28K10197
25	WB24K5022 GE Oven Rocker Switch
28	WB1X1293 GE Oven Screw
32	GEN WB35K10030
37	WB34K14 GE Igniter Cover
146	GEN WB02K0052
206	WR01X10065 GE Screw
214	SAFETY VALVE SINGLE
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	WB16K10043 GE Oven Bake Burner Without Igniter
218	WB13K10013 GE Oven Burner Igniter Assembly
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
237	GEN WB28K10120
265	GEN WB04X0366
711	GEN WB03K10183
