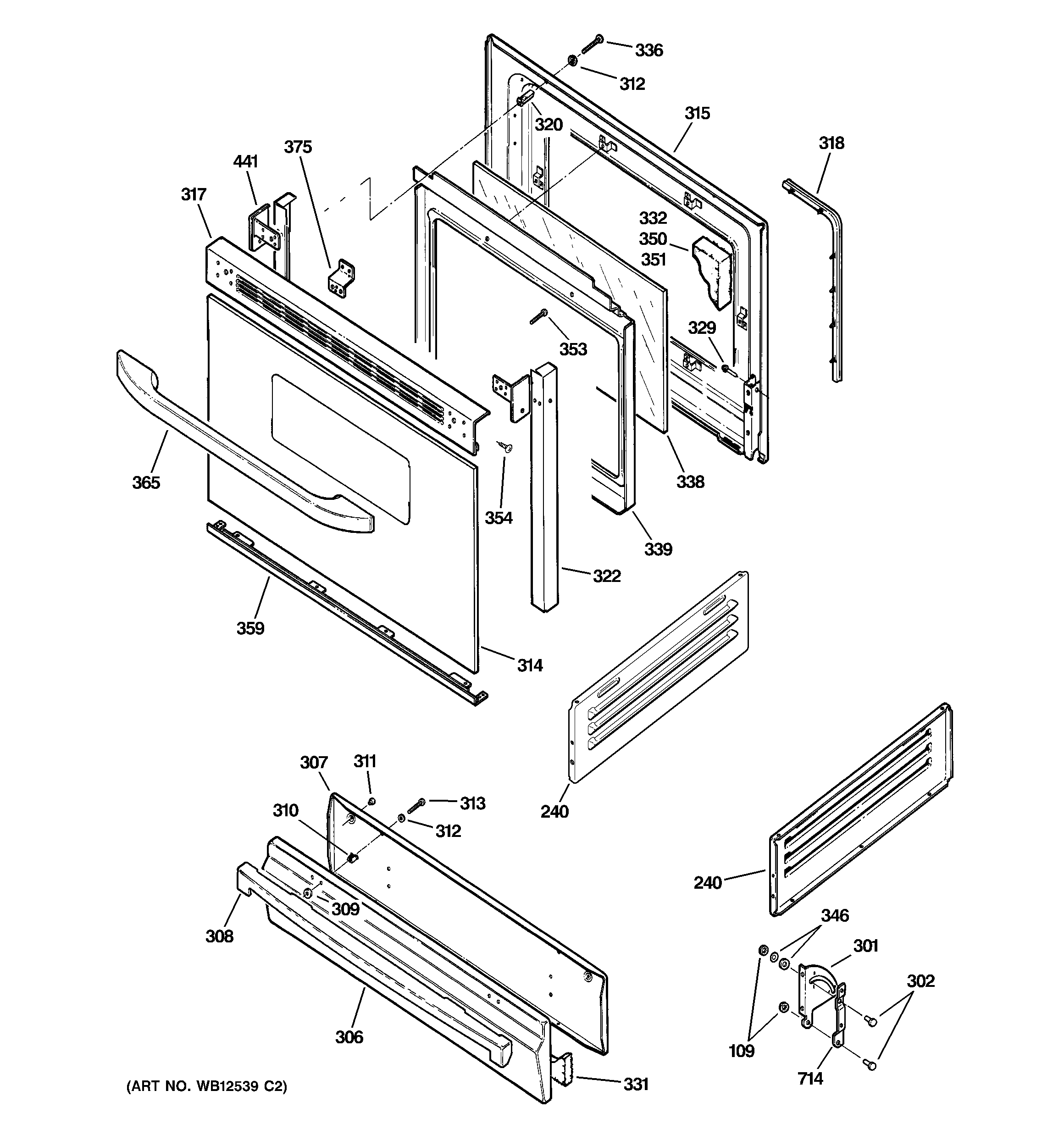

JGBS10CEF1CC DOOR & DRAWER PARTS

JGBS10CEF1CC DOOR & DRAWER PARTS

Written by

in

JGBS10CEF1CC DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
240GEN WB63K0029
301GEN WB10K0011
301GEN WB10K0010
302GEN WB01K0040
302WB1K7 GE Oven Broiler Pin
306WB55K10010 GE Drawer Panel Bisque
307GEN WB39K0037
308WB15K10029 GE Oven Broil Handle (Bisque)
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
313WB1K63 GE Oven Screw
314GEN WB57K10062
315GEN WB55K0021
317WB36K10212 GE Top Door Trim (Bisque)
318WB35X29720 GE Oven Door Gasket
320WB1K10 GE Oven Grommet Handle
320GEN WB02K0084
322TRIM DOOR LF (BSQT)
322GEN WB07K10161
329WB1X558D GE Oven Screw Package
331GEN WB55K0001
332GEN WB35K0005
336GEN WB01K0069
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
346WB1K39 GE Washer Spring
346GEN WB01K0038
350GEN WB35K0013
351GEN WB35K0014
353WB1K67 GE Oven Screw 8-22
354WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
359WB07K10269 GE Oven Bottom Trim Assembly
365HANDLE DOOR (BSQT)
375WB02K10245 GE Oven Door Bracket
441GEN WB07K10129
441GEN WB07K10128
714WB39K34 GE Oven Broil Support Right
714WB39K35 GE Oven Left Hand Broil Support
