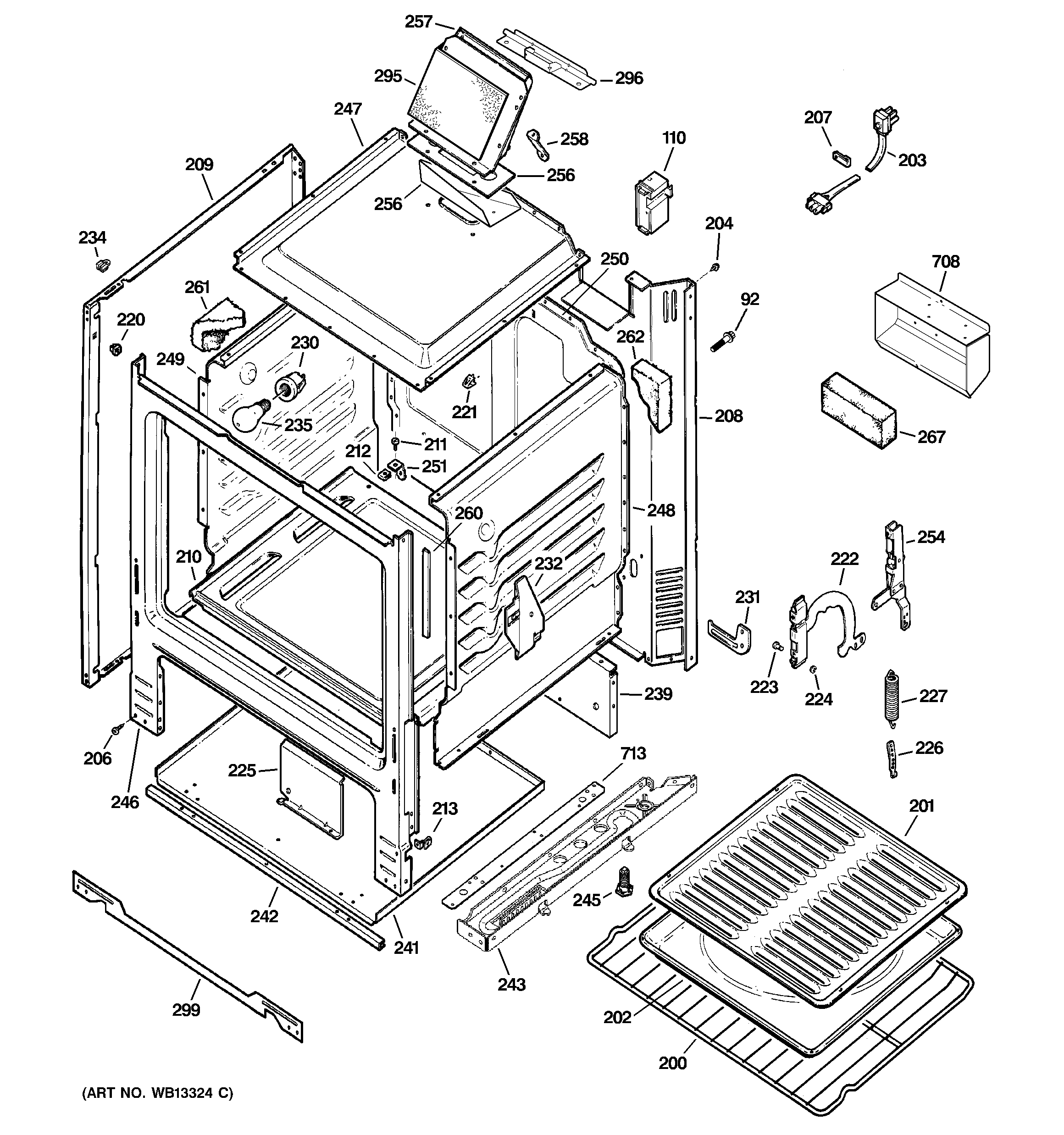

JGBS10CEH2CC BODY PARTS

JGBS10CEH2CC BODY PARTS

Written by

in

JGBS10CEH2CC BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
110GEN WB18K10016
110GEN WB13K10010
110GEN WB18K10021
110GEN WB18K10026
200OVEN RACK
201GEN WB48K0002
202GEN WB49K0002
202WB48X10056 GE Broil Pan Set, Large Porcelain
203WB18K10036 GE Oven Line Cord
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WR01X10065 GE Screw
207WB2K36 GE Oven Clamp Cable
208GEN WB63K10034
209GEN WB62K10039
210WB35X37973 GE Oven Bottom and Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
225GEN WB34K0002
226GEN WB02K0011
227GEN WB09K0001
230WB08T10026 GE Range Push-In Receptacle
231GEN WB02K0012
231WB2K20 GE Oven Bracket Assembly
232GEN WB34K0003
232GEN WB34K0004
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
239GEN WB63K0001
241WB63K10029 GE Range Bottom
242GEN WB63K0005
243WB63K10232 GE Oven Support Base
243WB63K10233 GE Oven Support Base
245WB02X10521 GE Oven Leveling Leg
246GEN WB63K10035
247GEN WB53K0001
248GEN WB53K0002
249GEN WB53K0003
250GEN WB53K10014
251WB2K3 GE Angle Support
254GEN WB01K0053
254GEN WB10K0014
254GEN WB10K0013
256GEN WB32K0001
257GEN WB38K0004
258GEN WB38K0003
260WB32K2 GE Oven Gasket Seal
261GEN WB35K0001
262GEN WB35K0017
267GEN WB06K10002
295GEN WB36K10282
296GEN WB38K10007
296GEN WB34K10059
299WB1K43 GE Oven Support Bracket
708GEN WB34K0018
713WB39K33 GE Support
