JGBS10DEF1BB CONTROL PANEL & COOKTOP

JGBS10DEF1BB CONTROL PANEL & COOKTOP

Written by

in

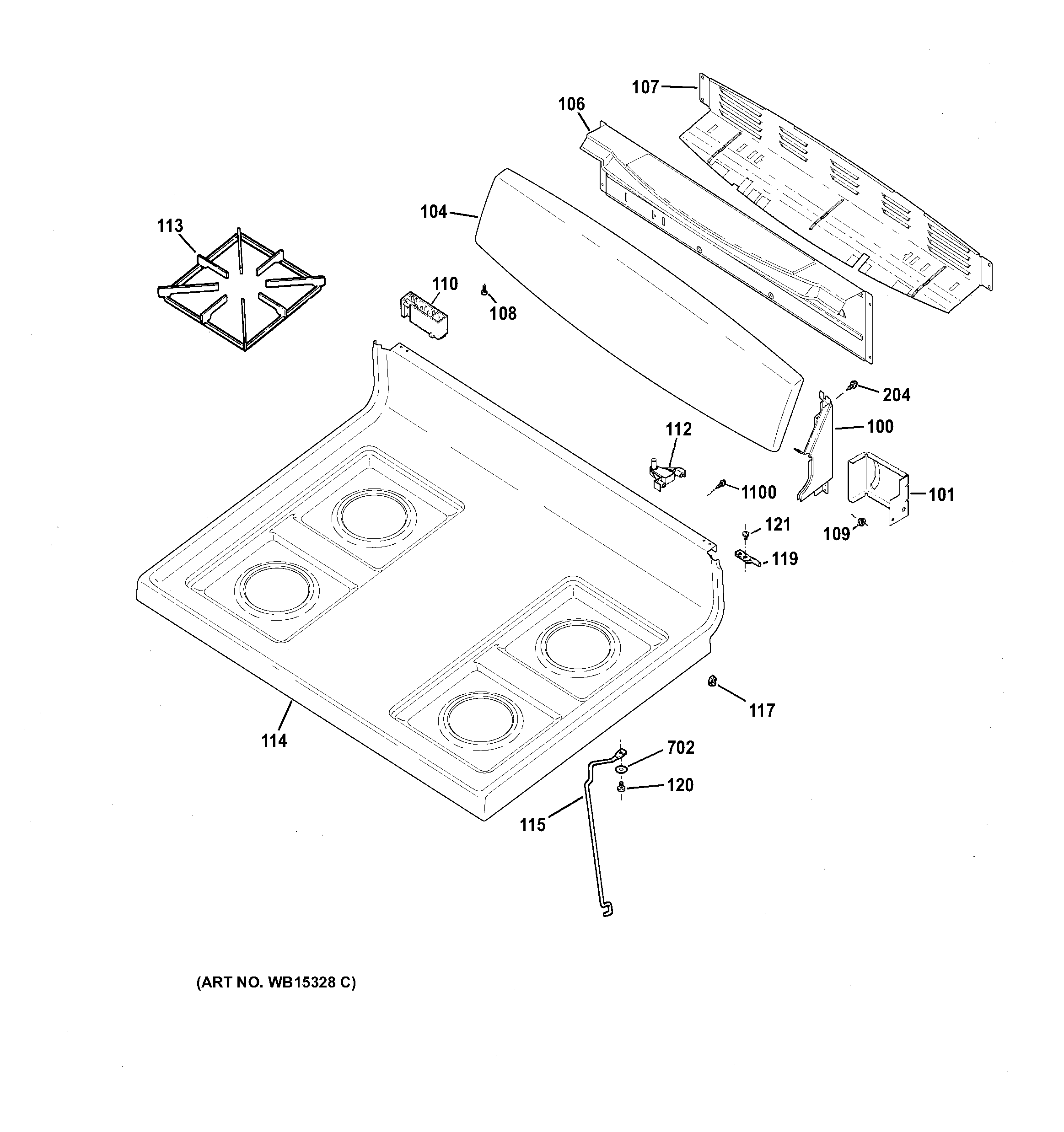

JGBS10DEF1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
100WB07X20197 GE Range Left End Support
100WB07X20194 GE Range Right End Support
101WB37X20196 GE Cooktop Bracket
101WB37X20193 GE Cooktop Bracket
104WB36X21588 GE Oven Trim Control
106COVER BACK UPPER
107GEN WB34K10094
108GEN WB01X5874
109GEN WB01X5743
110WB13X24321 GE Oven Ignition Module
112WB14K2 GE Oven Left Handle
112GEN WB14K0001
113WB31K10033 GE Oven Burner Grate
114WB62X21213 GE Rantop Standard
115GEN WB06K0008
117WB14K10004 GE Oven Pin Locator
117GEN WB02K0017
119WB14K3 GE Oven Right Side Glide
119WB14K4 GE Left Slide Glider
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
204WB1K84 GE Oven Screw and
204WB1K5062 GE Oven Screw
1100WB01T10016 GE Oven Screw 8-18 AB Hex
