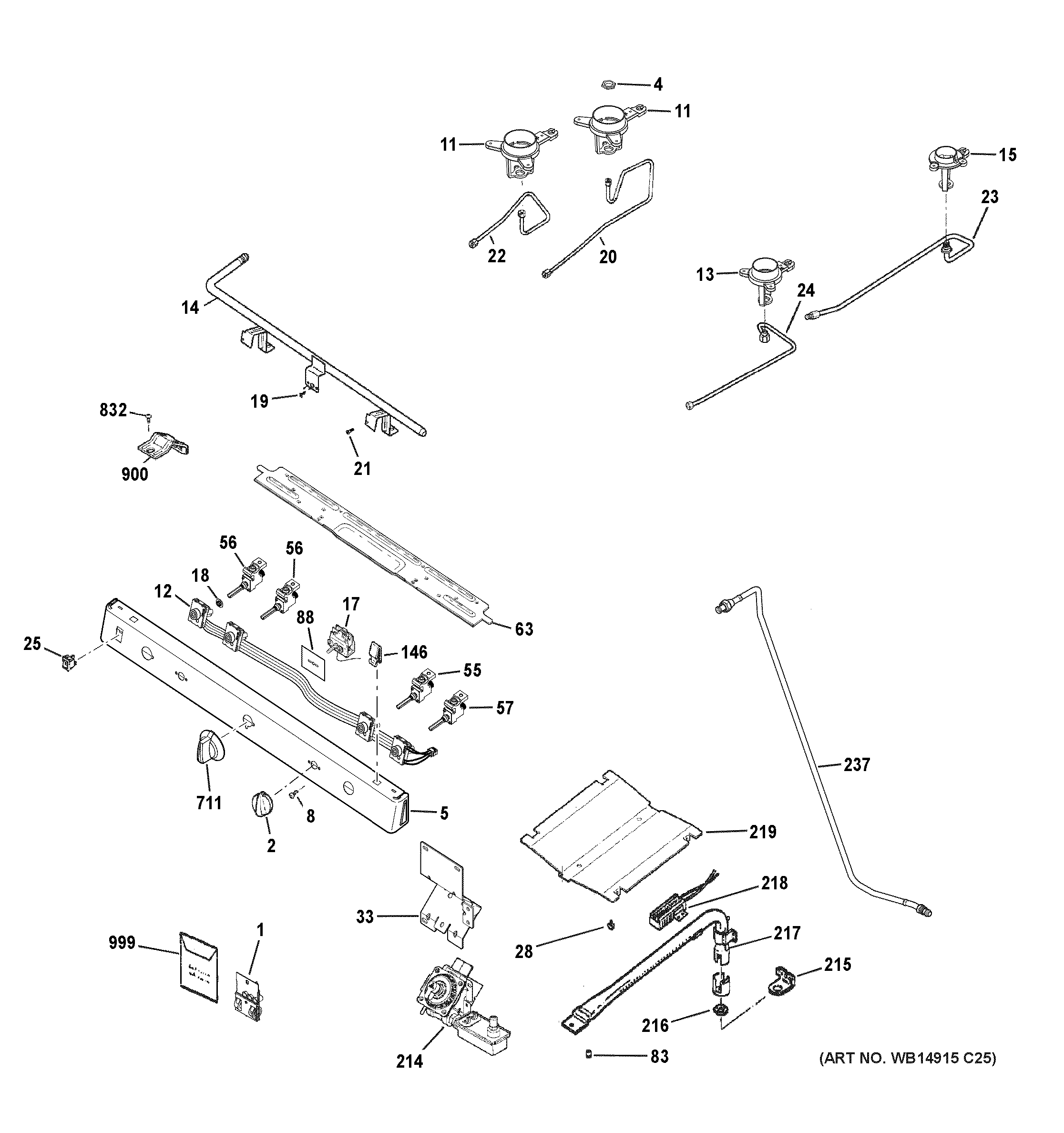

JGBS10DEM1BB GAS & BURNER PARTS

JGBS10DEM1BB GAS & BURNER PARTS

Written by

in

JGBS10DEM1BB GAS & BURNER PARTS

Products

PositionProduct
1LP CONVERSION KIT
1HA CONVERTION KIT ASM
2WB03X21227 GE Oven Knob Valve
4WB01K10037 GE Oven Economic Nut
5WB36X31440 GE Oven Black Manifold Panel
8WB01K10002 GE Oven Screw 8-32
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12WB18X31210 GE Oven Burner Box Harness
13WB02X24726 GE Range Injector Large
14WB28K10427 GE Oven Manifold Pipe
15WB02X24728 GE Range Small Injector
17ELECTRIC THERMOSTAT
18WB2K24 GE Oven Valve Cover
19WB01K10080 GE Oven Thermostat Screw
20WB28X26308 GE Oven L Rear Orifice Holder
21WB1K8 GE Oven Thermostat Screw
22WB28X26306 GE Oven Left Front Orifice Holder
23WB28X26309 GE Oven Surface Burner Orifice Holder
24FRONT ORIFICE HOLDER
25WB24X20458 GE Range Rocker Switch
28WB1X1293 GE Oven Screw
33WB02X22890 GE Oven Regulator Bracket
55WB21K10169 GE Oven Burner Valve Round 140
56ROUND VALVE BURNER
57WB21K10170 GE Oven Round Burner Valve 140
63WB34X20680 GE Support Manifold
83WB28X21079 GE Oven Spud Orifice
88COVER THERMOSTAT
146GEN WB02K0052
214WB21X26605 GE Oven Valve Control Assembly
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16X20253 GE Oven Burner Assembly
218WB13K21 GE Oven Igniter with 7 Leads
219OVEN DEFLECTOR
237TUBE MANIFOLD SUPPLY ASSEMBLY
711WB03X21219 GE Oven Thermostat Knob Assembly
832WB01K10043 GE Oven Screw
900WB02K10263 GE Oven Round Valve Bracket
999PM MANUAL MINI & WD ASM
999PM GAS QUICK GUIDE
999PM INSTALL INSTRUCTIONS
999WB49X21392 GE Oven Hinge Service Kit
999PM INSTALL INSTRUCTIONS
