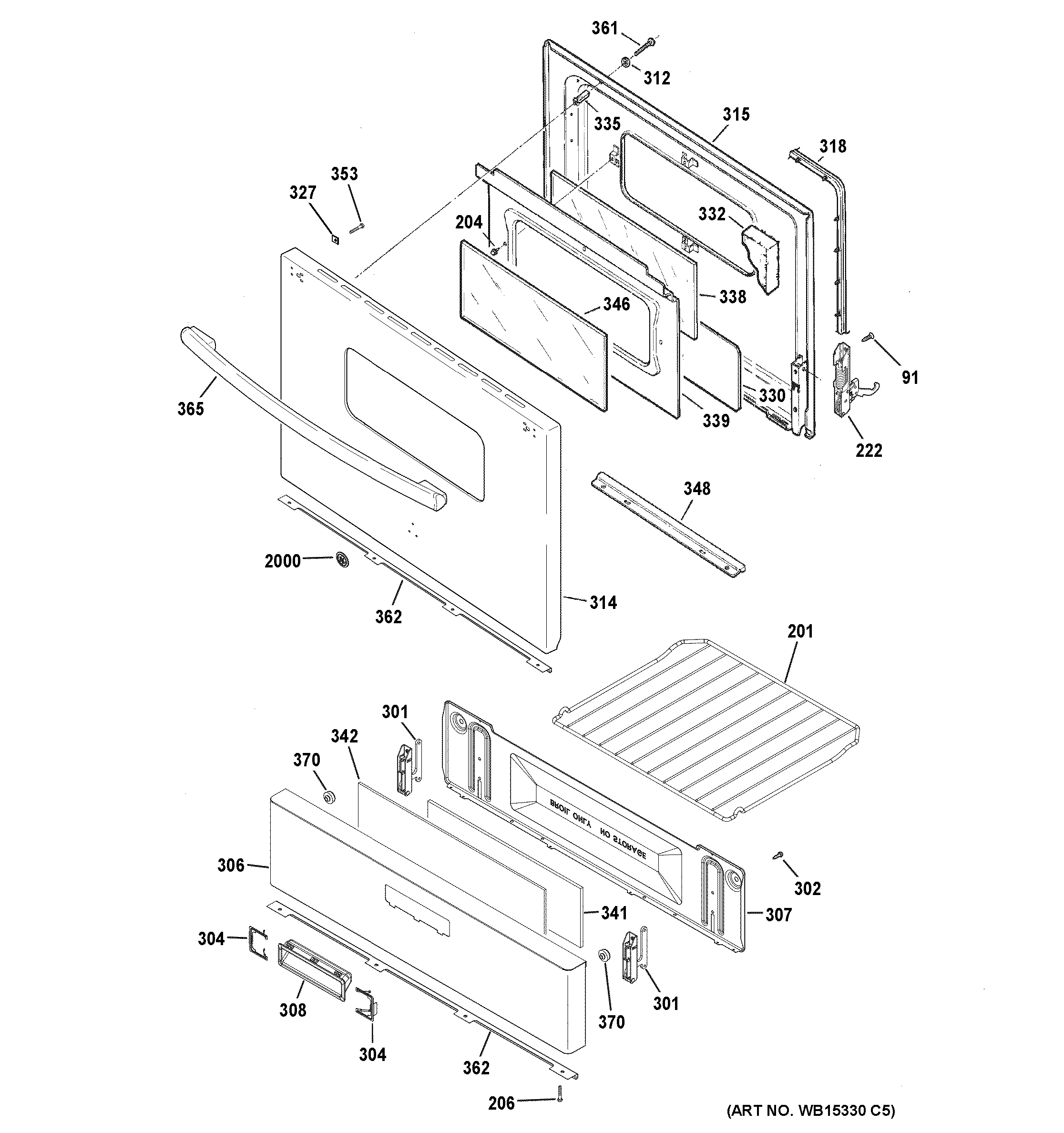

JGBS10DEM2WW DOOR & DRAWER PARTS

JGBS10DEM2WW DOOR & DRAWER PARTS

Written by

in

JGBS10DEM2WW DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
201WB48X26677 GE Oven Rack
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
222WB10X21977 GE Oven Door Hinge
301WB10X26678 GE Oven Door Hinge
302WB01K10097 GE Range Thermostat Screw
304WB01X26891 GE Range Broil Element Clip
306WB56X26688 GE Oven Drawer Panel
307WB56X26676 GE Oven Drawer Liner
308WB15X26670 GE Broil Handle
312WB02X32440 GE Washer Contoured
314WB56X21232 GE Oven Door Panel
315WB56X21217 GE Oven Door Liner Weld
318WB35X29720 GE Oven Door Gasket
327WB01K10093 GE Oven Speednut
330GEN WB55K0001
332WB35K10151 GE Oven Insulation Door
335WB02K10156 GE Oven Spacer
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
341WB35X29083 GE Insulation
342WB35X26892 GE Oven Side Panel Foil
346WB57K18 GE Oven Crystal Wind
348GEN WB02K0050
353WB01K10012 GE Oven Screw 8-22 PL 1HX
361WB1X5731D GE Oven Nut Package of 12
362WB07X20288 GE Oven Barrier Door
365WB15T10214 GE Oven Handle
370WB02X28737 GE Oven Front Frame Bumper
2000WB02X29479 GE Oven Badge Assembly
