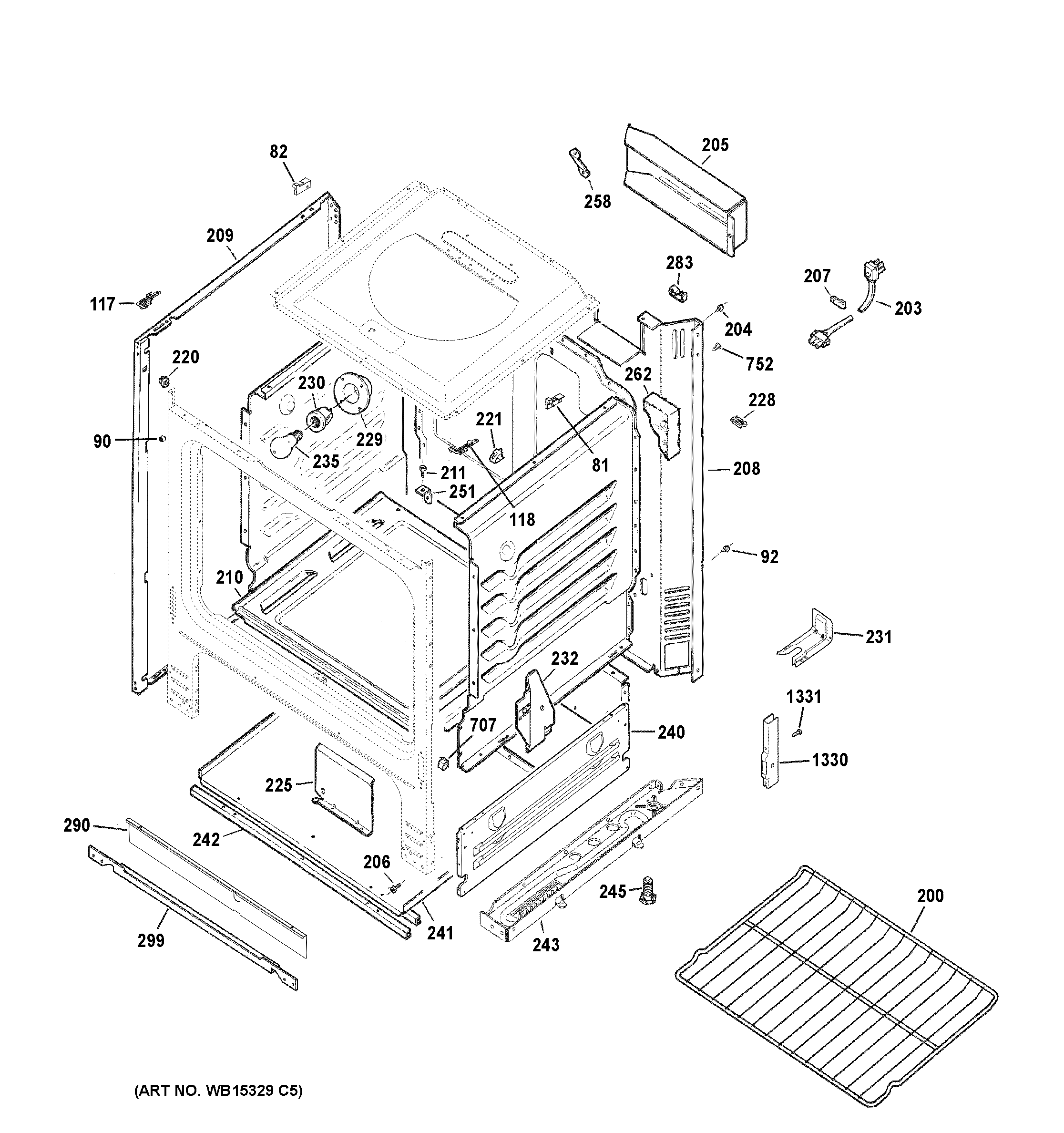

JGBS10DEM3WW BODY PARTS

JGBS10DEM3WW BODY PARTS

Written by

in

JGBS10DEM3WW BODY PARTS

Products

PositionProduct
81WB02X24942 GE Rantop Holder
82HOLDER RANGETOP
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
117WB02X24940 GE Range Side Bracket Manifold
118WB02X24939 GE Range Side Manifold Bracket
200OVEN RACK
203WB18K10036 GE Oven Line Cord
204WB1K5062 GE Oven Screw
205WB34K10144 GE Back Panel Cover
206WB01K10091 GE Oven Screw
207WB2K36 GE Oven Clamp Cable
208WB63K21 GE Back
209WB56X29122 GE Oven Side Panel
210WB35X37973 GE Oven Bottom and Deflector Assembly
211WB1K5 GE Oven Screw 8-18 X B97
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
225GEN WB34K0002
228GEN WB02X7066
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
232GEN WB34K0004
232GEN WB34K0003
235RANGE ONLY 40W 120V APPL BULB
240WB63X26890 GE Oven Broiler Panel
241WB63K10029 GE Range Bottom
242GEN WB63K0005
243WB63X20215 GE Oven Support Base
243WB63X20216 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
251WB2K3 GE Angle Support
258WB38K2 GE Range Vent Brace
262WB35K16 GE Oven Back Insulation
283WB02X21679 GE Oven Wire Clip
290GEN WB34K0012
299WB1K43 GE Oven Support Bracket
707WB02K10267 GE Wire Clip
752WZ4X345D GE Screw Package 12 C92
1330WB10X20220 GE Oven Receiver Hinge
1331GEN WB01K0053
