JGBS10WEH4WW GAS & BURNER PARTS

JGBS10WEH4WW GAS & BURNER PARTS

Written by

in

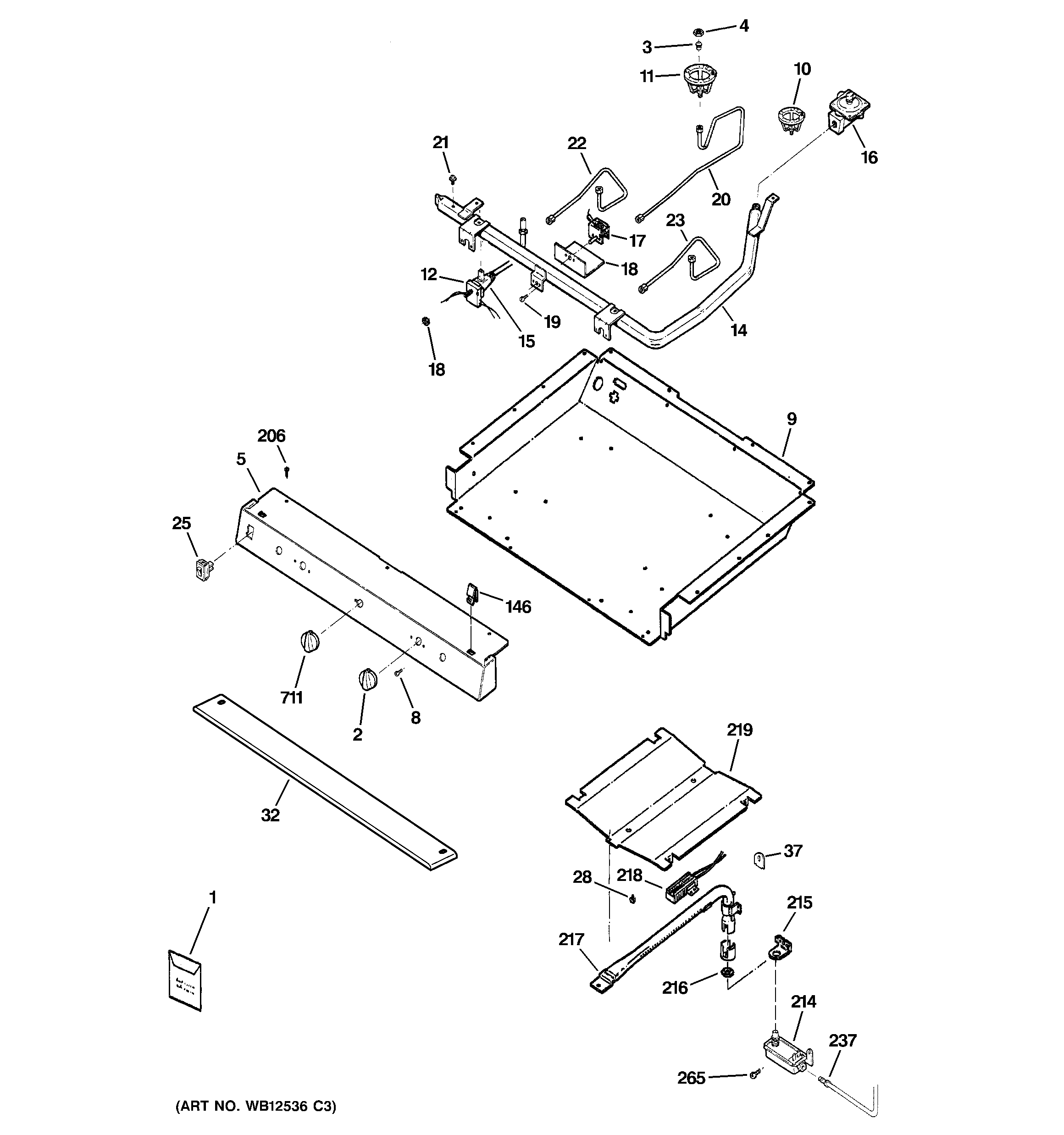

JGBS10WEH4WW GAS & BURNER PARTS

Products

PositionProduct
1GEN 31-21159
1GEN 49-85045
1GEN WB28K10112
2WB03K10143 GE Oven Burner Knob
3ORIFCE-LP LG .85 MM
3ORIFICE-LP MED .81 MM
3ORIFICE-LP SM .76 MM
4WB01K10037 GE Oven Economic Nut
5GEN WB36K10470
8WB01K10029 GE Oven Screw 832 1/8
9GEN WB63K10036
10WB02K10360 GE Oven Circuit Bracket Small
11WB02K10361 GE Oven Orifice Holder
12GEN WB24K10002
12GEN WB24K10027
14GEN WB28K10248
15GEN WB21K0020
15GEN WB21K10010
15WB21K12 GE Oven Burner Control Valve
16PRESSURE REGULATOR
17WB20K8 GE Oven Thermostat Temperature Control
18WB2K24 GE Oven Valve Cover
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20REAR ORIFICE HOLDER LF
20REAR ORIFICE HOLDER RT
21WB1K83 GE Oven Screw
22FRONT ORIFICE HOLDER LF
22FRONT ORIFICE HOLDER RT
23GEN WB28K10197
25WB24K5022 GE Oven Rocker Switch
28WB1X1293 GE Oven Screw
32GEN WB35K10030
37WB34K14 GE Igniter Cover
146GEN WB02K0052
206WR01X10065 GE Screw
214SAFETY VALVE SINGLE
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217WB16K10043 GE Oven Bake Burner Without Igniter
218WB13K21 GE Oven Igniter with 7 Leads
218WB13K10013 GE Oven Burner Igniter Assembly
219OVEN DEFLECTOR
237GEN WB28K10120
265GEN WB04X0366
711WB03K10144 GE Oven Thermostat Knob (White)
