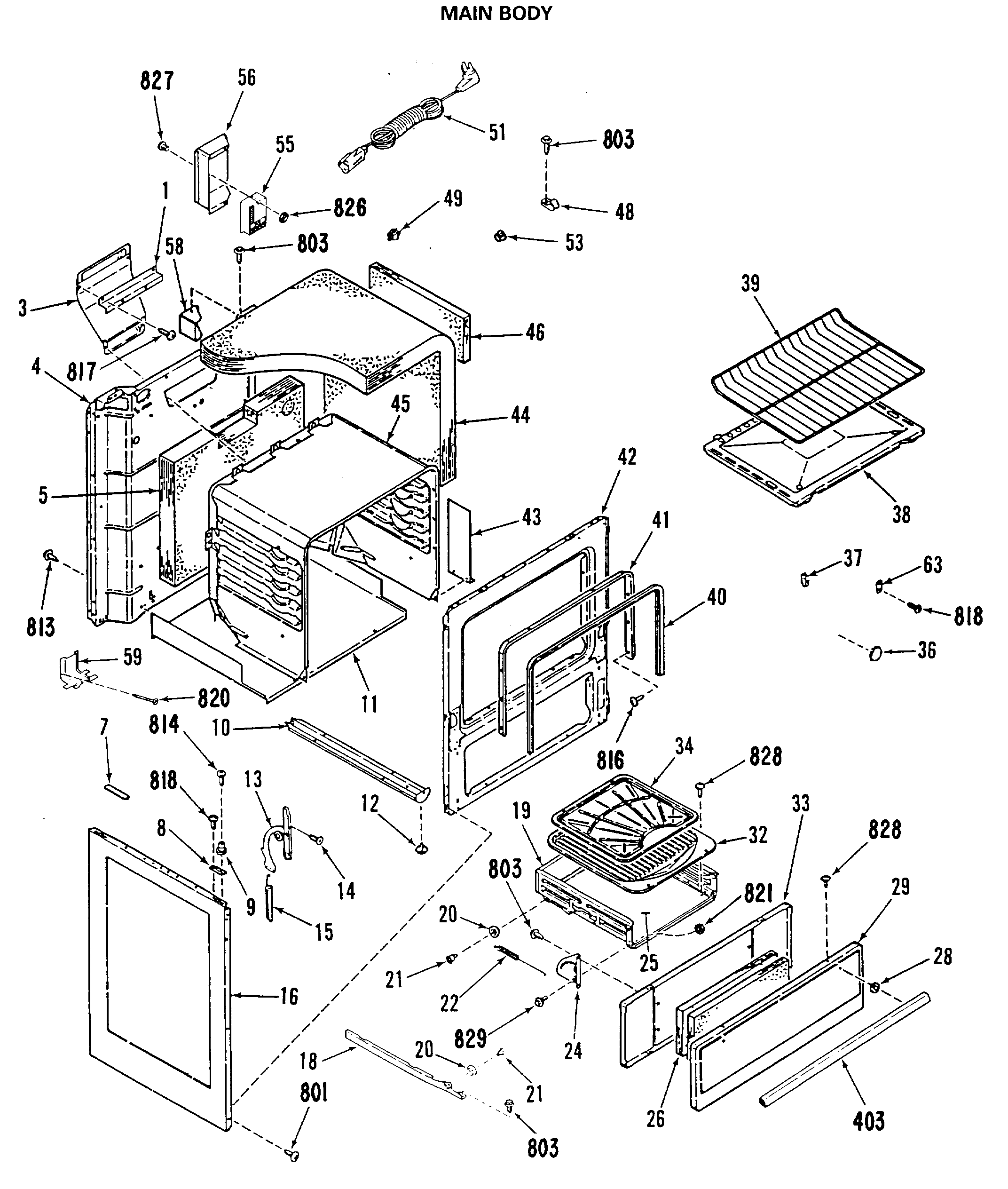

JGBS15EK3 MAIN BODY

Products

Position	Product
3	GEN WB38X0105
4	GEN WB63X0324
5	GEN WB02X9021
7	MAINTOP SPACER
8	BODY SIDE SUPPORT-LT
8	BODY SIDE SUPPORT-RT
9	MT STRIKE
10	BASE ASM W/LEVELER
11	MAIN BOTTOM
12	GEN WB02X9188
13	WB14X103 GE Range Oven Left Door Hinge
13	WB14X104 GE Stove Range Oven Right Hand Door Hinge
15	GEN WB09X0238
16	BODY SIDE-ALMOND
16	BODY SIDE-WHITE
18	GUIDE-BROILER-LEFT
18	GUIDE-BROILER-RIGHT
19	DRAWER-BROILER
20	GEN WB02X9095
21	ROLLER
22	GEN WB09X0240
24	BRO DRAWER HINGE-LT
24	BRO DRAWER HINGE-RT
25	GEN WB49X0625
28	DOOR HANDLE SPACER-BLACK
29	GEN WB56X1894
29	GEN WB56X1895
32	BROILER PAN
33	GEN WB55X0670
34	BROILER PAN GRID
36	WB2X9189 GE Oven Plug – REC
37	THERMOSTAT BULB RET CLIP
38	OVEN BOTTOM
39	GEN WB48X0208
40	GEN WB02X9028
41	DR SEAL RETAINER
42	GEN WB63X0328
43	UNKNOWN
44	OVEN BODY INSULATION
45	OVEN BODY
46	INSULATION
48	CLIP CABLE NYLON
49	DISCONNECT
50	GEN WB08X0276
51	GEN WB18X0299
51	GEN WB18X0316
51	*HARNESS-SWITCH
51	POWER SUPPLY CORD
52	GEN BUY-LOCAL
53	SNAP BUSHING 1/2"
55	SPARK IGN MODULE
56	WIRE SHIELD ASM
58	GEN WB02X9102
316	GEN WB24X0415
317	GEN WB02X9184
403	GEN WB15X0270
801	GEN WB01X1113
803	WB1M1 GE Oven Screw
813	WB1X1130 GE Oven Screw 10-32
814	WB1X1131 GE Screw 6-32
816	WB1X1137 GE Oven Screw
817	WB1X1149 GE Oven Screw
818	GEN WB01X1150
820	GEN WB01X1152
821	HEX NUT
826	GEN WB01X1129
829	GEN WB01X1156
9999	GEN 31-0682
9999	GEN 49-4899
