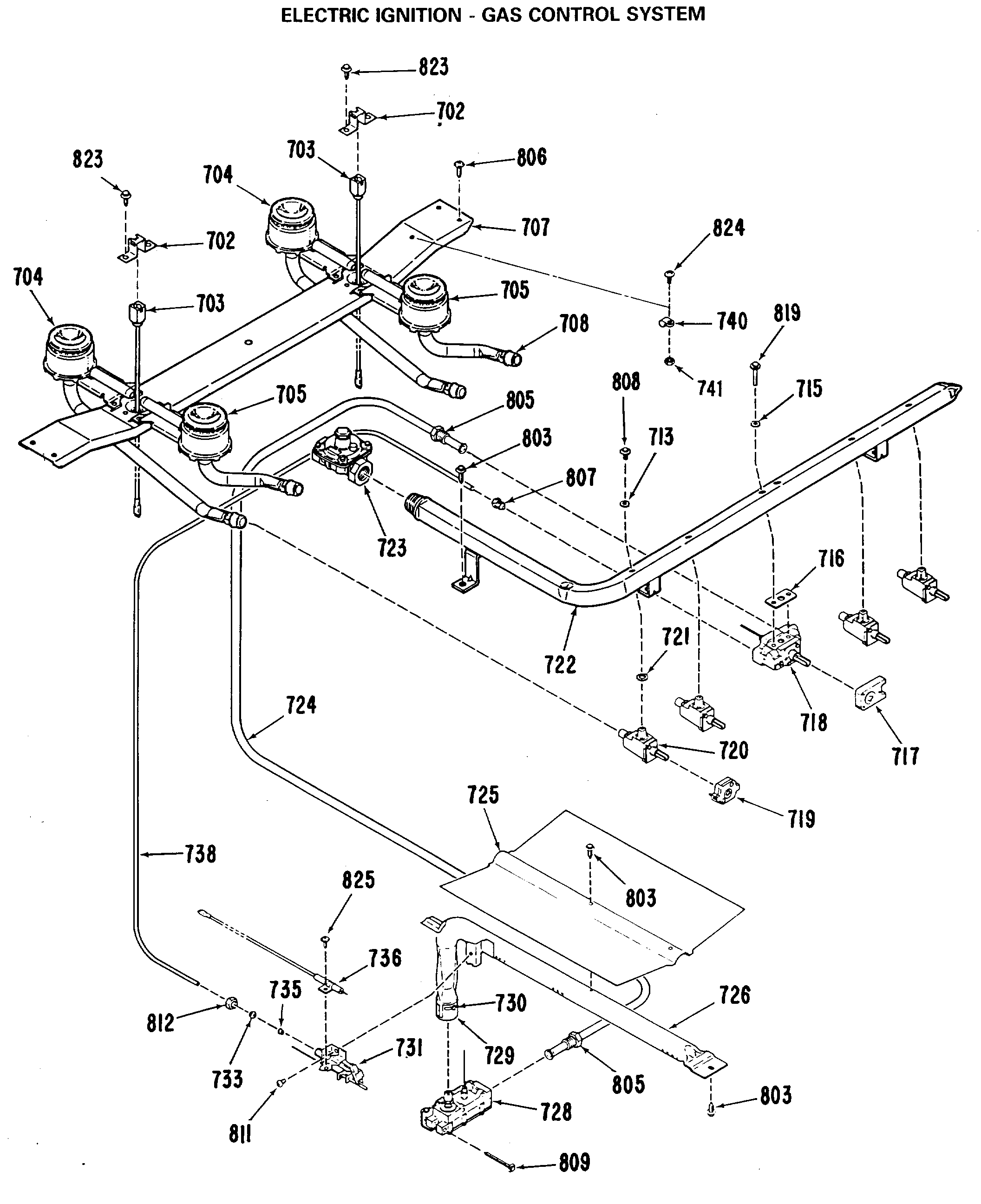

JGBS15GEK1 ELECTRIC IGNITION-GAS CONTROL SYSTEM

JGBS15GEK1 ELECTRIC IGNITION-GAS CONTROL SYSTEM

Written by

in

JGBS15GEK1 ELECTRIC IGNITION-GAS CONTROL SYSTEM

Products

Position	Product
702	IGNITER BRACKET
703	SPARK IGN ELECTRODE RT
703	GEN WB02X9004
704	TOP BURNER-REAR
705	TOP BURNER-FRONT
707	GEN WB02X9006
708	GEN WB02X9007
713	VALVE SCREW GASKET
715	THERMOSTAT SCREW GASKET
716	THERMOSTAT GASKET
717	THERMOSTAT SWITCH
718	OVEN THERMOSTAT
719	VALVE SWITCH
720	VALVE-TOP BURNER
721	VALVE GASKET
722	MANIFOLD PIPE ASM
723	GEN WB21X0465
724	GEN WB02X9013
725	OV BURN BAFFLE
726	GEN WB28X0083
728	GEN WB21X0468
729	AIR SHUTTER-OVEN
731	PILOT W/CUP
733	3/16 TUBING SLEEVE
735	GEN WB02X9017
736	OVEN SPARK IGN ELECTRODE
738	3/16 TUBE
803	WB1M1 GE Oven Screw
805	NUT
806	WB1X1118 GE Oven Screw 6-32T
808	GEN WB01X1121
809	GEN WB01X1123
811	GEN WB01X1125
812	TUBING NUT 3/16
823	WB1X1141 GE Oven Screw 8-32
824	GEN WB01X1128
825	WB1X681 GE Oven Screw
