JGBS15GEK5 2

JGBS15GEK5 2

Written by

in

JGBS15GEK5 2

Products

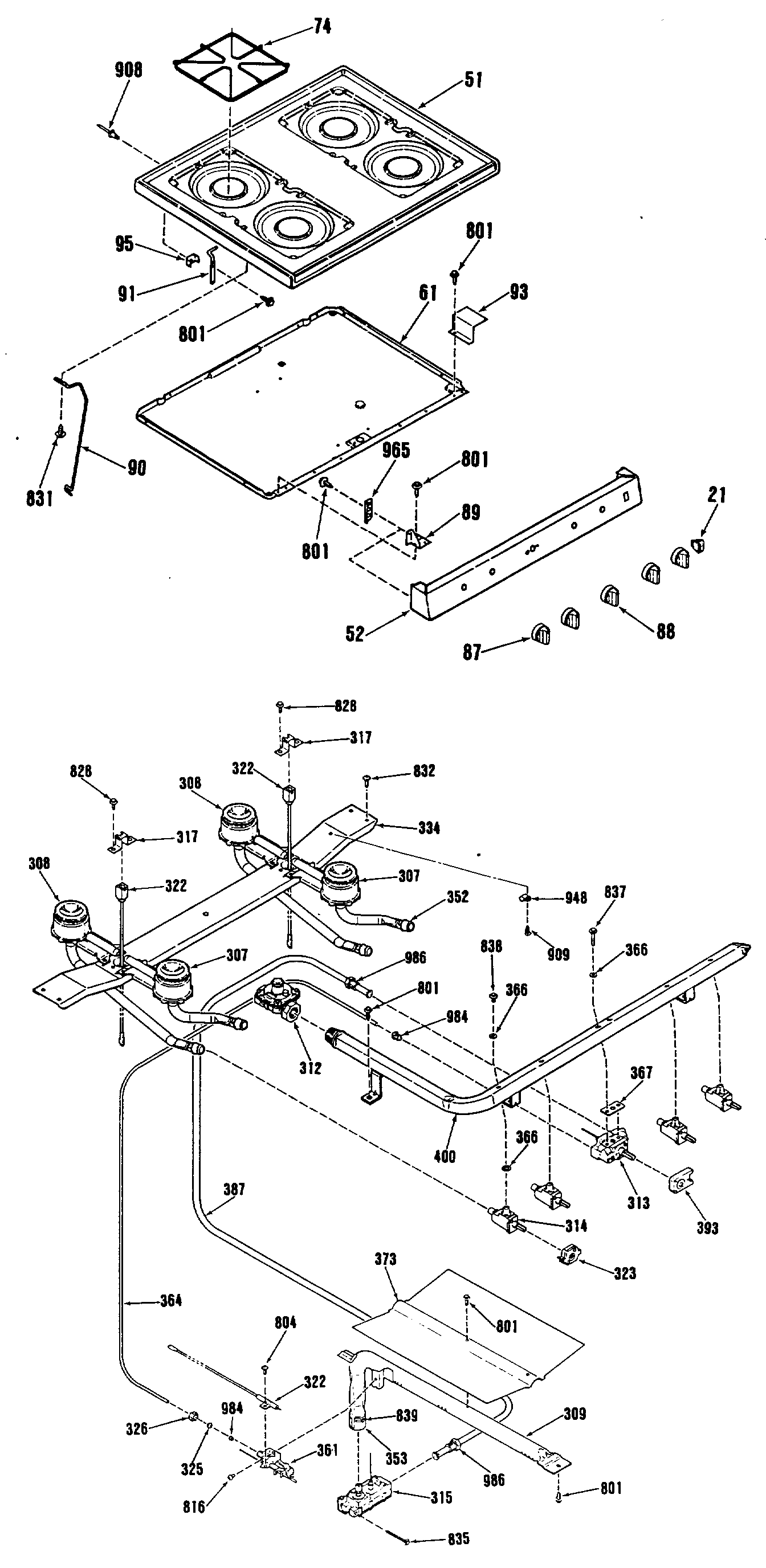

Position	Product
21	GEN WB24X0435
51	GEN WB62X1716
51	MAIN TOP-ALMOND
51	MAIN TOP-WHITE
52	GEN WB07X1593
61	GEN WB63X0336
74	GRATE
87	GAS VALVE KNOB
88	THERMOSTAT KNOB
89	MANIF PANEL BRACKET-LT
89	MANIF PANEL BRACKET-RT
90	GEN WB02X2084
91	MAINTOP HINGE-RT
91	MAINTOP HINGE-LT
93	GEN WB34M0017
95	MAINTOP HINGE BRACKET
307	TOP BURNER ASM-FRONT
308	TOP BURNER ASM-REAR
309	GEN WB16M0008
312	GEN WB21X0465
313	OVEN THERMOSTAT
314	VALVE-TOP BURNER
315	GEN WB21X0474
317	IGNITER BRACKET
322	SPARK IGN ELECTRODE RT
322	OVEN SPARK IGN ELECTRODE
322	SPARK IGN ELECTRODE LT
323	VALVE SWITCH
325	TUBING SLEEVE 3/16
326	TUBING NUT 3/16
334	TOP BURNER SUPPORT
352	GEN WB02X9739
353	AIR SHUTTER-OVEN
361	PILOT W/CUP
364	GEN WB02X9745
366	VALVE SCREW GASKET
366	THERMOSTAT SCREW GASKET
366	VALVE GASKET
367	THERMOSTAT GASKET
373	OV BURN BAFFLE
387	TUBE 3/8 W/NUT
393	THERMOSTAT SWITCH
400	MANIFOLD PIPE ASM
801	WB1M1 GE Oven Screw
804	WB1X681 GE Oven Screw
816	GEN WB01X1125
828	WB1X1141 GE Oven Screw 8-32
831	GEN WB01X1132
832	WB1X1118 GE Oven Screw 6-32T
835	GEN WB01X1123
837	GEN WB01X1151
838	GEN WB01X1121
839	ADJUSTING SCREW
908	POP RIVET
909	RIVET
948	GEN WB02X9020
965	GEN WB02X9000
984	HEX NUT
986	NUT
