JGBS15GPK3 ELECTRIC PILOT-GAS CONTROL SYSTEM – Aparts

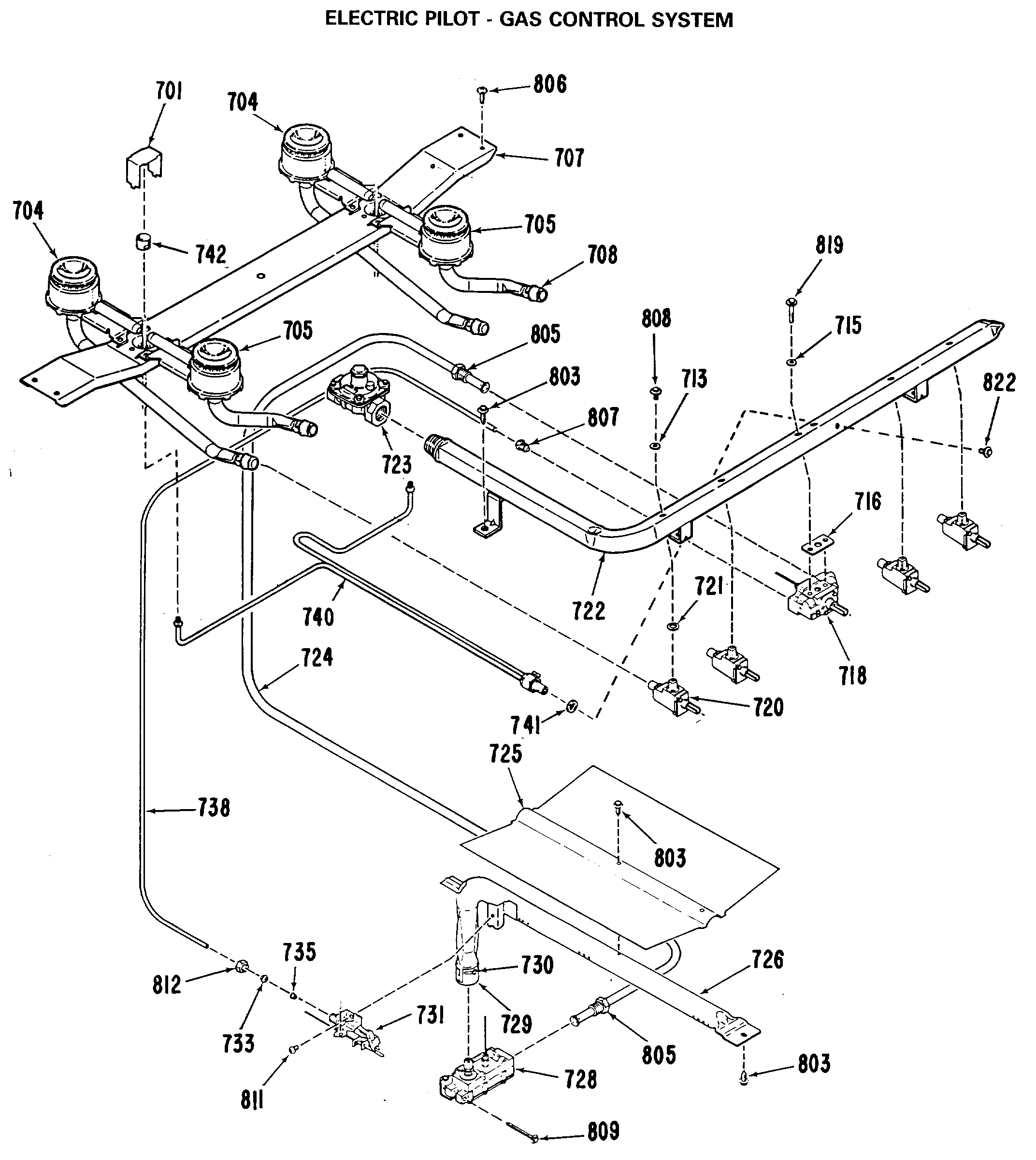

JGBS15GPK3 ELECTRIC PILOT-GAS CONTROL SYSTEM

Products

Position	Product
701	GEN WB02X9185
704	TOP BURNER-REAR
705	TOP BURNER-FRONT
707	TOP BURNER SUPPORT
708	GEN WB02X9007
713	GEN WB02X9089
715	THERMOSTAT SCREW GASKET
716	THERMOSTAT GASKET
718	GEN WB21X0471
720	VALVE-TOP BURNER
721	VALVE GASKET
722	MANIFOLD PIPE ASM
723	GEN WB21X0465
724	3/8" TUBE W/NUTS
725	OV BURN BAFFLE
726	GEN WB28X0083
728	GEN WB21X0474
729	AIR SHUTTER-OVEN
731	GEN WB02X9186
733	3/16 TUBING SLEEVE
735	GEN WB02X9017
738	3/16 TUBE
740	FILTER W/PILOT
803	WB1M1 GE Oven Screw
805	NUT
806	WB1X1118 GE Oven Screw 6-32T
807	HEX NUT
808	GEN WB01X1121
809	GEN WB01X1123
811	GEN WB01X1125
812	TUBING NUT 3/16
819	GEN WB01X1151
822	GEN WB01X1154
