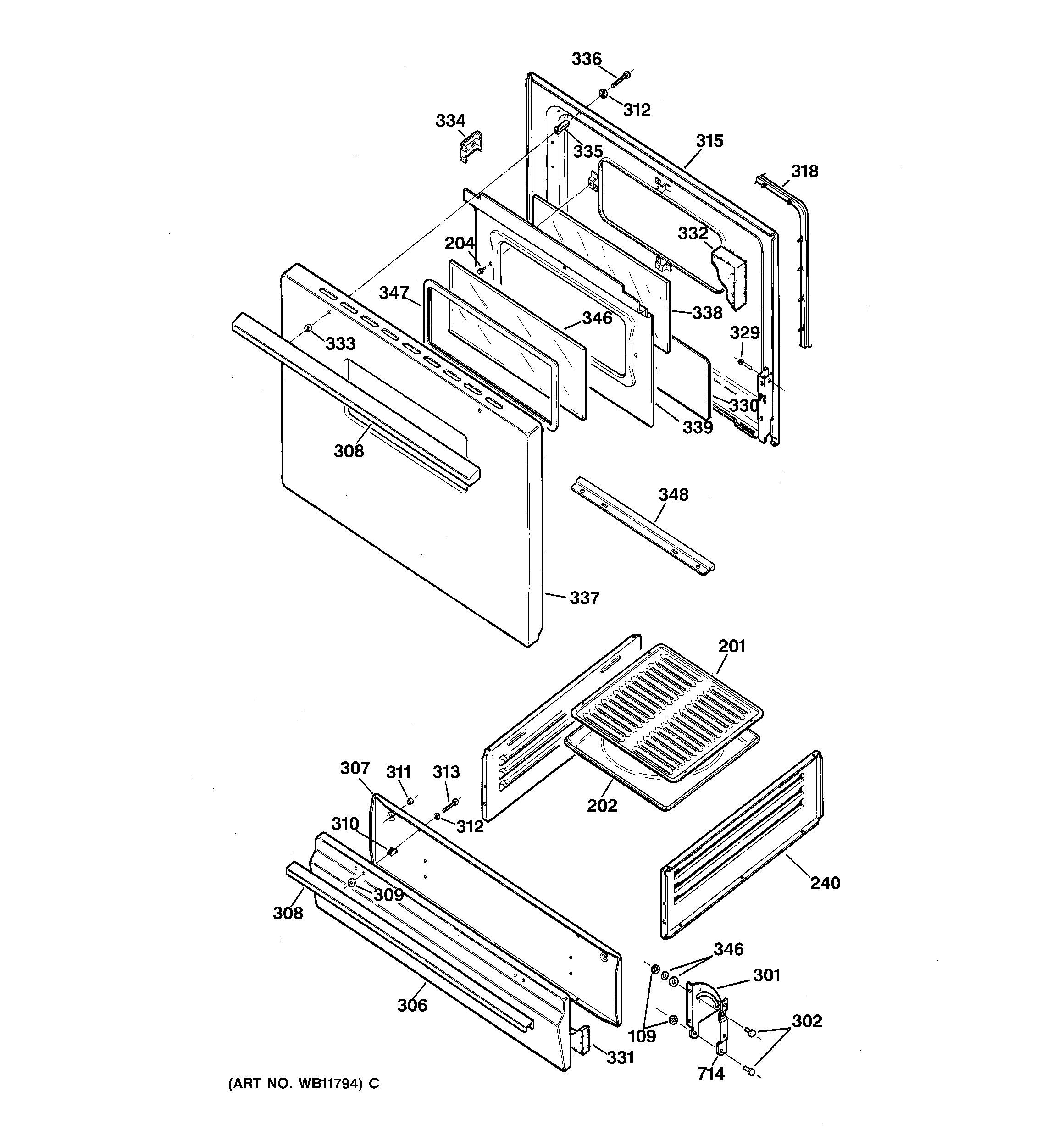

JGBS15PEA1AD DOOR & DRAWER PARTS

JGBS15PEA1AD DOOR & DRAWER PARTS

Written by

in

JGBS15PEA1AD DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
201GEN WB48K0002
202GEN WB49K0002
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
240GEN WB63K0029
301GEN WB10K0011
301GEN WB10K0010
302GEN WB01K0040
302WB1K7 GE Oven Broiler Pin
306GEN WB39K0004
307GEN WB39K0037
308WB15K1 GE Oven Broil Handle
308GEN WB15K0003
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313WB1X5731D GE Oven Nut Package of 12
315GEN WB55K0006
318WB35X29720 GE Oven Door Gasket
329WB1X558D GE Oven Screw Package
330GEN WB55K0001
331GEN WB35K0003
332GEN WB35K0005
333WB1K10 GE Oven Grommet Handle
334GEN WB02K0013
335GEN WB02K0002
336GEN WZ04X0423
337GEN WB56K0017
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
346WB1K39 GE Washer Spring
346WB56K25 GE Oven Wind Crystal
346GEN WB01K0038
347GEN WB07K0086
348GEN WB02K0050
714WB39K35 GE Oven Left Hand Broil Support
714WB39K34 GE Oven Broil Support Right
