JGBS16EH3 1

Products

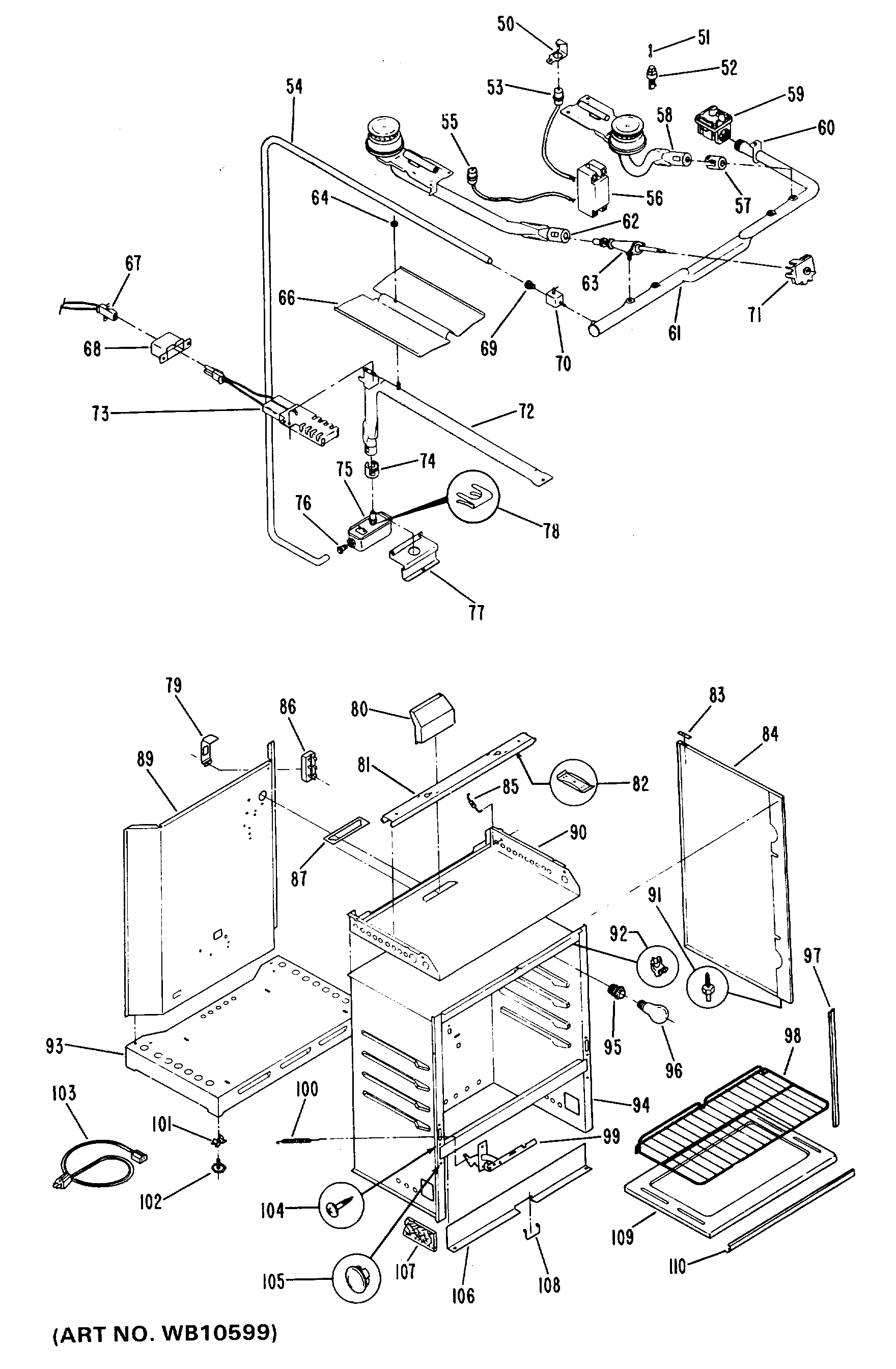

Position	Product
50	RETAINER IGN. HARNESS
51	GEN WB27X0277
51	GEN WB01X0809
52	GEN WB02X4213
52	GEN WB02X4667
53	BASE IGNITOR RH
54	TUBE OVEN GAS SUPPLY 7/16"X55"
55	BASE IGNITOR LH
56	GEN WB21X0389
57	MIXER AIR TOP BURNERS
58	GEN WB28X0061
59	GEN WB21X0395
60	GEN WB02X4188
61	MANIFOLD PIPE
62	GEN WB28X0062
63	VALVE-TOP BURNERS
64	NUT
66	GEN WB49X0511
67	GEN WB18X0215
68	TUBE IGNITOR
70	VALVE MANUAL CUT-OFF
71	GEN WB24X0325
72	BURNER OVEN
73	WB2X9998 GE Oven Flat Igniter
73	TERMINAL BLOCK-IGNITOR
74	GEN WB02X4195
75	VALVE-OVEN SAFETY
75	COVER-SAFETY VALVE
76	GEN WB01X0713
77	GEN WB02X4220
79	GEN WB02X4211
80	BAFFLE BROILER BURNER
81	SUPPORT TO BURNER
82	FASTENER VALVE MTG
83	GLIDE MAIN TOP
84	GEN WB56X1769
84	GEN WB56X1770
85	GEN WB14X0047
86	TERMINAL BLOCK
87	GEN WB55X0514
89	MAIN BACK
90	GEN WB49X0564
91	SCREW 6-20X1/2"
92	CLIP-THERMOSTAT BULB
93	MAIN BASE
95	GEN WB08X0241
97	SEAL DOOR SIDE
98	GEN WB48X0166
99	HINGE OVEN DOOR LH
99	HINGE OVEN DOOR RH
100	SPRING OVEN DOOR
101	FASTENER LEG LEVELER
102	LEVELING LEG
103	RACK-OVEN
104	WZ4X230D GE Screw Package 12
105	GEN WB01X0702
106	GEN WB49X0521
107	INSULATION SIDES & TOP
107	GEN WB02X4272
108	GEN WB02X4270
109	GEN WB49X0570
110	SEAL DOOR BOTTOM/TOP
110	GEN WB64X0085
