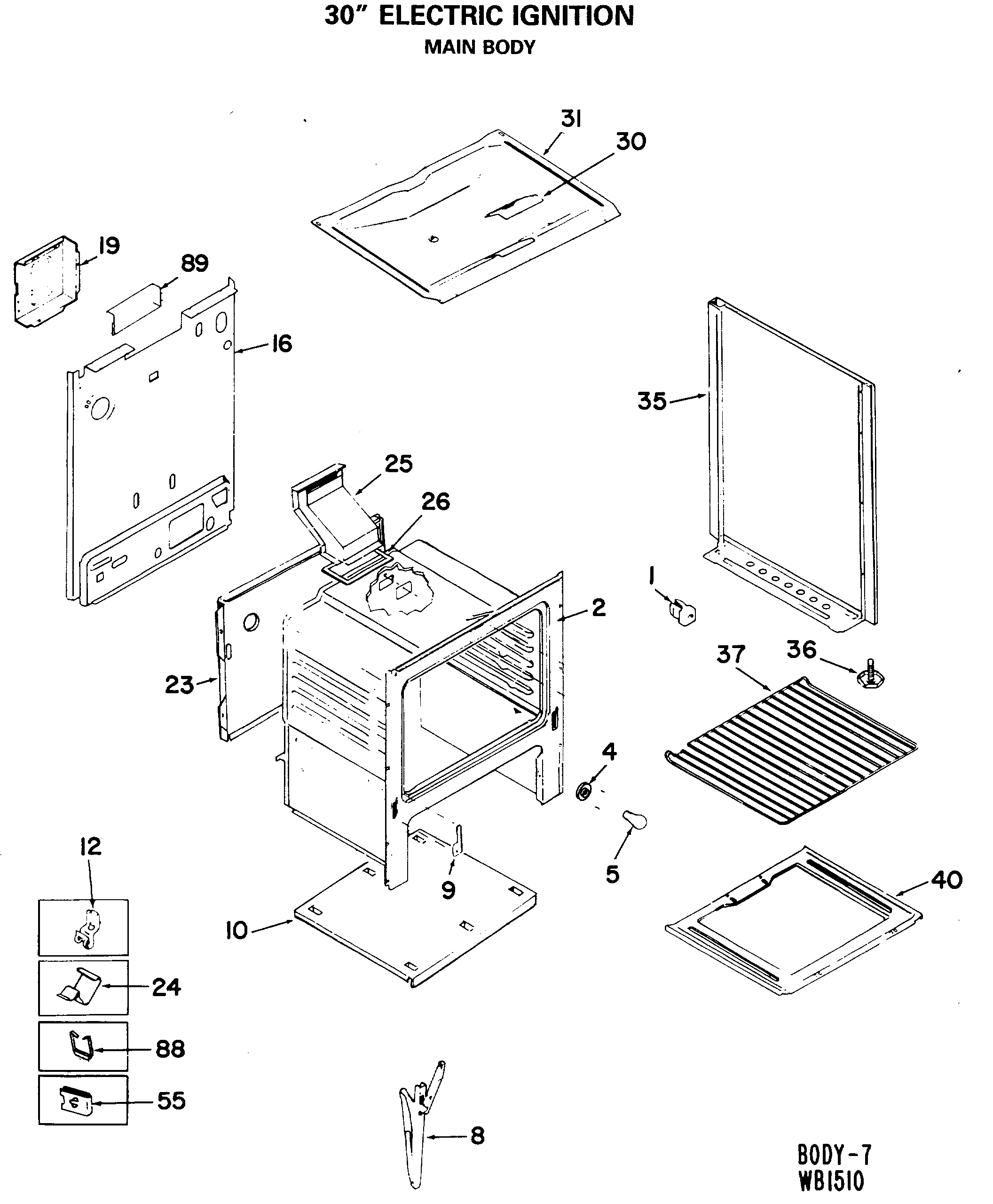

JGBS16EJ1 30″ ELECTRIC IGNITION

JGBS16EJ1 30″ ELECTRIC IGNITION

Written by

in

JGBS16EJ1 30″ ELECTRIC IGNITION

Products

Position	Product
1	GEN WB01X0931
2	GEN WB02X4965
2	OVEN ASSEMBLY
2	GEN WB2X10119
2	COVER PLATE
2	GEN WB02X4777
2	INSULATION-OVEN WRAP
4	GEN WB08X0262
4	GEN WB02X4967
5	GEN BUY-LOCAL
8	HINGE-W/SPRING
8	SPRING-OVEN DOOR HINGE
10	GEN WB63X0288
12	CLIP-THERMOSTAT BULB
15	GEN WB18X0255
16	BACK MAIN
19	GEN WB63X0286
23	GEN WB63X0287
24	GEN WB01X0923
25	GEN WB38X0094
26	GEN WB38X0093
31	GEN WB56X1780
35	PANEL-SIDE-LH-ALMOND
35	PANEL-SIDE-LH-WHITE
35	PANEL-SIDE-RH-ALMOND
35	PANEL-SIDE-RH-WHITE
37	GEN WB48X0190
39	WB48X10056 GE Broil Pan Set, Large Porcelain
40	GEN WB53X0272
40	SCREW-OVEN BOTTOM
40	GEN WB02X4776
55	FASTENER-HINGE
88	GEN WB01X1014
89	GASKET-FLUE
163	GEN WB07X1479
168	GEN WB61X0317
168	GEN WB61X0316
170	GEN WB19X0231
171	GEN WB61X0326
173	KNOB-CLOCK
174	GEN WB02X4945
175	GEN WB24X0376
180	TRIM-SURROUND-BACKSPLASH
180	GEN WB02X4952
181	GEN WB07X1518
182	GEN WB02X4946
184	GEN WB07X1517
190	GEN WB61X0319
301	GEN WB07X1529
302	KNOB-TOP BURNER VALVE
303	GRATE-TOP BURNER
305	BRACKET-COOKTOP-LH
306	BRACKET-COOKTOP-RH
307	GEN WB62X1642
307	GEN WB62X1641
308	CAM DOOR
343	GEN WB03X0716
464	GEN WB56X1845
465	GEN WB15X0245
466	LINER-OVEN DOOR
466	PLUG-DOOR LINER
467	GEN WB02X4984
468	SHIEL-INSULATION
471	GEN WB02X4989
473	GEN WB01X1016
474	GEN WB56X1834
480	GEN WB02X4985
492	GEN WB56X1847
492	GEN WB56X1846
493	GEN WB01X1022
501	GEN WB14X0084
501	GEN WB14X0085
502	PUSH NUT FASTENER
503	BODY-BROILER
504	GEN WB01X0701
505	GEN WB09X0197
505	GEN WB09X0200
507	PANEL-BROILER DOOR-WHITE
507	PANEL-BROILER DOOR-ALMND
513	GEN WB39X0066
514	GEN WB02X4996
552	GLIDE-BROILER
554	HANDLE-BROILER DOOR
555	LINER-BROILER DOOR PANEL
555	INSULATION-BROILER DOOR
556	GEN WB01X1025
702	GEN WB49X0593
704	GEN WB28X0080
705	BURNER-TOP (DOUBLE)
706	BRACKET-BURNER MOUNTING
707	GEN WB02X4742
708	GEN WB02X4743
709	GEN WB02X4744
710	GEN WB02X4745
711	GEN WB02X4746
712	IGNITER
713	MANIFOLD PIPE
714	GEN WB21X0443
715	NUT-COMPRESSION
715	ELBOW
716	GEN WB24X0393
719	GEN WB20X0093
725	GEN WB02X4756
730	VALVE-SAFETY
732	RETAINER-IGNITER
732	GEN WB21X0445
733	GEN WB02X4772
734	NUT
737	NUT-SPECIAL
742	GEN WB21X0442
743	GEN WB02X4190
744	GEN WB2X10004
745	GEN WB2X10009
746	GEN WB2X10010
747	TUBE-ALUMINUM
748	TUBE-ALUMINUM
749	GEN WB2X10005
751	GEN WB2X10003
32767	GEN 49-4946
32767	GEN 31-0627
