JGBS16GEP7 GAS & BURNER PARTS

JGBS16GEP7 GAS & BURNER PARTS

Written by

in

JGBS16GEP7 GAS & BURNER PARTS

Products

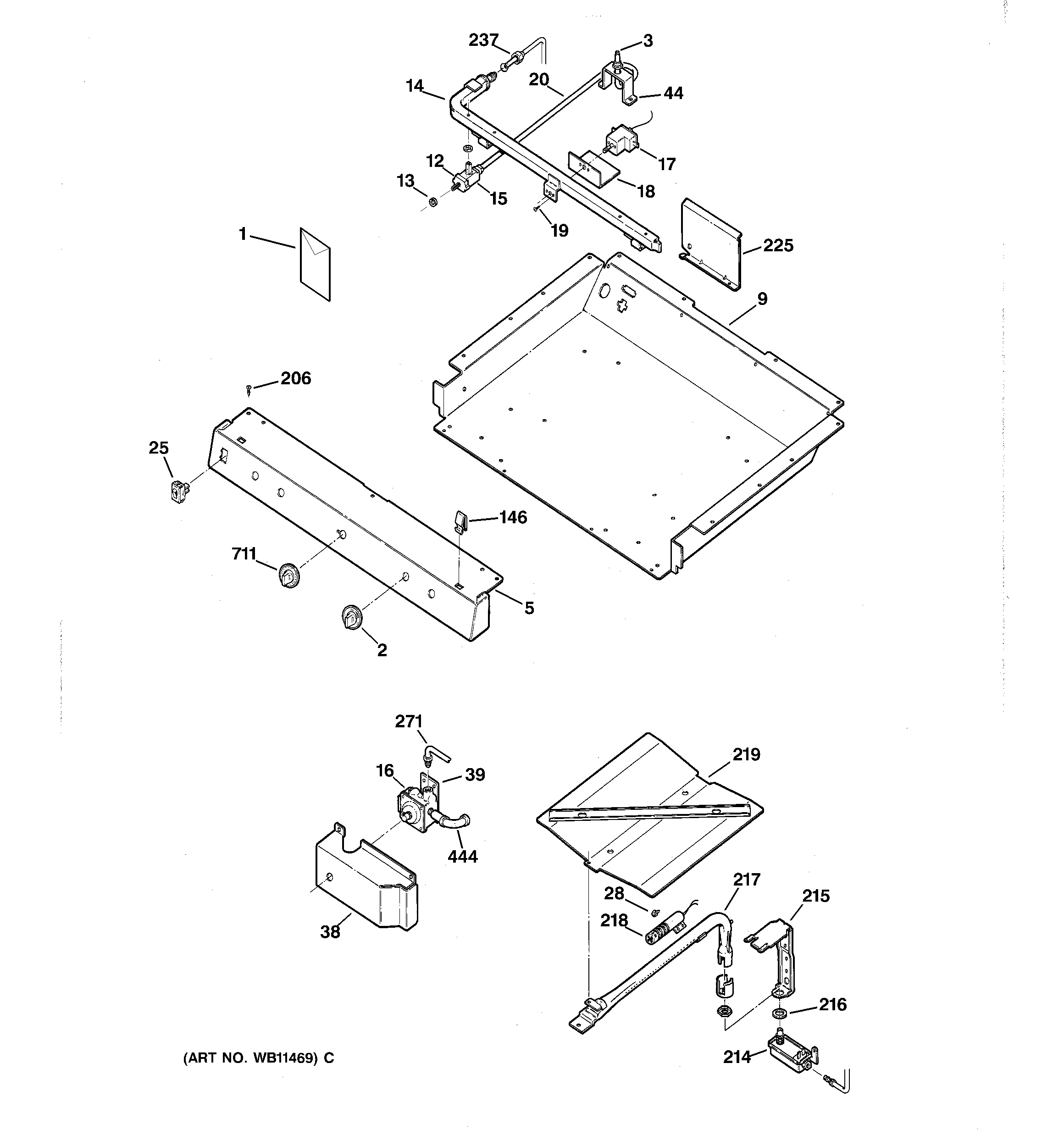

PositionProduct
1GEN 13-1365
1WB2K20 GE Oven Bracket Assembly
2GEN WB03K0099
3GEN WB28K0022
3GEN WB28K0019
3GEN WB28K0023
3GEN WB28K0087
3GEN WB28K0086
5PANEL MANIFOLD (BK)
6GEN WB02K0009
9GEN WB63K0024
12GEN WB24K0014
13WB2K24 GE Oven Valve Cover
14GEN WB28K0066
15GEN WB21K0018
15GEN WB21K0014
16GEN WB19K0016
17WB20K8 GE Oven Thermostat Temperature Control
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20ORIFICE HLDR RHT FRONT
20ORF HOLDER RIGHT REAR
20ORF HOLDER LEFT REAR
20ORIFICE HLDR LEFT FRONT
21WB1K83 GE Oven Screw
25GEN WB24K0003
28WB2X9154 GE Oven Igniter with 8" Leads
28WB1X1293 GE Oven Screw
38GEN WB34K0015
39GEN WB02K0047
44GEN WB02K0049
108WB1X5364 GE Oven Mounting Screw
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
133GEN WB01K0022
145GEN WB01K0027
146GEN WB02K0052
147GEN WB01K0028
148GEN WB01K0029
204WB1K5062 GE Oven Screw
206WR01X10065 GE Screw
211WB1K5 GE Oven Screw 8-18 X B97
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
214WB19K13 GE Oven Safety Valve
215GEN WB02K0007
216GEN WB01K0006
217GEN WB16K0007
219FLAME SPREADER
225GEN WB34K0002
237GEN WB28K0056
254GEN WB01K0053
257RANGE ONLY 40W 120V APPL BULB
271GEN WB28K0057
302WB1K7 GE Oven Broiler Pin
309WASHER
312WB1X119D GE Oven Range Washer
313GEN WB01K0016
328SCR 8-22 BTHW 9/16 S HLT
329WB1X558D GE Oven Screw Package
444GEN WB28K0061
711THERMOSTAT KNOB (BK)
752WZ4X345D GE Screw Package 12 C92
