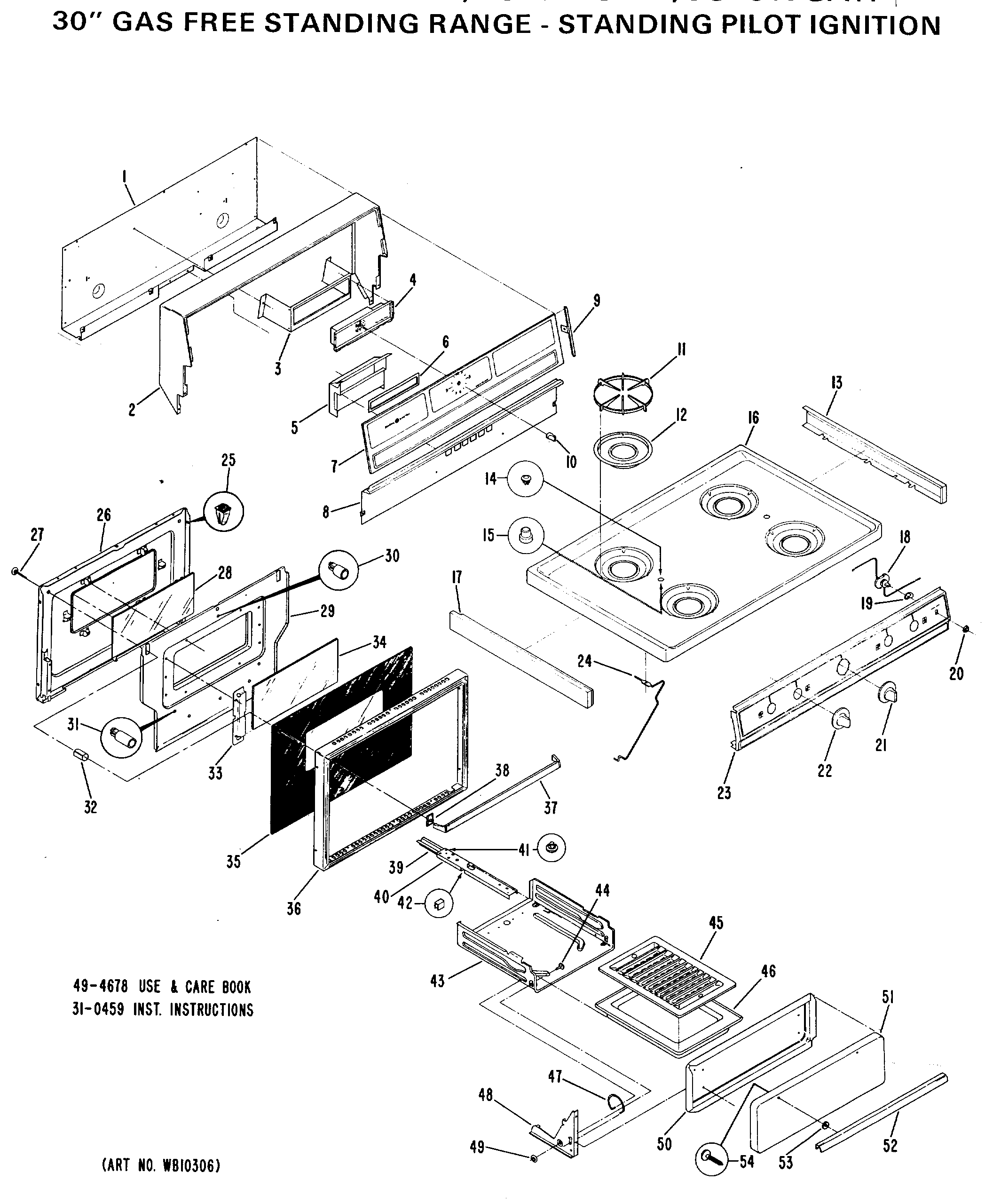

JGBS16GPH1 30″ GAS FREE STANDING RANGE-STANDIG PILOT IGNITION

JGBS16GPH1 30″ GAS FREE STANDING RANGE-STANDIG PILOT IGNITION

Written by

in

JGBS16GPH1 30″ GAS FREE STANDING RANGE-STANDIG PILOT IGNITION

Products

PositionProduct
1GEN WB15X1686
2GEN WB07X1370
3GEN WB02X4276
4GEN WB19X0208
5GEN WB49X0524
6GEN WB02X4277
7GEN WB61X0272
8GEN WB61X0273
9GEN WB02X4278
10KNOB-CLOCK
11GEN WB32X0083
12GEN WB32X0084
13GEN WB07X1363
14GEN WB02X4185
15GEN WB02X4186
16GEN WB62X1605
16GEN WB62X1606
16GEN WB62X1617
17TRIM-COOKTOP-LEFT
18GEN WB24X0330
19GEN WB01X0725
20GEN WB01X0726
21GEN WB03X0625
22GEN WB03X0626
23GEN WB07X1371
24GEN WB02X4280
25GEN WB01X0705
26GEN WB55X0517
27GEN WB01X0687
28GEN WB36X0678
29GEN WB55X0518
30GEN WB01X0727
31GEN WB01X0728
32GEN WB02X4283
33GEN WB02X4284
34GEN WB36X0679
35GEN WB36X0680
36GEN WB07X1373
37GEN WB15X0208
38GEN WB02X4285
39GEN WB02X4202
40GEN WB02X4203
41GEN WB01X0702
42GEN WB01X0703
43GEN WB58X0055
44GEN WB01X0701
45WB48X10056 GE Broil Pan Set, Large Porcelain
47GEN WB09X0200
47GEN WB09X0197
48GEN WB02X4200
48GEN WB02X4201
49PUSH NUT FASTENER
50GEN WB55X0516
51GEN WB56X1689
52GEN WB15X0206
53GEN WB01X0700
54GEN WB01X0699
55GEN WB02X4193
56GEN WB02X4192
57GEN WB28X0041
58MIXER AIR TOP BURNERS
59GEN WB21X0395
60GEN WB02X4188
61GEN WB02X4189
62GEN WB01X0691
63GEN WB21X0385
64GEN WB02X4236
65VALVE-TOP BURNERS
66GEN WB28X0042
67NUT
68GEN WB01X0697
69GEN WB01X0696
70GEN WB02X4194
71GEN WB49X0511
72GEN WB01X0693
73GEN WB01X0692
74GEN WB28X0044
75GEN WB02X4195
76GEN WB21X0388
77GEN WB02X4198
78GEN WB02X4197
79TUBE OVEN SUPPLY 3/8"X54"
80GEN WB01X0695
81GEN WB21X0387
82GEN WB02X4211
83BAFFLE BROILER BURNER
84SUPPORT TO BURNER
85GLIDE MAIN TOP
86PANEL-ALMOND
86PANEL-WHITE
87FASTENER VALVE MTG
88TERMINAL BLOCK
89COVER IGNITOR
90GEN WB55X0514
91GEN WB14X0047
92TRIM VERTICAL
93SCREW 6-20X1/2"
94BURNER BOX
95CLIP-THERMOSTAT BULB
96BACK MAIN
97MAIN BASE
99GEN WB08X0241
100RANGE ONLY 40W 120V APPL BULB
101SEAL DOOR SIDE
102GEN WB48X0166
103HINGE OVEN DOOR RH
103HINGE OVEN DOOR LH
104SPRING OVEN DOOR
105FASTENER LEG LEVELER
106LEVELING LEG
107GEN WB18X0214
108WZ4X230D GE Screw Package 12
110GEN WB49X0521
111GEN WB02X4270
112GEN WB55X0513
113SEAL DOOR BOTTOM/TOP
9999GEN 31-0459
9999GEN 49-4678
