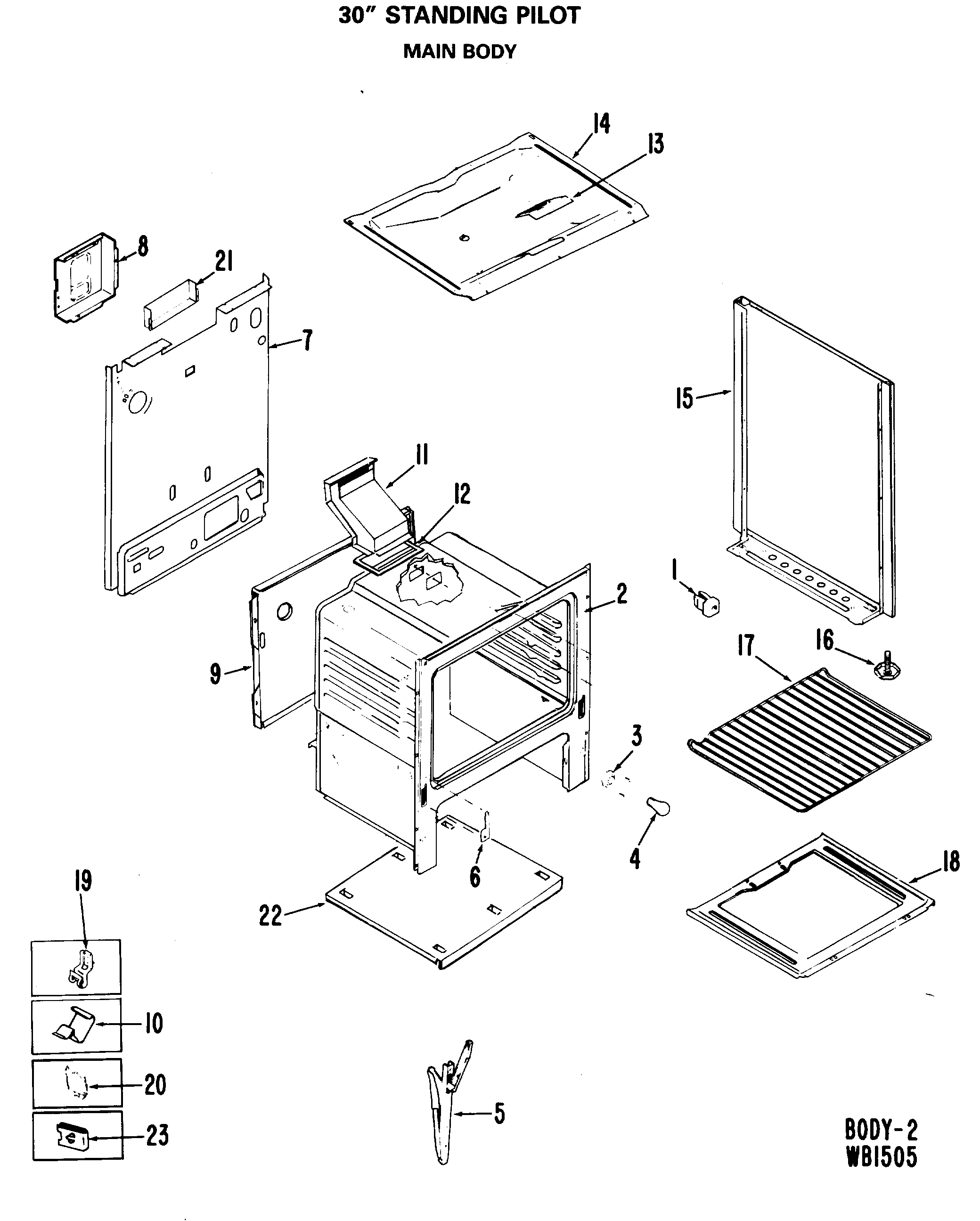

JGBS16GPJ1 30″ STANDING PILOT

JGBS16GPJ1 30″ STANDING PILOT

Written by

in

JGBS16GPJ1 30″ STANDING PILOT

Products

Position	Product
1	GEN WB01X1012
2	GEN WB02X10119
3	GEN WB08X0262
5	HINGE-W/SPRING
5	SPRING-OVEN DOOR HINGE
6	GEN WB02X4955
7	BACK MAIN
8	GEN WB63X0286
10	GEN WB01X0923
11	GEN WB38X0094
13	GEN WB02X4963
14	GEN WB56X1780
15	PANEL-SIDE-LH-ALMOND
15	PANEL-SIDE-LH-WHITE
15	PANEL-SIDE-RH-ALMOND
15	PANEL-SIDE-RH-WHITE
16	LEVELING LEG
17	GEN WB48X0190
18	GEN WB02X4965
18	GEN WB53X0272
18	SCREW-OVEN BOTTOM
18	INSULATION-OVEN WRAP
19	CLIP-THERMOSTAT BULB
19	FASTENER-POWER CORD
19	GEN WB18X0255
20	GEN WB01X1014
21	GEN WB38X0095
22	GEN WB02X4968
22	GEN WB02X4776
22	GEN WB63X0288
22	GEN WB02X4967
22	GEN WB02X4966
23	GEN WB63X0287
23	FASTENER-HINGE
332	GEN WB10X0241
476	SCREW
602	GEN WB28X0074
9999	GEN 31-0627
9999	GEN 49-4809
