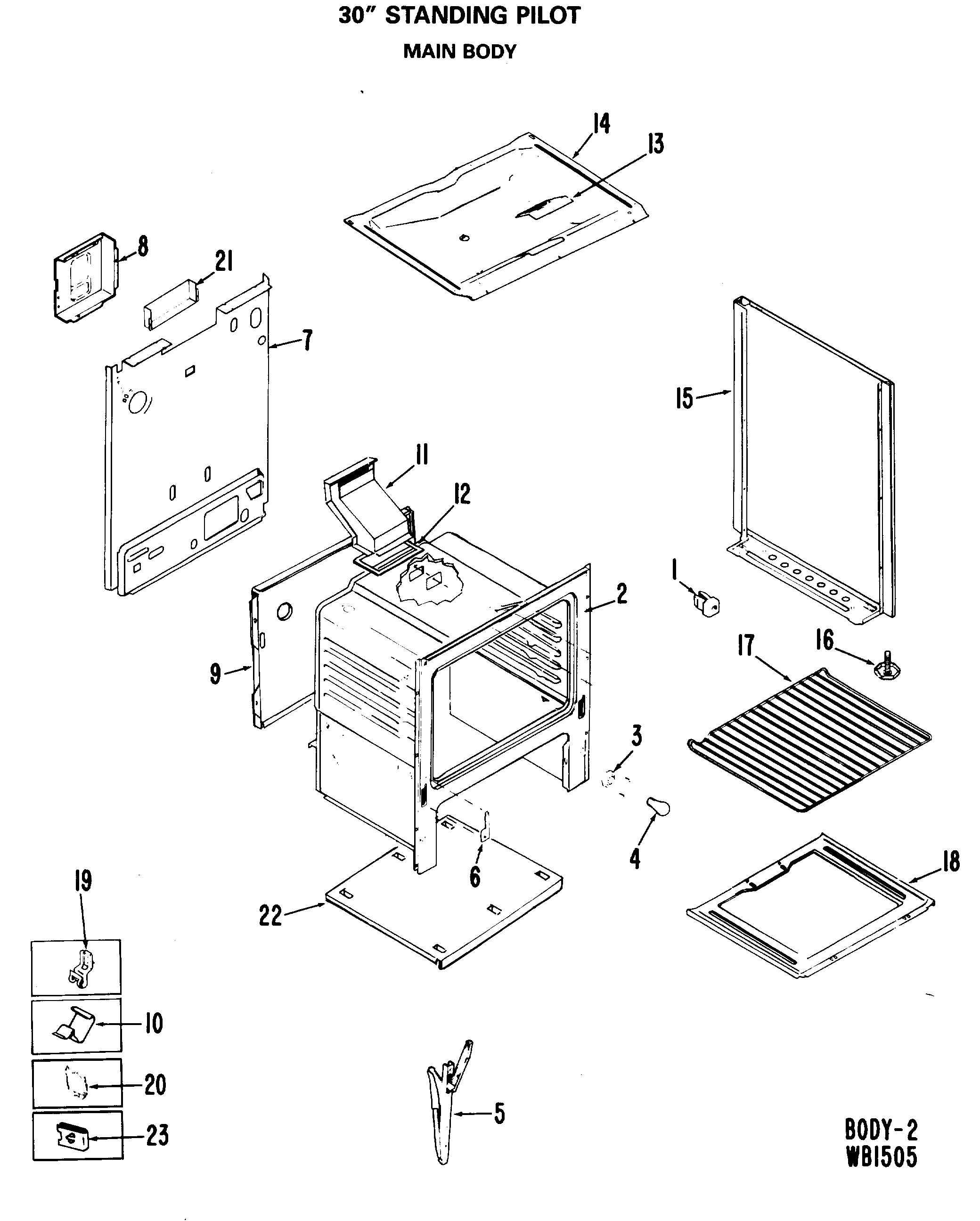

JGBS16GPJ2 30″ STANDING PILOT

JGBS16GPJ2 30″ STANDING PILOT

Written by

in

JGBS16GPJ2 30″ STANDING PILOT

Products

PositionProduct
1GEN WB01X1012
2GEN WB02X10119
3GEN WB08X0262
5HINGE-W/SPRING
5SPRING-OVEN DOOR HINGE
6GEN WB02X4955
7BACK MAIN
8GEN WB63X0286
10GEN WB01X0923
11GEN WB38X0094
13GEN WB02X4963
14GEN WB56X1780
15PANEL-SIDE-LH-ALMOND
15PANEL-SIDE-LH-WHITE
15PANEL-SIDE-RH-ALMOND
15PANEL-SIDE-RH-WHITE
16LEVELING LEG
17GEN WB48X0190
18GEN WB02X4965
18GEN WB53X0272
18SCREW-OVEN BOTTOM
18INSULATION-OVEN WRAP
19CLIP-THERMOSTAT BULB
19FASTENER-POWER CORD
19GEN WB18X0255
20GEN WB01X1014
21GEN WB38X0095
22GEN WB02X4968
22GEN WB02X4776
22GEN WB63X0288
22GEN WB02X4967
22GEN WB02X4966
23GEN WB63X0287
23FASTENER-HINGE
332GEN WB10X0241
476SCREW
602GEN WB28X0074
9999GEN 31-0627
9999GEN 49-4809
