JGBS16PJ1 30″ STANDING PILOT – Aparts

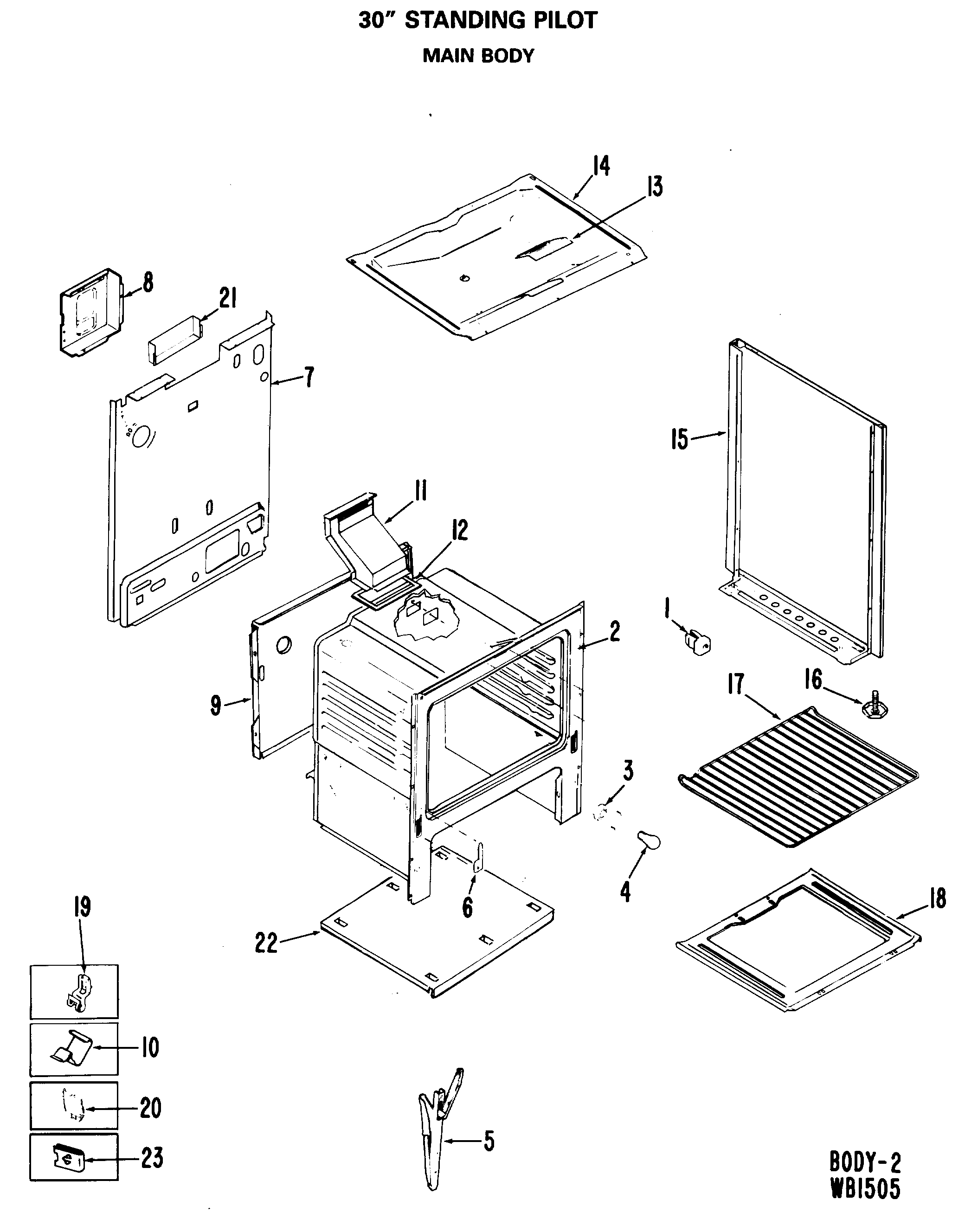

JGBS16PJ1 30″ STANDING PILOT

Products

Position	Product
1	GEN WB01X1012
2	GEN WB02X10119
3	GEN WB08X0262
5	SPRING-OVEN DOOR HINGE
5	HINGE-W/SPRING
6	GEN WB02X4955
7	BACK MAIN
8	GEN WB63X0286
10	GEN WB01X0923
11	GEN WB38X0094
13	GEN WB02X4963
14	GEN WB56X1780
15	PANEL-SIDE-LH-ALMOND
15	PANEL-SIDE-RH-WHITE
15	PANEL-SIDE-RH-ALMOND
15	PANEL-SIDE-LH-WHITE
16	LEVELING LEG
17	GEN WB48X0190
18	GEN WB02X4965
18	INSULATION-OVEN WRAP
18	GEN WB53X0272
18	SCREW-OVEN BOTTOM
19	CLIP-THERMOSTAT BULB
19	GEN WB18X0255
19	FASTENER-POWER CORD
20	GEN WB01X1014
21	GEN WB38X0095
22	GEN WB02X4776
22	GEN WB02X4968
22	GEN WB63X0288
22	GEN WB02X4967
22	GEN WB02X4966
23	FASTENER-HINGE
23	GEN WB63X0287
505	GEN WB09X0197
505	GEN WB09X0200
601	FLUE BOX-LOWER
602	GEN WB28X0074
603	BURNER-TOP (DOUBLE)
604	BRACKET BURNER-MOUNTING
605	GEN WB02X10000
606	GEN WB21X10011
607	GEN WB02X4742
608	GEN WB02X4745
609	GEN WB02X4743
610	GEN WB02X4744
611	GEN WB02X4746
612	GEN WB02X10015
613	GEN WB21X0446
614	GEN WB21X0443
615	NUT-SPECIAL
616	NUT-COMPRESSION
617	GEN WB02X4193
618	GEN WB02X1012
619	VALVE-SAFETY
620	GEN WB02X4236
621	GEN WB02X1004
622	GEN WB02X1005
623	TUBE-ALUMINUM
624	GEN WB02X1006
625	NUT
626	ELBOW
627	GEN WB21X0445
628	GEN WB02X4190
629	GEN WB02X4192
630	GEN WB02X10014
9999	GEN 31-0627
9999	GEN 49-4809
