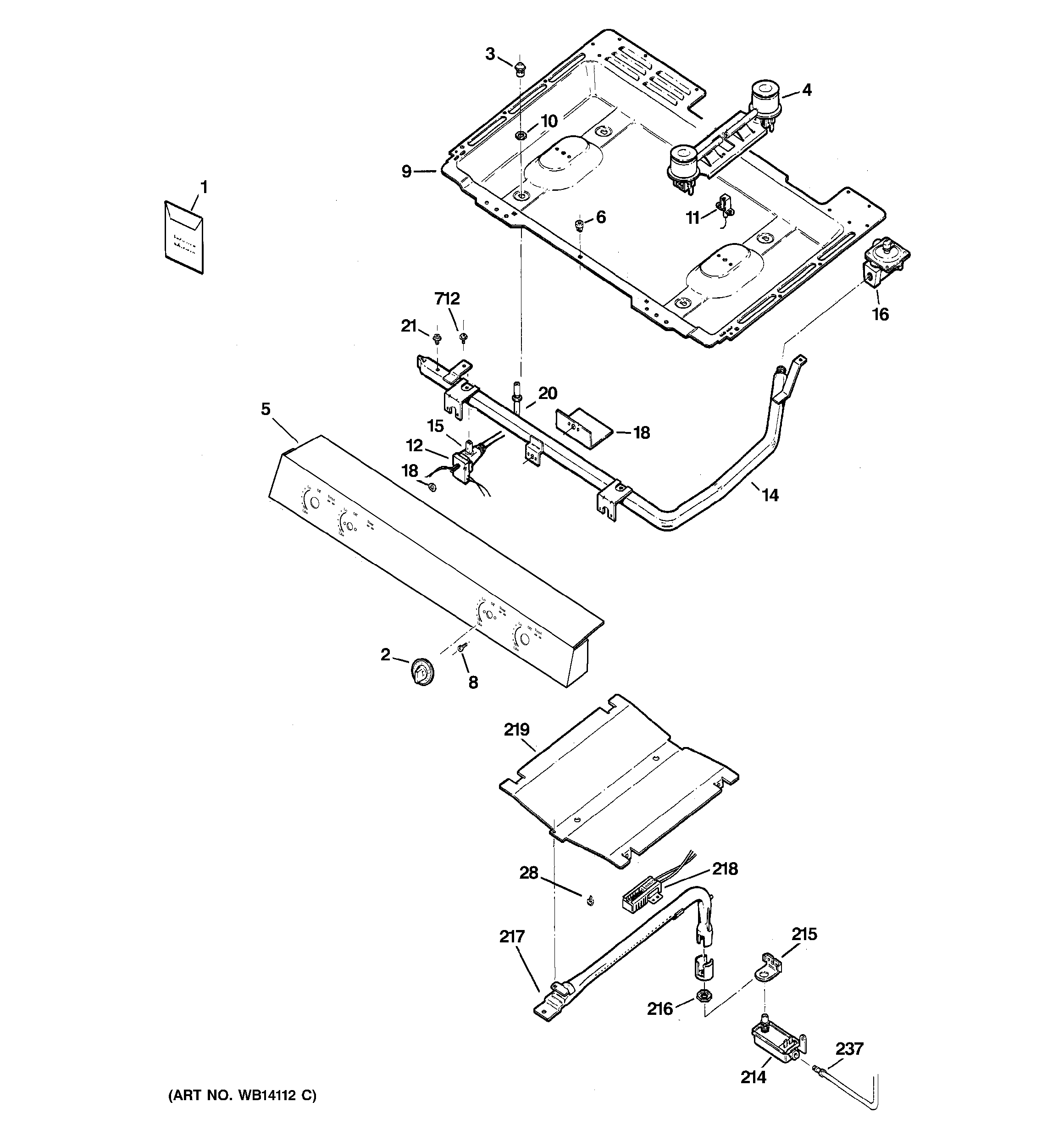

JGBS17DEM2WW GAS & BURNER PARTS

Products

Position	Product
1	GEN 49-85135
1	WB28K10564 GE Oven Conversion Kit Assembly
1	GEN 31-21321
2	WB03K10218 GE Oven Control Knob
2	WB03K10216 GE Oven Manifold Knob
3	WB28K10376 GE Oven Orifice
3	WB28K10033 GE Oven Orifice Spud
4	WB16K10026 GE Oven Range Cooktop Double Burner
5	GEN WB36K10675
5	GEN WB36K10677
6	GEN WB02K0009
8	WB01K10002 GE Oven Screw 8-32
9	WB64K10001 GE Oven Burner Box
10	GEN WB01K0004
11	WB18X26988 GE Oven Top Spark Electrode
12	WB24K10017 GE Oven Burner Switch
14	GEN WB28K10251
15	140 BURNER VALVE
16	PRESSURE REGULATOR
18	WB2K24 GE Oven Valve Cover
20	WB28K10012 GE Oven Rear Burner Tube
20	WB28K10009 GE Oven Burner Tube
20	WB28K10011 GE Oven Rear Burner Tube
20	WB28K10010 GE Oven Front Tube Assembly
21	WB01K10066 GE Oven Screw 8 HD 10-32
28	WB1X1293 GE Oven Screw
214	WB19K31 GE Gas Range Oven Cooktop Safety Valve
215	WB2K65 GE Oven SAF Valve Bracket
216	GEN WB01K0006
217	GEN WB16K10065
218	WB13K21 GE Oven Igniter with 7 Leads
219	OVEN DEFLECTOR
237	WB28K147 GE Oven Tube Valve Supply
712	WB1K37 GE Oven Screw
