JGBS18DEN6BB CONTROL PANEL & COOKTOP

JGBS18DEN6BB CONTROL PANEL & COOKTOP

Written by

in

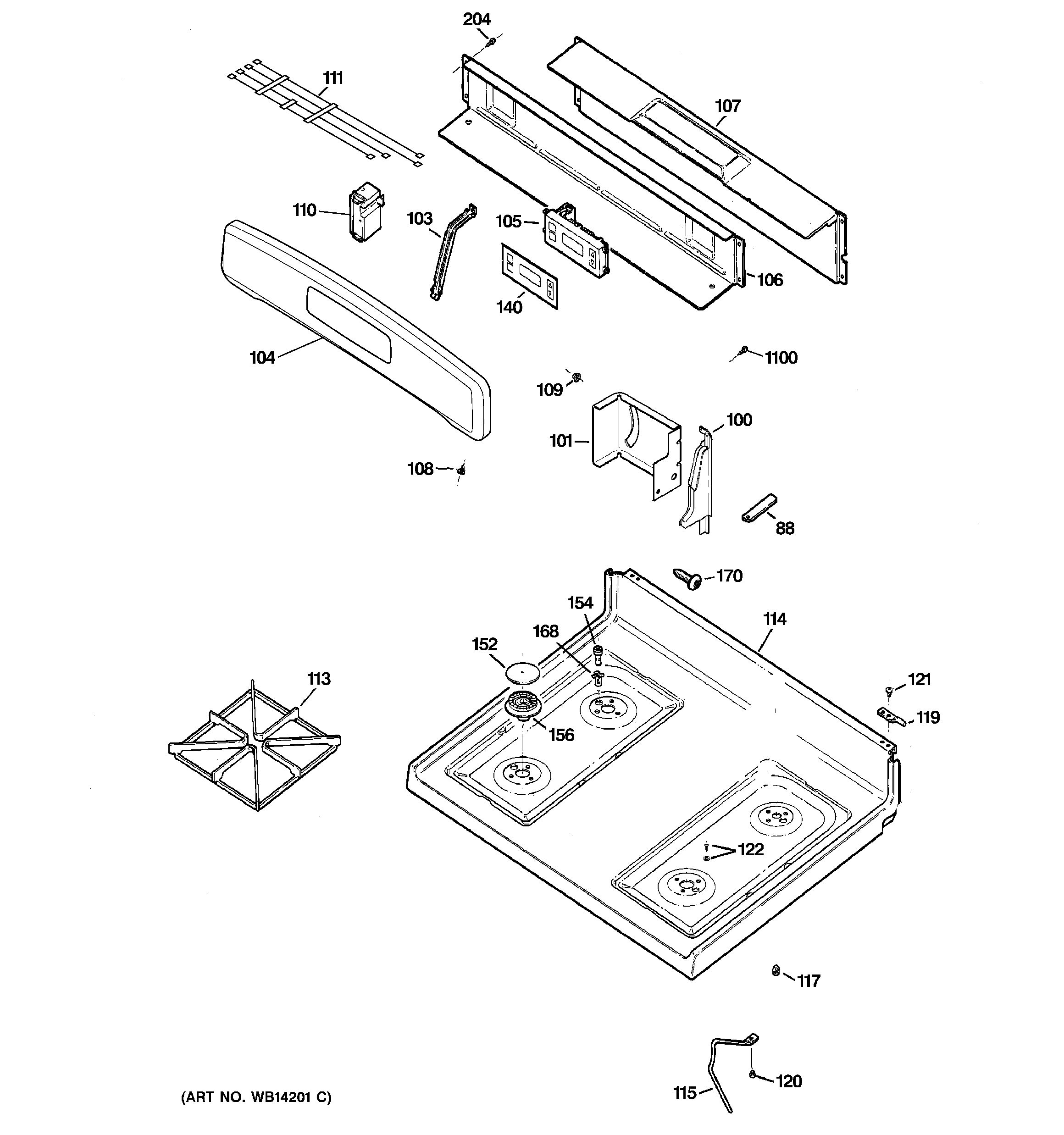

JGBS18DEN6BB CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0062
100GEN WB07K10260
100GEN WB07K10261
101WB37K10003 GE Cooktop Right Bracket
101WB37K10004 GE Cooktop Left Bracket
103GEN WB02K10155
104GEN WB36K10651
105WB27K10356 GE Oven Control Assembly
106GEN WB34K10093
107GEN WB34K10094
108WB1X5364 GE Oven Mounting Screw
109GEN WB01X5743
110WB13K10029 GE Oven Spark Module
111GEN WB18K10039
113WB31K10033 GE Oven Burner Grate
114GEN WB62K10063
115WB02K10276 GE Cooktop Support
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122WB01K10106 GE Oven Circuit Screw
140WB27K10255 GE Oven Overlay T09
152WB29K10001 GE Oven Burner Cap
154GEN WB13K10021
156WB16K10055 GE Oven Burner Base
168WB01K10112 GE Range Oven Electrode Clip
170GEN WB01X5716
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
